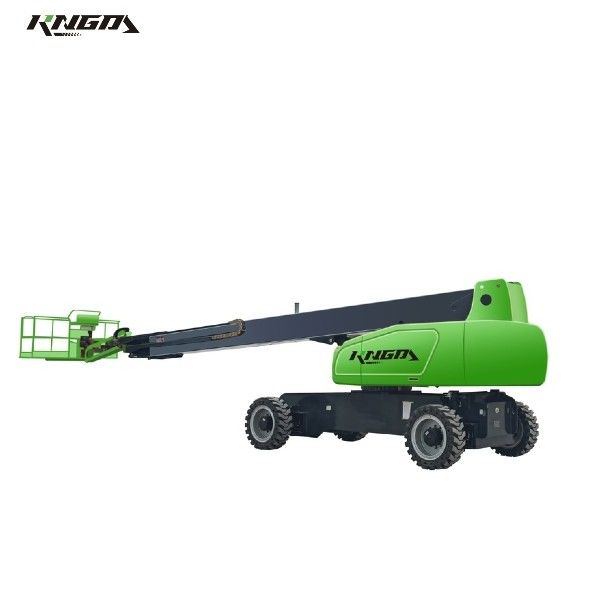

40.4m Working Height Diesel Telescopic Boom Lift Hydraulic

40.4m Working Height Diesel Telescopic Boom Lift Hydraulic

Products - Diesel Telescopic Boom Lift
  • High Light

    40.4m Diesel Telescopic Boom Lift Hydraulic

    ,

    Diesel Telescopic Boom Lift Hydraulic

    ,

    40.4m Boom Lift

  • Platform Height
    38m
  • Platform Size
    2.44 M X 0.91 M
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB38J
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

40.4m Working Height Diesel Telescopic Boom Lift Hydraulic

  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
  • 40.4m Working Height Diesel Telescopic Boom Lift Hydraulic
Get Price Contact Now



Diesel Telescopic Boom Lift Working Height 40m





Product Features

1. Medium-sized diesel telescopic boom lift is a type of heavy equipment that is used for reaching high places.

2. It has a large telescopic arm that can extend vertically and horizontally, allowing it to reach different heights and distances.

3. It is powered by a diesel engine, which provides the necessary power to operate the lift.

4. This type of boom lift is designed to be sturdy and strong, capable of carrying heavy loads and multiple operators.

5. It is commonly used in construction, maintenance, and other industries where access to all areas is required.



40.4m Working Height Diesel Telescopic Boom Lift Hydraulic 0

Model TB38J
Size Metric
Maximum Working Height 40.4m
Maximum Platform Height 38.4m
Maximum Horizontal Outreach 24m

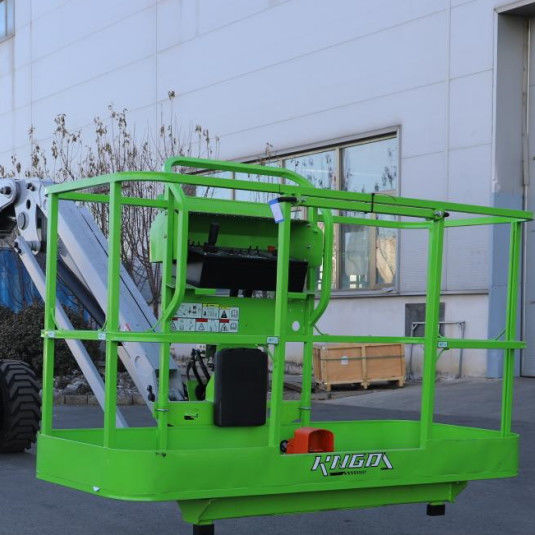

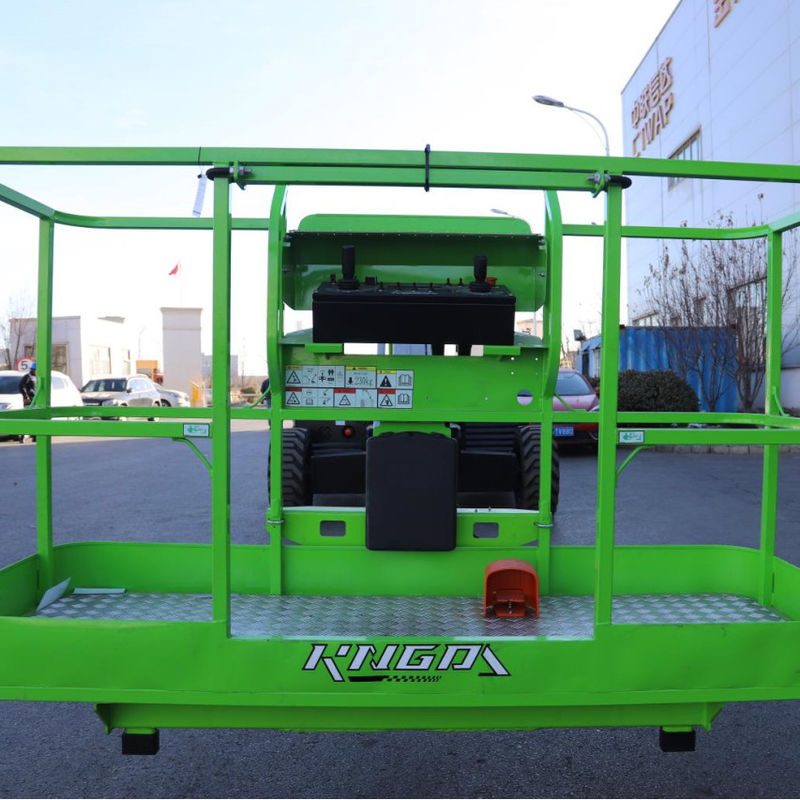

Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) not able to stow/14.1m
Width(axle retracted/extended) 2.5m/4.1m
Height-Stowed 3.08m
Wheelbase 3.96m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius-inside(axle retracted/extended) 3.83m/2.69m
Turning Radius-outside(axle retracted/extended) 6.24m/6.5m
Drive &Steer Mode 4×4×4

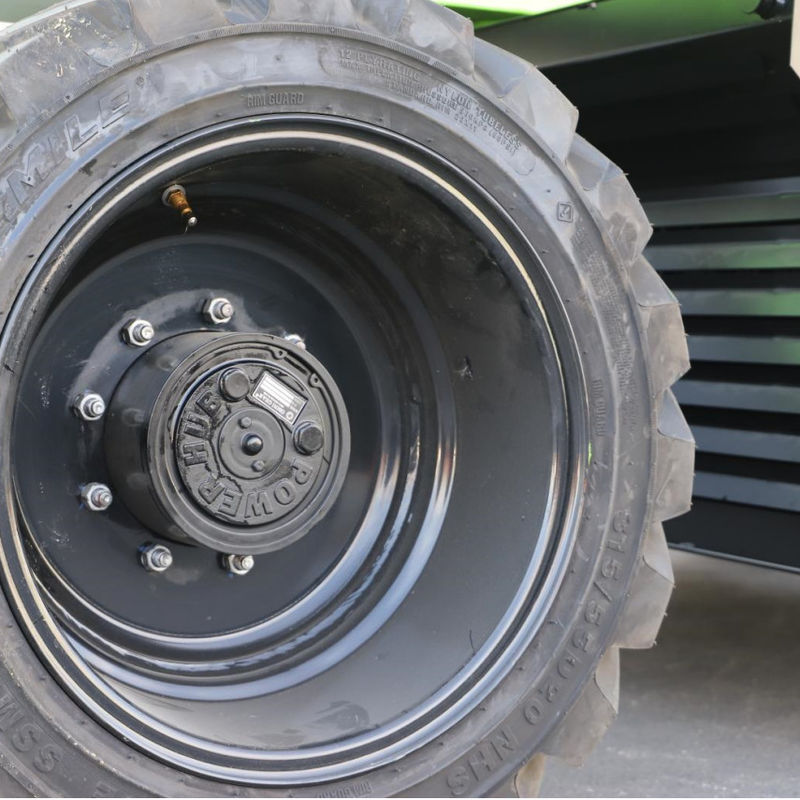

Tyre Size 385/65-22.5
Power
Power Supply 55Kw@2400rpm~2600rpn
Fuel Tank Capacity 150L
Hydraulic Oil Tank Capacity 250L
Control Voltage 12V
Weight
Machine Weight 21800Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
