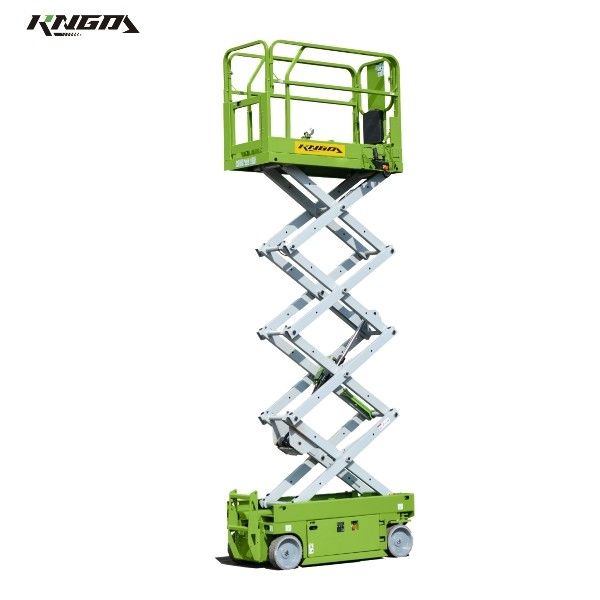

Portable Mobile Hydraulic Lift Platform Height 6M Capacity 230kg Scissor Lift AWP

Portable Mobile Hydraulic Lift Platform Height 6M Capacity 230kg Scissor Lift AWP

  • High Light

    mobile hydraulic lift platform

    ,

    mobile hydraulic lift

    ,

    portable hydraulic lift

  • Power Supply
    DC 24V
  • Safety Features
    Emergency Stop Button, Overload Protection, Tilt Protection
  • Platform Height
    6m
  • Power Source
    Battery
  • Place of Origin
    CHINA
  • Brand Name
    KINDA
  • Certification
    CE
  • Model Number
    JDS0607HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiation
  • Packaging Details
    EXPORT PACKING
  • Delivery Time
    60 DAYS
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Portable Mobile Hydraulic Lift Platform Height 6M Capacity 230kg Scissor Lift AWP

  Platform Height 6M Capacity 230kg Self-propelled Scissor Lift


   Product Main Features


  1. To raise your expectations, the entire machine has undergone electrophoresis treatment to ensure unparalleled anti-corrosion performance, surpassing the competition.
  2. Experience increased vertical reach and increased working height, all achieved with the same number of wishbones.
  3. Revolutionize your travel with electric drive technology that ensures seamless movement and enhances braking capabilities for a smoother journey.
  4. Unleash the full potential of your equipment with a dual-load system strategically designed to maximize efficiency for every operation.
  5. Simplify your loading and unloading process through well-designed standard forklift holes and dedicated lifting points.
  6. Through the carefully designed central fork arm, the stability and comfort of the platform reach new heights.
  7. The key components are made of high-strength steel, which ensures the service life and durability of the product and enhances the overall strength of the product.

Portable Mobile Hydraulic Lift Platform Height 6M Capacity 230kg Scissor Lift AWP 0



Model

JDS0607HM

Size

Metric

A) Maximum Working Height

7.9m

B) Maximum Platform Height

5.9m

Platform Height-Stowed

1.1m

C) Platform Length

1.7m

Length Extended

2.56m

D) Platform Width

0.76m

Rail Height

1.1m

E) Height-Stowed (Rail unfolded)

2.2m

Height-Stowed (Rail folded)

1.78m

F) Length-Stowed

1.84m

Width

0.81m

Wheelbase

1.32m

Ground Clearance (Pothole protection lay down)

0.02m

Ground Clearance Center

0.08m

Performance



Platform Occupancy(indoor/outdoor)

2/1

Wind Speed

12.5m/s

Platform Capacity

230Kg

Extension Platform Capacity

100Kg

Drive Speed-Stowed

3.5Km/h

Drive Speed-Raised

0.8Km/h

Grade ability-Stowed

25%

Min Turning Radius-inside

0m

Min Turning Radius-outside

1.5m

Raise/Lower Speed

25s/35s

Controls

Proportional control

Drive

2-Front wheels

Tyre Size

0.323mx0.1m

Power



Power Supply

24V DC 4x6V Battery

Hydraulic Reservoir Capacity

8L

Sound &Vibration



Sound Pressure Level(ground)

<70dB

Sound Pressure Level(platform)

<70dB

Vibration

2.5m/s²

Machine Weight

1290kg

Standards Compliance

EN280 GB/T 25849



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Automatic braking system Solid traceless tyres
Folding fence platform Safety maintenance-bracing piece Smart charger
Platform self-locking door 4X2 Double frontal wheel electric drive Horn
Charging protection system Maintenance Free battery Stroboscope light
Fault diagnosis system Standard transport forklift holes Tilt protection system
Oil tube explosion-proof system Emergency stop system



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.











Company Profile




JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
