63m Aerial Lift Platform For Sale Working Height Diesel Telescopic Manlift
-
High Light
aerial lift platform
,aerial lifts for sale
,63m aerial lift platform
-
Platform Height61m
-
Turntable Rotation360 Degrees
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberTB61J
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED

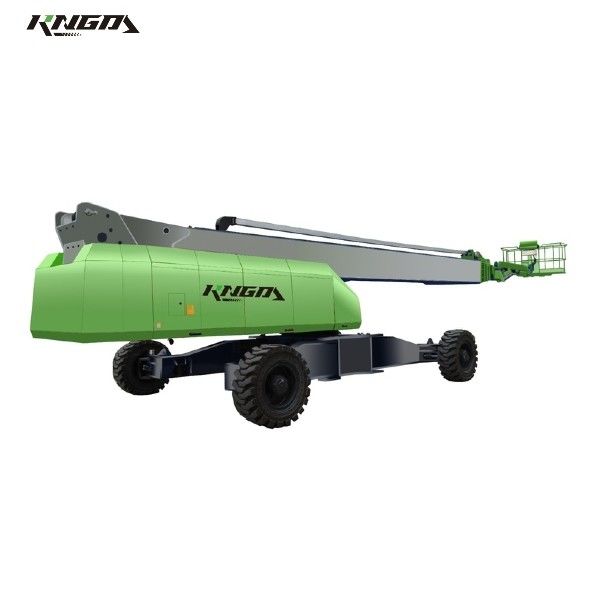

63m Aerial Lift Platform For Sale Working Height Diesel Telescopic Manlift
Diesel Telescopic Boom Lift Working Height 63m
Product Features
1. A medium and large diesel telescopic boom lift is a type of machinery used to lift heavy objects or people to high places.
2. It is powered by diesel fuel and has a telescopic boom that can extend and retract to reach different heights.
3. This boom lift is of medium to large size, so it is suitable for tasks that require lifting to higher heights.
4. It is sturdy and reliable, designed for heavy-duty use. With its diesel engine, it provides a strong and efficient power source.
5. This type of boom lift is commonly used in construction sites, maintenance work, or any task that requires working at elevated heights.
| Model | TB61J |
| Size | Metric |
| Maximum Working Height | 63m |
| Maximum Platform Height | 61m |
| Maximum Horizontal Outreach | 26m |
| Platform Size | 2.44X0.91m |
| Length-Stowed(jib stowed/extended) | 16.1m/21.65m |
| Width(axle retracted/extended) | 2.5m/5.1m |
| Height-Stowed | 3.4m |
| Wheelbase | 5.6m |
| Ground Clearance | 0.38m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/300Kg |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 135° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 4.2Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 45% |
| Maximum Working Slope | 5° |
| Turning Radius-inside(axle retracted/extended) | 7.6m/2.69m |
| Turning Radius-outside(axle retracted/extended) | 10m/7.07m |
| Drive &Steer Mode | 4×4×4 |
| Tire Size | 445/65-24 |
| Power | |
| Power Supply | 74Kw@2200rpm |
| Fuel Tank Capacity | 200L |
| Hydraulic Oil Tank Capacity | 300L |
| Control Voltage | 24V |
| Weight | |
| Machine Weight | 28500Kg |
| Standard Compliance | |
| EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
