AWP Self Propelled Single Man Lift 2WD Platform Height 12m Wheelbase 1.87m

AWP Self Propelled Single Man Lift 2WD Platform Height 12m Wheelbase 1.87m

  • High Light

    AWP self propelled single man lift

    ,

    self propelled single man lift 2WD

    ,

    2WD Platform Wheelbase 1.87m

  • Control System
    Proportional Control
  • Platform Size
    2.5m X 1.2m
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    JDS1212HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

AWP Self Propelled Single Man Lift 2WD Platform Height 12m Wheelbase 1.87m



Self-propelled Scissor Lift Platform Height 12m Wheelbase 1.87m





Product Features



1. The innovative self-moving scissor lift is a multifunctional device engineered to hoist individuals or items to elevated positions with ease.
2. Boasting a distinctive scissor-style lifting system, it provides a secure platform that ascends and descends smoothly and steadily.
3. With the option of wheels or tracks for independent movement, this machinery ensures seamless navigation and features cutting-edge safety precautions like protective rails and emergency halting mechanisms for user safety.
4. Demonstrating an enhanced design, this version showcases durable steel parts, improved operational effectiveness, simplified maintenance protocols, heightened lifting capacity, decreased noise emissions, exceptional agility, and the capability to operate effortlessly in compact spaces.

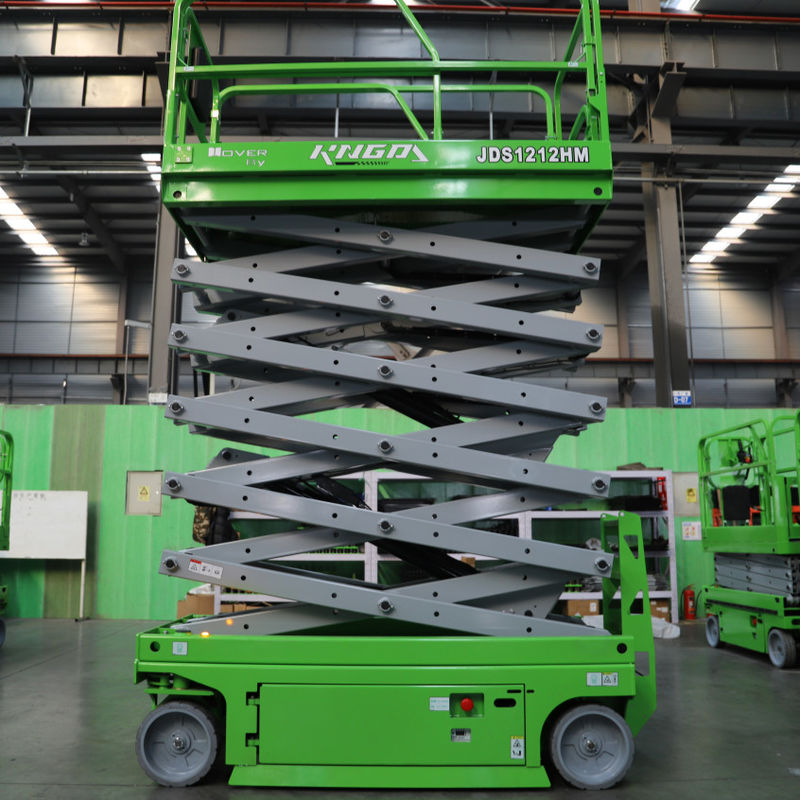

AWP Self Propelled Single Man Lift 2WD Platform Height 12m Wheelbase 1.87m 0



Model JDS1212HM
Size Metric
Maximum Working Height 14.0m
A)Maximum Platform Height 12.0m
B)Platform Height-Stowed 1.5m
C) Platform Length 2.3m
Length Extended 3.2m
D) Platform Width 1.14m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.60m
Height-Stowed (Rail folded) 2.07m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Performance
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 320Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 64s/67s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2900kg
Standards Compliance EN280 GB/T 25849



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn

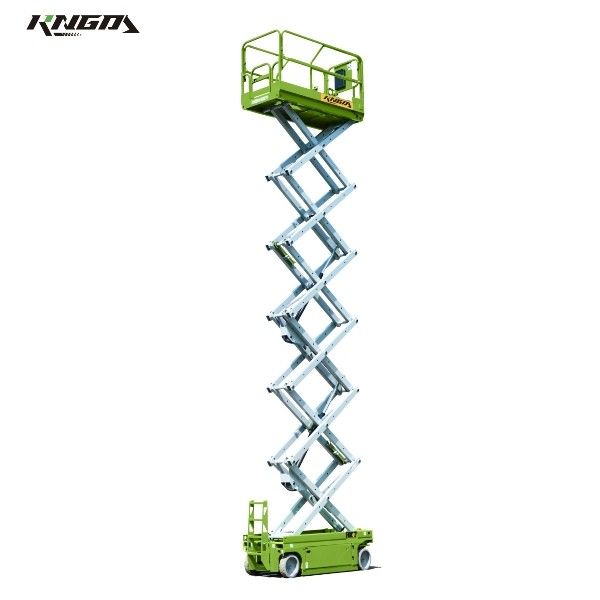

AWP Self Propelled Single Man Lift 2WD Platform Height 12m Wheelbase 1.87m 1



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.









Company Profile




JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
