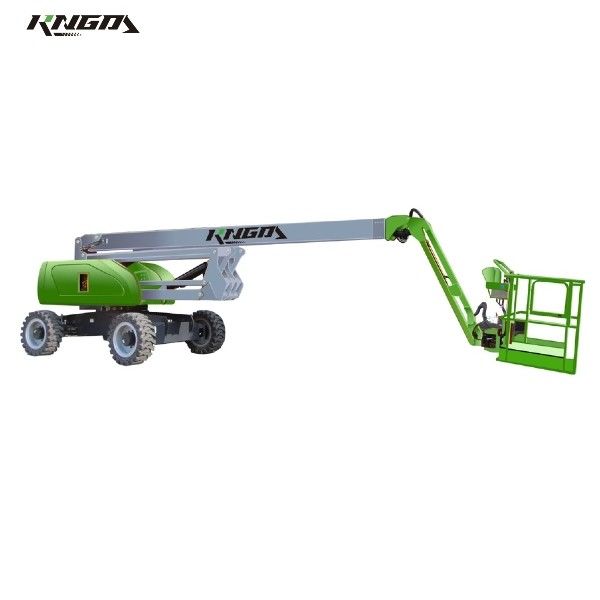

28m Working Height Hydraulic Articulating Boom Lift Platform

28m Working Height Hydraulic Articulating Boom Lift Platform

  • High Light

    Hydraulic Articulating Boom Lift

    ,

    Articulating Boom Lift Platform

    ,

    28m Boom Lift

  • Maximum Working Height
    28m
  • Platform Height
    26m
  • Power Source
    Diesel
  • Type
    Articulating Boom Lift
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB26J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

28m Working Height Hydraulic Articulating Boom Lift Platform



Diesel Articulating Boom Lift Maximum Working Height 28m





Product Features



1. The Diesel Articulating Boom Lift is a versatile piece of equipment used in construction or maintenance work.

2. It has a diesel engine that provides power for lifting and moving the platform.

3. The boom on the lift can articulate or bend, allowing it to reach high and difficult-to-reach places.

4. The lift also has an extendable arm, providing additional reach.

5. It is equipped with a spacious platform that can accommodate multiple people or heavy objects.

6. The lift is easy to control and has safety features like guardrails and emergency stop buttons.

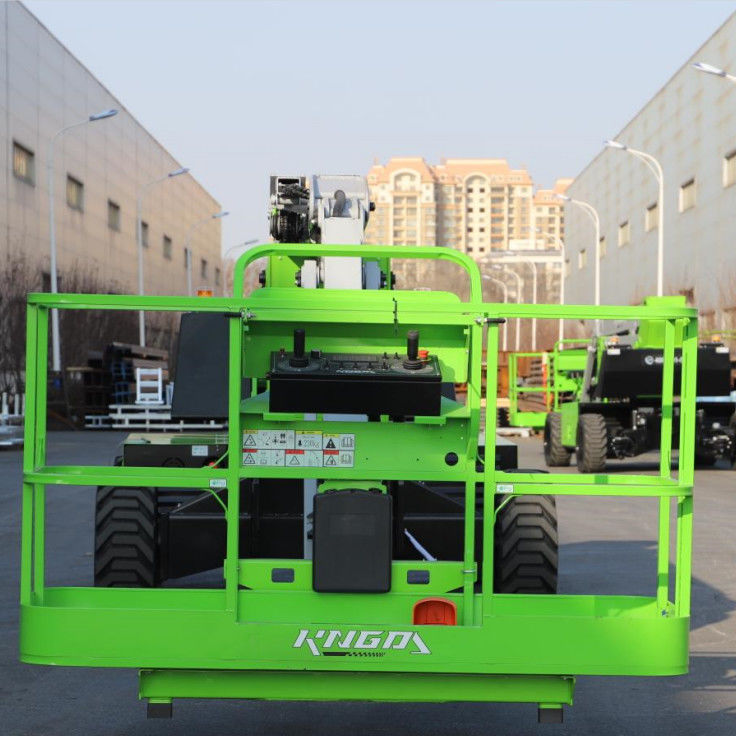

28m Working Height Hydraulic Articulating Boom Lift Platform 0

Model AB26J
Size Metric
Maximum Working Height 28m
Maximum Platform Height 26m
Maximum Horizontal Outreach 17.28m
Maximum Up & Over Clearance 10.2m
Platform Size 2.44X0.91m
B)Length-Stowed 11.7m
Width-Stowed 2.58m
A)Height-Stowed 2.97m
Wheelbase 3m
Ground Clearance 0.43m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Turntable Tail Swing 0.96m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 40%
Maximum Working Slope
Turning Radius (inside) 2.6m
Turning Radius (outside) 6.1m
Drive & Steer Mode 4X4X2
Tire Size 385X65-22.5
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 17000Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.

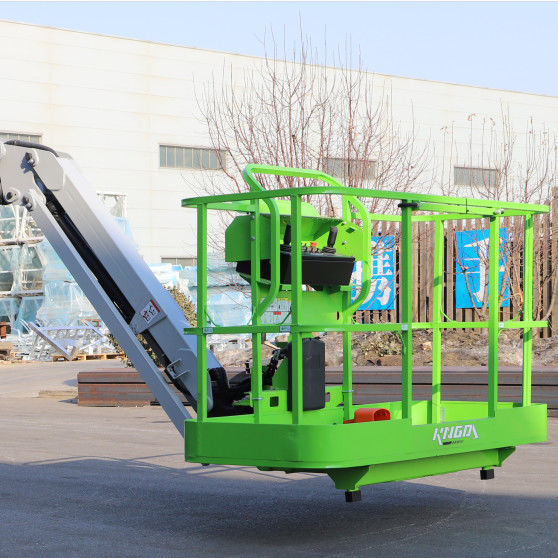

28m Working Height Hydraulic Articulating Boom Lift Platform 1
