| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS1012HM |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Color: | Green | Working Height: | 12m |
|---|---|---|---|
| Width: | 1.14m | Max Drive Speed: | 3.5km/h |
| Capacity On Extension: | 120kg | Turning Radius(inside/outside): | 0/2.1m |
| Tire: | 40.5*12,7m | Battery: | 24V/260Ah |
| Hydrualic Oil Tank Capacity: | 25L | Weight: | 3045kg |
| High Light: | sky cissor lift,hydraulic aerial platform |
||

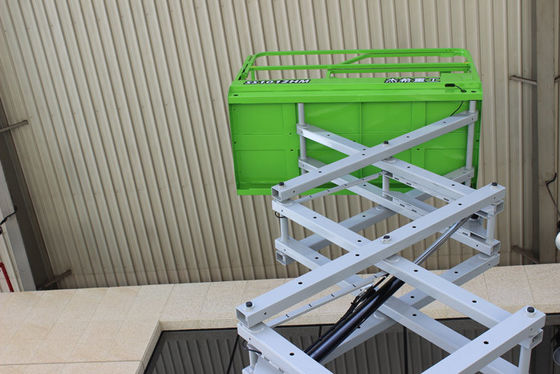

10m Hydrualict Scissor Lift Platform For Airport Construction Maintenance
FEATURES:
1: Double loading system, using efficiency of equipment is much improved.
2: Forklift holes on side and professional lifting point, convenient for various fork-lift or other handling equipment. Centered scissor arm design, the comfort and stability of platform is improved.
3: Higher working height with same numbers of scissor arms.
Technical Parameters
| Model | SS1012HM |
| Working Height | 12m |
| Platform Height | 10m |
| Platform Length | 2.27m |
| Platform Extension | 0.9m |
| Platform Width | 1.14m |
| Height-folded | 1.94m |
| Wheelbase | 1.87m |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Extension platform capacity | 120kg |
| Turning Radius(Inside/outside) | 0/2.1m |
| Tire | 40.5x12.7cm |
| Engine | Bettery 24V/225Ah |
