| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | AB14J |
| Minimum Order Quantity: | 1 unit |
| Price: | US$80000-US$140000 |
| Packaging Details: | packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 units per year |
| Feature: | Articulated Boom Lift | Lift Drive/Actuation: | Hydraulic |
|---|---|---|---|
| Man Load: | 2 | Platfrom Capacity: | 230kg |
| Power: | Diesel Engine | Weight: | 6500kg |
| Application: | Factory Building, Shipping Building Etc. | Color: | Light Green Gray / As Per Your Demand |
| Max.working Height: | 16m | Max.Lifting Height: | 14m |
| High Light: | 16m Articulated Boom Lift,52ft Articulated Boom Lift,230kg Capacity Articulated Boom Lift |
||

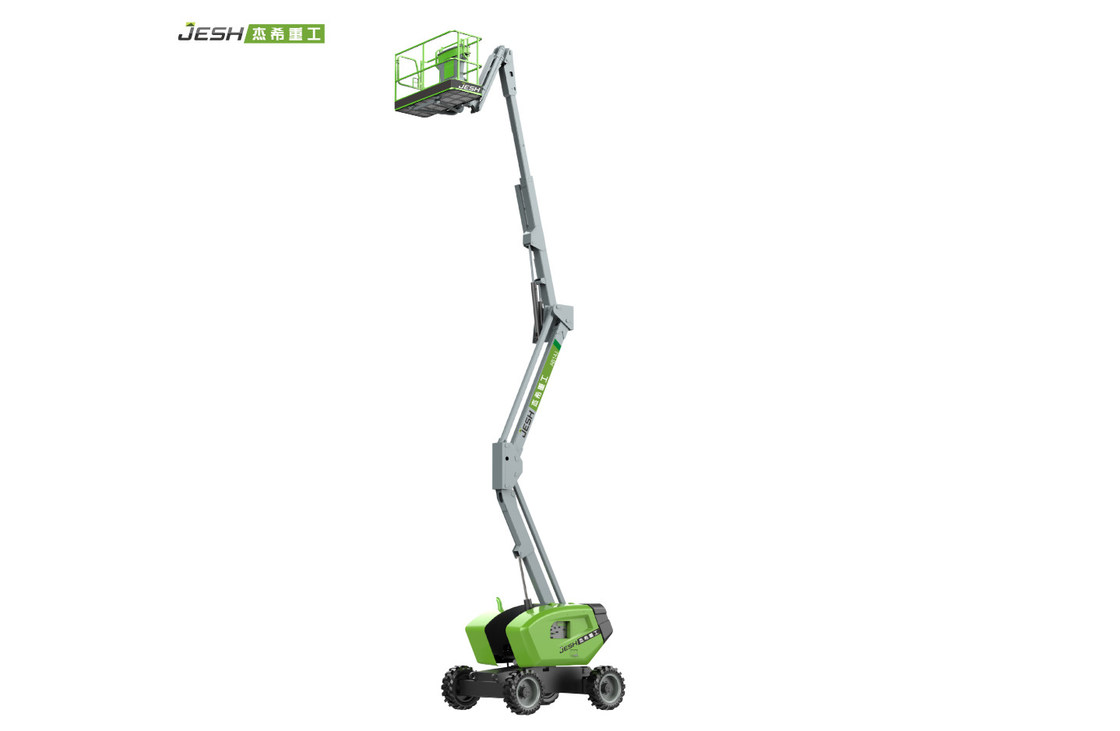

Elevating working height 52ft articulated boom lift with 230kg capacity
JESH articulating boom lift provides working height from 14m-30m ,which is designed for outdoor use on rough ground.with a hydraulic boom and a platform at the end to raise and lower people. Our engine powered articulated boom lifts give you the reach and power necessary for the best outdoor performance.
The machine travels on rough ground smoothly with superb ground clearance and option of 2 or 4 wheels drive.It enables you to reach the working point precisely with industry- leading working height and superb capabilities.
With superb “up and over” capabilities and excellent locating function, JESH articulating boom lift is suitable for working space which is hard to reach. It helps you to reach the working point freely, which improves working efficiency greatly.
Technical Parameters
| Model | AB14J |
| Dimentions | Metric |
| Max Working Height | 15.9m |
| Max Platform Height | 13.9m |
| Max Horizontal Outreach | 8.6m |
| Extendable depth downward | 1.0m |
| Platform Width | 0.76m |
| Platform Length | 1.80m |
| Height-Stowed | 2.27m |
| Length-Stowed | 6.5m |
| Length-Transportation | 5.5m |
| Width | 2.1m |
| Wheelbase | 2.05m |
| Ground Clearance-Center | 0.33m |
| Productivity | |
| Load capacity(unrestricted) | 230kg |
| Min. Turning Radius(inside/outside) | 3.3m/4.4m |
| Turntable Swing | 355° |
| Platform Rotation | 160° |
| Jib Rotation | 135° |
| Drive Speed(stowed) | 5.4km/h |
| Drive Speed(extended) | 1.1km/h |
| Control | DC12V Proportional |
| Drive type | 4 Wheels |
| Max. Gradeability | 40% |
| Tire-solid foam filled( Dia.×Width) | 835×290 |
| Power | |
| Engine | D2011L03I |
| Fuel | Diesel |
| Hydraulic Oil Tank Capacity | 120L |
| Fuel Tank Capacity | 70L |
Long term warranty: 2 years for the whole machine.5 years for the main structural,
Engineers door to door service if with bulk orders, Also We can provide you online support.
Hunan JESH Heavy Industry Co.,Ltd. is Chinese professional manufacturer of MEWPs(Mobile Elevating Work Platform) headquartered in Changsha city, Hunan, China where is heavy machinery manufacturing base of China. JESH is specialized in R&D,production,sales and after sales service of heavy machinery with MEWPs as main product.
line includes self-propelled scissor lift,self-propelled telescopic boom lift,self-propelled articulating boom lift, spider lift, vertical lift, telehandler and other products which covers working height from 4M to 46M, now JESH AWPs are widely used in municipal plan and garden,energy and chemical industry,warehouse and logistics,construction and building maintenance,plant and stadium,airport and seaport in mainland of China, HK,Taiwan,Singapore,Malaysia,UAE and Saudi Arabia.
