| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | SS1012HM |
| Minimum Order Quantity: | 1 unit |
| Price: | US$10000-US$18000 |
| Packaging Details: | MEWPs 10m hydraulic scissor lift for factory building will be packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 units per month |
| Feature: | Self-propelled | Lift Drive/Actuation: | Hydraulic |
|---|---|---|---|
| Platform Height: | 8m | Platfrom Capacity: | 450kg |
| Power: | Battery | Weight: | 1500kg |
| Application: | Factory Building, Shipping Building, Airport, Seaport Etc. | Color: | Light Green Gray / As Per Your Demand |
| High Light: | one man scissor lift,electric man lifts |
||

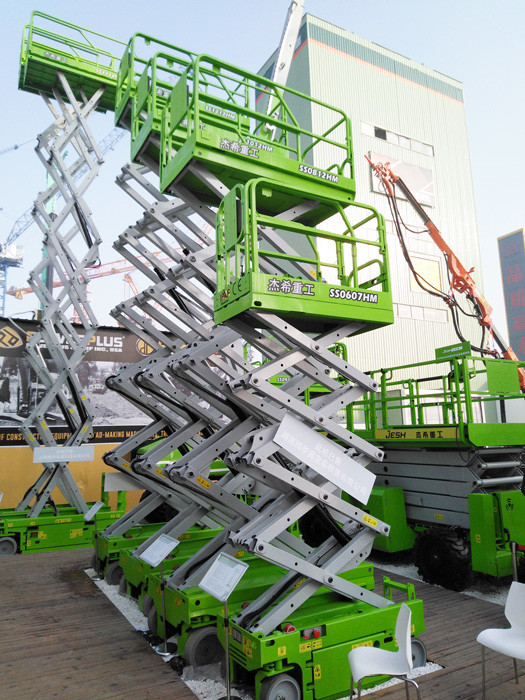

8m Platfrom Height Compact Scissor Lift For Facotory Maintenance
JESH self-propelled scissor lift covers working height from 6m-15m , which is suitable for indoor or outdoor use on solid flat ground.
The product is compact in structure and flexible to operate. Equipped with perfect security sensor, it delivers lower noise, superb operability, which is ideal for narrow working conditions requesting higher flexibility. To strenthen design, high strength steel is used for key structures,
Technical Parameters
| Model | SS0812HM |
| Dimentions | |
| Working height | 10.1m |
| Platform height | 8.1m |
| Max drive speed | 8.1m |
| Platform length | 2.27m |
| Platform length-extended | 3.17m |
| Platform extendable | O.9m |
| Platform width | 1.14m |
| Height-rails unfolded | 2.35m |
| Height-rails folded | 1.82m |
| Width | 1.14m |
| Length | 2.47m |
| Wheelbase | 1.87m |
| Ground clearance-stowed | 10cm |
| Ground clearance-raised | 2cm |
| Productivity | |
| Platform capacity | 450kg |
| Capacity on extension | 120kg |
| Drive speed | 3.2km/h |
| Gradeability | 25% |
| Raise/lower speed | 32/42sec |
| Turning radius(inside/outside) | 0/2.1m |
| Tire | 38.1x 12.9cm |
| Power | |
| Battery | 24V/225Ah |
| Hydraulic oil tank capacity | 10L |
| Weight | 1500kg |
