| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | AB14J |
| Minimum Order Quantity: | 1 unit |
| Price: | US$80000-US$140000 |
| Packaging Details: | packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 units per year |
| Feature: | Self-propelled | Power: | Diesel Engine |
|---|---|---|---|
| Weight: | 7989kg | Platform Height: | 16m |
| Application: | Factory Building, Shipping Building Etc. | Color: | Light Green Gray / As Per Your Demand |
| Lift Drive/Actuation: | Hydraulic | Platfrom Capacity: | 700kg |
| High Light: | mobile hydraulic scissor lift,mobile scissor lift |
||
AB14J Rough Terrian Scissor Lift Ectric Battery Charger And Platform 16m Height

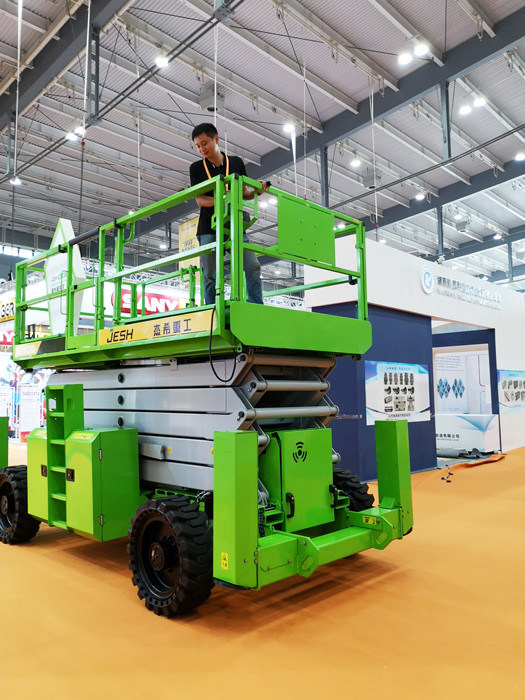

Rough terrain scissor lift
JESH rough terrain scissor lift provides working height from 16m-25m , designed for indoor or outdoor use to handle rough terrain.
With extra large platform, it is able to load with more workers and tools.It is also equipped with powerful 4×4 wheels drive and oscillating axle design which provide superb gradeability and terrain capabilities.This series delivers remarkable lifting speed, extra large platform, flexible operability and superb load capability etc, which enables the machine to reach the working point precisely and finish the task effectively.
It is ideal for construction site or extremely terrible working conditions to improve the working efficiency.
Technical Parameters
| Model | RS1623D |
| Dimentions | Metric |
| Working Height | 18m |
| Platform Height | 16m |
| Platform Length | 3.98m |
| Platform Length-Extended | 6.57m |
| Platform Extension | 3.2m |
| Platform extension(front/rear) | 1.52m/1.22m |
| Height -Stowed | 1.83m |
| Width | 2.27m |
| Length(with/no outrigger) | 4.88m/3.98m |
| Wheelbase | 2.86m |
| Min. Ground Clearance | 0.36m |
| Productivity | |
| Platform capacity | 680kg |
| Extension platform capacity | 230kg |
| Drive Speed | 5.6km/h |
| Gradeability | 40% |
| Raise/Lower Speed | 55/49sec |
| Turning Radius(Inside/outside) | 2.16m/5.33m |
| Tire | 84x30cm |
| Power | |
| Engine | Diesel Engine |
| Fuel | 110L |
| Hydraulic Oil Tank Capacity | 110L |
| Fuel Tank Capacity | 7995kg |
