AWP Mobile 6m hydraulic small Scissor Lift with 230kg capacity

Basic Information
Place of Origin: China
Brand Name: JESH
Certification: CE
Model Number: SS0607EM
Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Regular factory packing
Delivery Time: 45 days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 4000 Units per month
Contact Now
Color: Green Working Height: 7.9m
Platform Height: 5m Width: 0.74m
Length: 1.84m Capacity: 230KG
Max.Lifting Height: 5.9m Extension Platform Capacity: 120kg
Materials: Anticorrosion Steel Structure Product Name: Small Hydraulic Scissor Lift Platform
High Light:

small platform lift


scissor man lift


hydraulic manlift

6m hydraulic small Scissor Lift

small scissor lift covers working height from 2m to 7m which is suitable for indoor house maintenance and it can be drive into elevator. It is very convenient work in a narrow working space.


Technical Parameters

Model SS0607EM
Dimentions & Specifications
Max.Working height 7.9m
Max.Lifting Platform height 5.9m
Max drive height 5.9m
Platform length 1.63m
Platform length-extended 2.53m
Platform extendable 0.9m
Platform width 0.74m
Height-rails unfolded 2.20m
Height-rails folded 1.79m
Width 0.76m
Length 1.84m
Wheelbase 1.32m
Ground clearance-stowed 7cm
Ground clearance-raised 2cm
Platform capacity 230kg
Capacity on extension 100kg
Drive speed 3.2km/h
Gradeability 25%
Raise/lower speed 16/26sec
Turning radius(inside/outside) 0/1.5m
Tire 32.3x 10cm
Battery 24V/225Ah
Hydraulic oil tank capacity 10L
Weight 1500kg

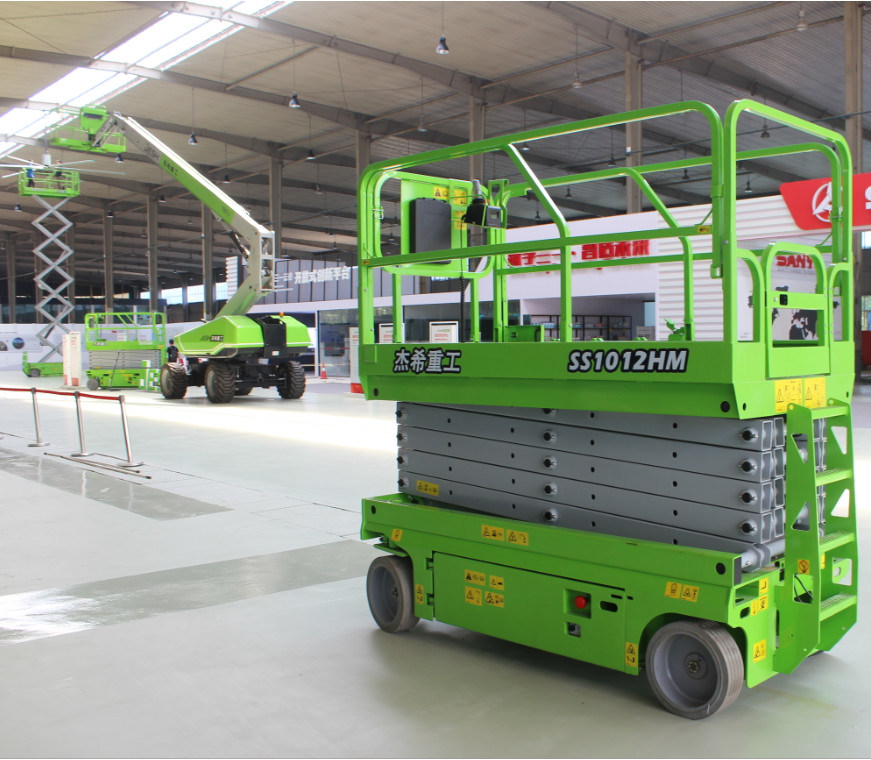

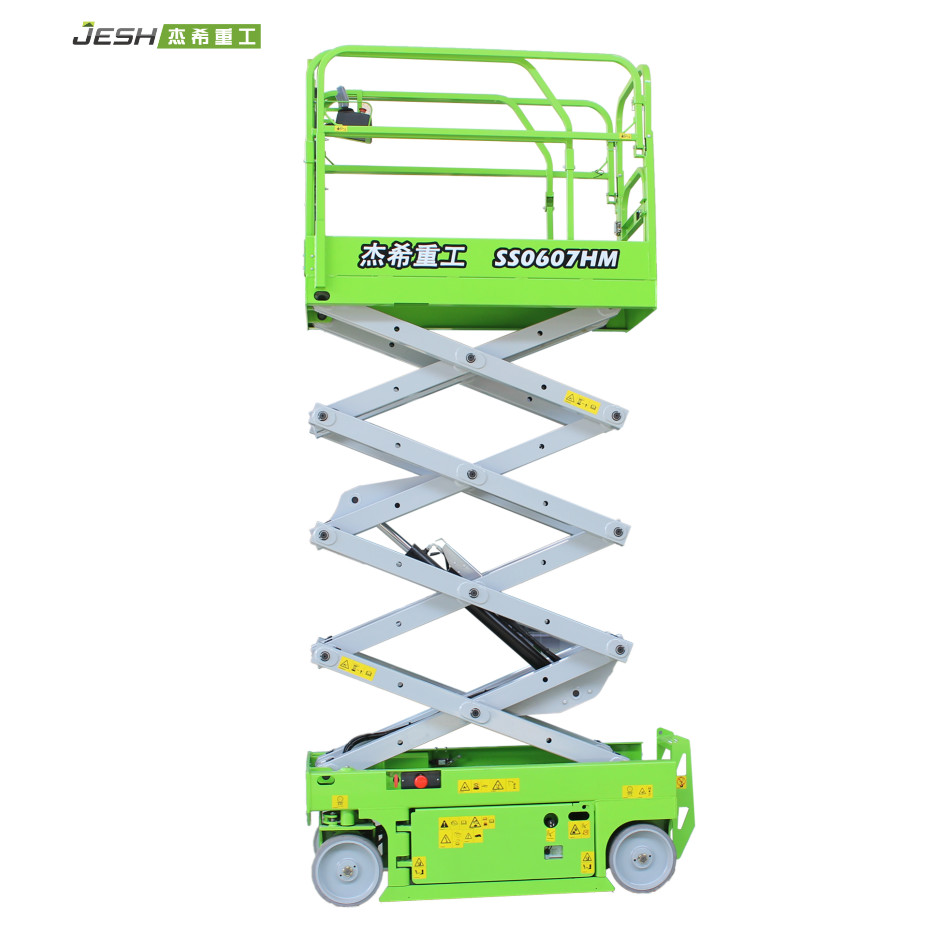

Product pictures

AWP Mobile 6m hydraulic small Scissor Lift with 230kg capacity


Company Information


Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
