| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | RS1623DS |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 4000 Units per month |
| Working Height: | 18m | Platform Height: | 16m |
|---|---|---|---|
| Weight: | 7995kg | Table Size: | 84*30cm |
| Power: | Diesel Engine | Color: | Green |
| Capacity: | 700kg | Gradeability: | 50% |
| Material: | High Impact Steel | Overall Dimensions: | 4.8m*2.3m*3.15m |
| Platform Size: | 3.98m*1.83m | Engine: | Deutz 36KW |
| High Light: | one man scissor lift,electric man lifts |
||

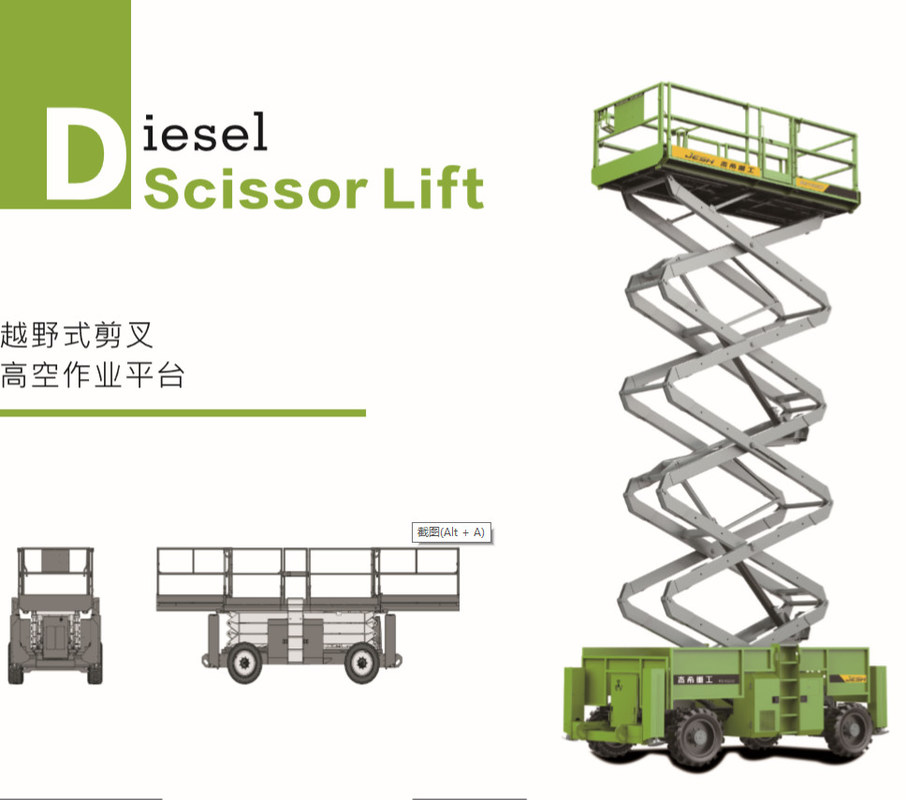

Diesel Scissor Lift

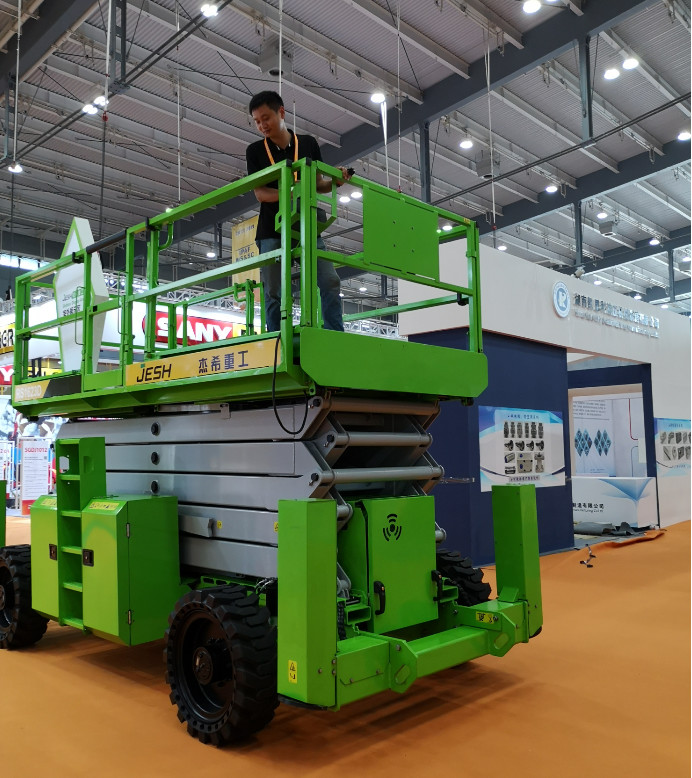

The RS1623DS rough terrain scissor lift is built for extra-rugged performance and is able to traverse through uneven rough terrain environments. Built to last, it's ideal to increase operator productivity on demanding outdoor worksites.
Main Specs:
Chassis:
Technical Parameters
| Parameters/Model | RS1623D |
| Working Height | 18m |
| Platform Height | 16m |
| Platform Length | 3.98m |
| Platform Length-Extended | 6.57m |
| Platform Extension | 3.2m |
| Platform extension(front/rear) | 1.52m/1.22m |
| Height -Stowed | 1.83m |
| Width | 2.27m |
| Length(with/no outrigger) | 4.88m/3.98m |
| Wheelbase | 2.86m |
| Min. Ground Clearance | 0.36m |
| Platform capacity | 680kg |
| Extension platform capacity | 230kg |
| Drive Speed | 5.6km/h |
| Gradeability | 40% |
| Raise/Lower Speed | 55/49sec |
| Turning Radius(Inside/outside) | 2.16m/5.33m |
| Tire | 84x30cm |
| Power Source | Diesel Engine |
| Fuel Tank Capacity | 110L |
| Hydraulic Oil Tank Capacity | 110L |
| Weight | 7995kg |
Factory Show:
