| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS0812HM |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Color: | Green | Working Height: | 13.8m |
|---|---|---|---|
| Platform Height: | 11.8m | Width: | 1.14m |
| Length: | 2.48m | Capacity: | 320KG |
| Platform Extendable: | 0.9m | Height-rails Folde: | 2.06m |
| Ground Clearance-stowed: | 10cm | Capacity On Extension: | 100kg |
| Turning Radius(inside/outside): | 0/2.1m | Tire: | 40.5*12,7m |
| Battery: | 24V/260Ah | Hydrualic Oil Tank Capacity: | 25L |
| Weight: | 2898kg | ||
| High Light: | sky cissor lift,hydraulic aerial platform |
||
Important Features:
1)Slide out tray on left and right,easy for maintenance.
2)Forklift hole on the front for loading and discharging.
3)Unique pothole protection design.
4) Open type hydraulic system with anti-burst pipe protection
5) Emergency lower function assures platform operators can get down safely in case of emergency
6) Single lifting oil cylinder structure guarantees hydraulic pressure balance
7) Safety bar on the scissor part of the machine ensures operator safety during repair
Specification Data:

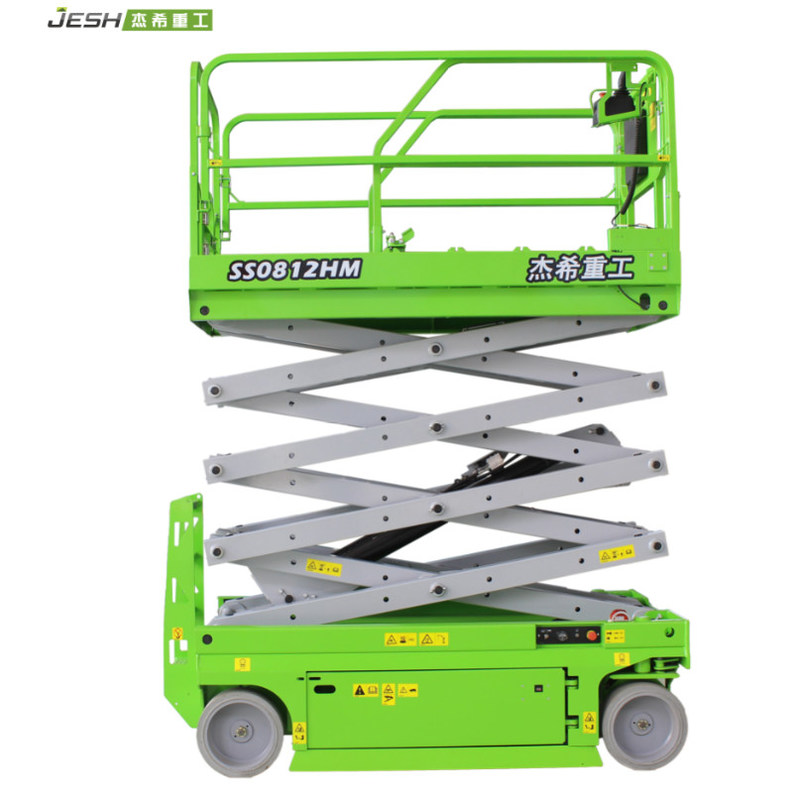

| Item | SS0812HM Self propelled scissor lift |
| Size | Metric |
| Max.Working Height | 10.1m |
| Max.Platform Height | 8.1m |
| Platform Length | 2.27m |
| Platform Length-Extended | 3.17m |
| Platform Extension | 0.9m |
| Platform Width | 1.14m |
| Height -Unfolded | 2.35m |
| Height-folded | 1.82m |
| Wheelbase | 1.87m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Performance | |
| Platform capacity | 450kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 32/42sec |
| Turning Radius(Inside/outside) | 0/2.1m |
| Tire | 40.5x12.7cm |
| Power | Electric power to drive the hydraulic motor |
| Battery | 24V/260Ah |
| Hydraulic Oil Tank Capacity | 25L |
| Machine Total Weight | 2550kg |
| Engine | optional (perkins, Kohler,Deutz,Commins,Yanmar) |
Warranty of scissor lifts:
1,5 years for the main structure,2 years for the whole machine . Engineers online support .
If purchase bulk orders our engineer can door to door service during the warranty period.
Shipping method:
6 units load into a 40' container,Jesh standard packing with plastic bag and wooden box .
Factory View:
