| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS0607HM |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 60 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Color: | Green | Working Height: | 7.9M |
|---|---|---|---|
| Platform Height: | 5.9M | Max Drive Speed: | 5.9M |
| Platform Length: | 1.63M | Capacity: | 230KG |
| Material: | High Impact Steel Structure | Battery Voltage: | 24V/225Ah |
| OEM: | OEM Surpport | Overall Dimensions: | 1.84x0.76x2.18m |
| Platform Size: | 1.66x0.75x1.24m | Engine: | Koher |
| High Light: | mobile hydraulic scissor lift,mobile scissor lift |
||

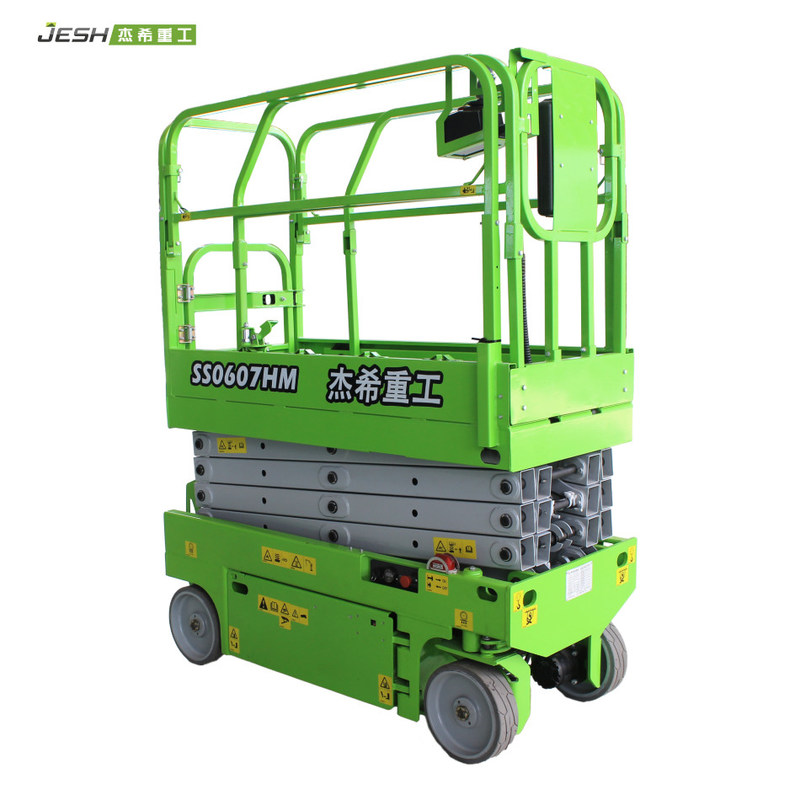

Small 6m elevated work platform is widely used in indoor workshop building site, hotel, airport, station, dock and so on.Mainly used to installing, repairing and cleaning on high aerial works.
Technical Parameters:
| Model | SS0607HM |
| Dimentions | Length 1.84m × Width 0.74m × Height 2.18m( Height up to 6m) |
| Working Height | 7.9m |
| Platform Height | 5.9m |
| Platform Length | 1.63m |
| Platform Length-Extended | 2.53m |
| Platform Extension | 0.9m |
| Platform Width | 0.74m |
| Height -Unfolded | 2.18m |
| Height-folded | 1.8m |
| Wheelbase | 1.32m |
| Min. Ground Clearance-stowed | 7cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Platform capacity | 230kg |
| Extension platform capacity | 100kg |
| Drive Speed | 4km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 16/26sec |
| Turning Radius(Inside/outside) | 0/1.5m |
| Tire | 32.3x10cm |
| Power | Hydraulic electric |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Hydraulic Oil Tank Capacity | 15L |
| Machine Total Weight | 1500kg |
| Battery |
24V/225ah |
Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.
Shipping by sea with around 40-45 days arrrive your destination port.
We provide long term warranty: 5 years for the main structural,2 years for the whole machine.
If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online
Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
