| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | TB27J |
| Minimum Order Quantity: | 1 unit |
| Price: | US$80000-US$140000 |
| Packaging Details: | packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 units per year |
| Feature: | Self-propelled | Product Name: | Scissor Lift |
|---|---|---|---|
| Max. Working Height: | 7.9m | Max.Platfrom Lifting Height: | 5.9m |
| Max.load Capacity: | 230kg | Extension Platform: | 100kg |
| Material: | High Impact Steel Structure | Table Size: | 1.66x0.75x1.24m |
| Overall Dimensions: | 1.84x0.76x2.18m | Total Weight: | 1550KG |
| High Light: | small electric manlift,scissor lift platform |
||

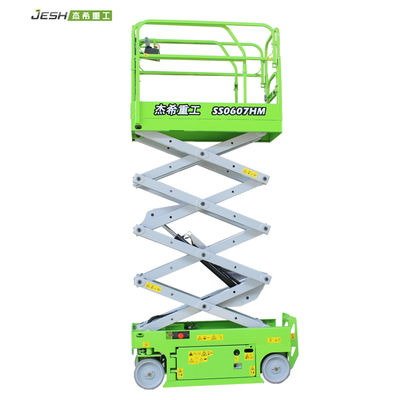

Hydraulic 6m self propelled scissor lift with 230kg capacity for indoor
6m small scissor lift platform widely used to indoor maintenance site, hotel, apartment house, etc. Mainly used to installing, repairing and cleaning at height.
Main specifications: Max.Lifting height : 5.9m, Max.Working height:7.9m. Load capacity: 230kg
Data sheet with detailed specifications:
| Product name | self propelled scissor lift SS0607HM |
| Dimentions | Length 1.84m × Width 0.74m × Height 2.18m( Height up to 6m) |
| Max.Working Height | 7.9m |
| Max.Platform Height | 5.9m |
| Platform Length | 1.63m |
| Platform Length-Extended | 2.53m |
| Platform Extension | 0.9m |
| Platform Width | 0.74m |
| Height -Unfolded | 2.18m |
| Height-folded | 1.8m |
| Wheelbase | 1.32m |
| Min. Ground Clearance-stowed | 7cm |
| Min. Ground Clearance-Raised | 2cm |
| Performance | |
| Platform capacity | 230kg |
| Extension platform capacity | 100kg |
| Drive Speed | 4km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 16/26sec |
| Turning Radius(Inside/outside) | 0/1.5m |
| Tire | 32.3x10cm |
| Power | Hydraulic electric |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Hydraulic Oil Tank Capacity | 15L |
| Machine Total Weight | 1500kg |
| Battery |
24v/225Ah |
Warranty:
Self propelled Scissor lifts warranty is 2 years for the whole machine and 5 years for the main structure.
Engineers provide door to door service or Online technical support.
