| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS0607HL |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Color: | Green | Working Height: | 7.9M |
|---|---|---|---|
| Platform Height: | 5.9M | Max Drive Speed: | 5.9M |
| Platform Length: | 1.63M | Capacity: | 230KG |
| High Light: | mobile hydraulic scissor lift,mobile scissor lift |
||

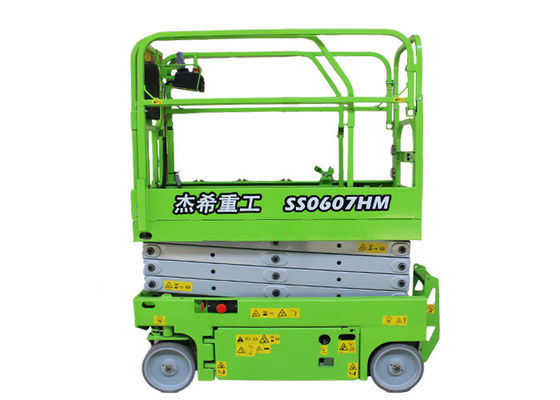

Mobile Scissor Lift , Hydraulic Aerial Platform Extended 6m Scissor Lift Machine
Aerial Work platform 6m scissorlifts for building maintainance
Product presentation:
Scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on.
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working more convenient.
Technical Parameters
| Model | SS0607HL |
| Dimentions | Metric |
| Working Height | 7.9m |
| Platform Height | 5.9m |
| Platform Length | 1.63m |
| Platform Length-Extended | 2.53m |
| Platform Extension | 0.9m |
| Platform Width | 0.74m |
| Height -Unfolded | 2.18m |
| Height-folded | 1.8m |
| Wheelbase | 1.32m |
| Min. Ground Clearance-stowed | 7cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Platform capacity | 230kg |
| Extension platform capacity | 100kg |
| Drive Speed | 4km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 16/26sec |
| Turning Radius(Inside/outside) | 0/1.5m |
| Tire | 32.3x10cm |
| Power | Electric |
| Engine | Bettery 24V/225Ah |
| Hydraulic Oil Tank Capacity | 15L |
| Machine Total Weight | 1500kg |
|
|
|
