Outdoor Rough Terrian Scissor Lift Working Height From 16m - 25m

Basic Information
Place of Origin: China
Brand Name: JESH
Certification: CE/ISO
Model Number: AB14J
Minimum Order Quantity: 1 unit
Price: US$80000-US$140000
Packaging Details: packed as per internaitonal export standard.
Delivery Time: 10-30days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 1000 units per year
Contact Now
Feature: Self-propelled Lift Drive/Actuation: Hydraulic
Platform Height: 16m Platfrom Capacity: 700kg
Power: Diesel Engine Weight: 7989kg
Application: Factory Building, Shipping Building Etc. Color: Light Green Gray / As Per Your Demand
High Light:

mobile aerial platform


mobile scissor lift

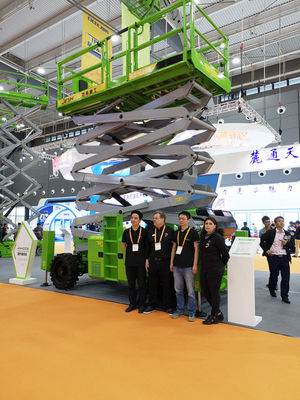

Outdoor Rough Terrian Scissor Lift Working Height From 16m - 25m


Rough terrain scissor lift


JESH rough terrain scissor lift provides working height from 16m-25m , designed for indoor or outdoor use to handle rough terrain.

With extra large platform, it is able to load with more workers and tools.It is also equipped with powerful 4×4 wheels drive and oscillating axle design which provide superb gradeability and terrain capabilities.This series delivers remarkable lifting speed, extra large platform, flexible operability and superb load capability etc, which enables the machine to reach the working point precisely and finish the task effectively.

It is ideal for construction site or extremely terrible working conditions to improve the working efficiency.


Technical Parameters


Model RS1623D
Dimentions Metric
Working Height 18m
Platform Height 16m
Platform Length 3.98m
Platform Length-Extended 6.57m
Platform Extension 3.2m
Platform extension(front/rear) 1.52m/1.22m
Height -Stowed 1.83m
Width 2.27m
Length(with/no outrigger) 4.88m/3.98m
Wheelbase 2.86m
Min. Ground Clearance 0.36m
Platform capacity 680kg
Extension platform capacity 230kg
Drive Speed 5.6km/h
Gradeability 40%
Raise/Lower Speed 55/49sec
Turning Radius(Inside/outside) 2.16m/5.33m
Tire 84x30cm
Engine Diesel Engine
Fuel 110L
Hydraulic Oil Tank Capacity 110L
Fuel Tank Capacity 7995kg
