| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | AB14J |
| Minimum Order Quantity: | 1 unit |
| Price: | US$80000-US$140000 |
| Packaging Details: | packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1000 units per year |
| Feature: | Articulating Boom Lift | Horizontal Outreach: | 8.6m |
|---|---|---|---|
| Up And Cover Height: | 7.1m | Platform Capacity Unrestricted: | 230kgs |
| Power Source: | Diesel Engine | Max.platform Height: | 14m |
| Max.working Height: | 16m | Material: | High Impact Steel Structure |
| After-sales Service: | Provided | Total Weight: | 6500kg |
| Warranty: | 2 Years | Engine: | Kohler |
| High Light: | articulating boom platform,articulating scissor lift |
||
Hunan JESH Heavy Industry Co.,Ltd is professional manufacturer of MEWPs (Mobile Elevating Work Platform) headquartered in Changsha,Hunan where is heavy machinery manufacturing base of China.JESH is specialized in research, production, sales and service of MEWPs.

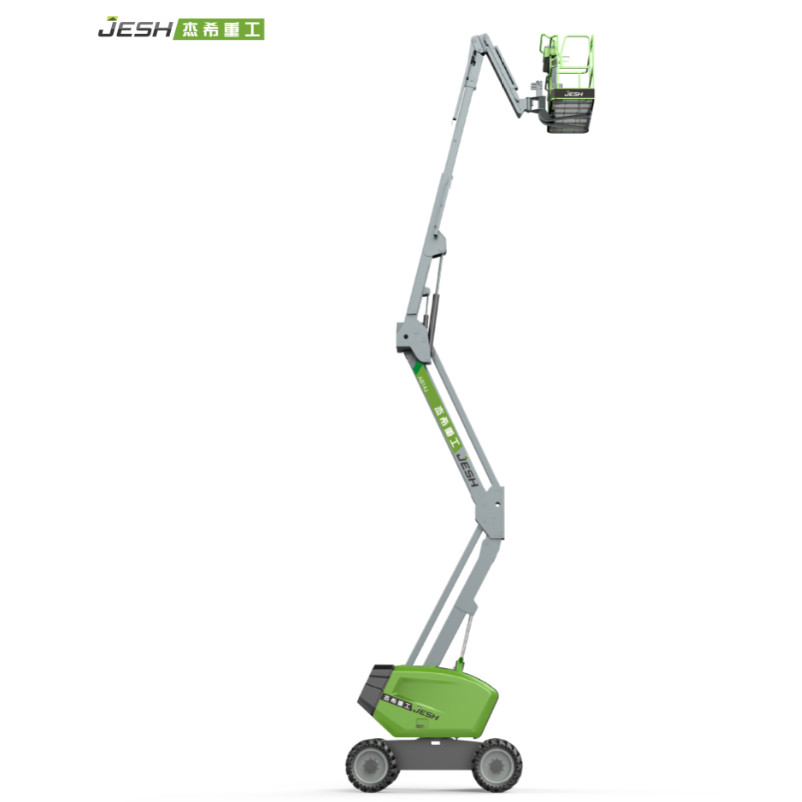

JESH articulating boom lift provides working height from 16m-25m ,which is designed for indoor or outdoor use on rough ground.
With superb “up and over” capabilities and excellent locating function, JESH articulating boom lift is suitable for working space which is hard to reach. It helps you to reach the working point freely, which improves working efficiency greatly.
The machine travels on rough ground smoothly with superb ground clearance and option of 2 or 4 wheels drive.It enables you to reach the working point precisely with industry- leading working height and superb capabilities.
Technical Parameters
| Model | AB14J |
| Dimentions | Metric |
| Max Working Height | 15.9m |
| Max Platform Height | 13.9m |
| Max Horizontal Outreach | 8.6m |
| Extendable depth downward | 1.0m |
| Platform Width | 0.76m |
| Platform Length | 1.80m |
| Height-Stowed | 2.27m |
| Length-Stowed | 6.5m |
| Length-Transportation | 5.5m |
| Width | 2.1m |
| Wheelbase | 2.05m |
| Ground Clearance-Center | 0.33m |
| Productivity | |
| Load capacity(unrestricted) | 230kg |
| Min. Turning Radius(inside/outside) | 3.3m/4.4m |
| Turntable Swing | 355° |
| Platform Rotation | 160° |
| Jib Rotation | 135° |
| Drive Speed(stowed) | 5.4km/h |
| Drive Speed(extended) | 1.1km/h |
| Control | DC12V Proportional |
| Drive type | 4 Wheels |
| Max. Gradeability | 40% |
| Tire-solid foam filled( Dia.×Width) | 835×290 |
| Power | |
| Engine | D2011L03I |
| Fuel | Diesel |
| Hydraulic Oil Tank Capacity | 120L |
| Fuel Tank Capacity | 70L |
