| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS1212HM |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Product Name: | Aerial Work Platform 12m | Max.Working Height: | 13.8m |
|---|---|---|---|
| Max.Lifting Height: | 11.8m | Capacity: | 320KG |
| Extension Platform Capacity: | 120kg | Platform Extendable: | 0.9m |
| Height-rails Unfolde: | 2.59m | Height-rails Folde: | 2.06m |
| Wheelbase: | 1.14m | Ground Clearance-stowed: | 10cm |
| Gradeability: | 25% | Raise/lower Speed: | 68/42sec |

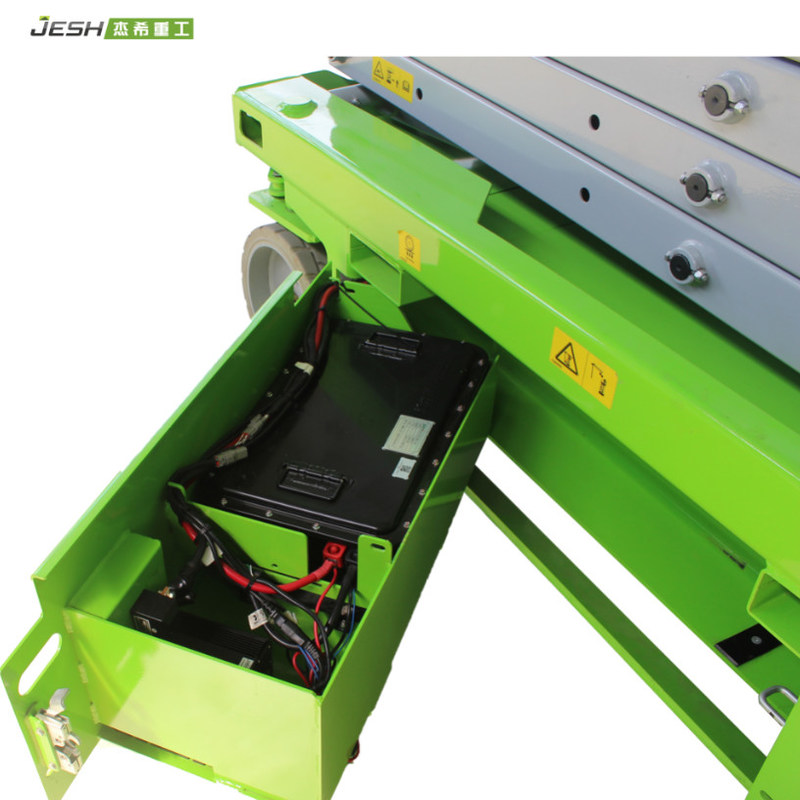

| Turning Radius(inside/outside): | 0/2.1m | Battery: | 24V/260Ah |
| Hydrualic Oil Tank Capacity: | 25L | Weight: | 2898kg |
| High Light: | small electric manlift,scissor lift platform |
||
12m Man lift product specifications:
| Model& Product name | SS1212HM 12m aerial work platform |
| size | Metric |
| Max.Working Height | 10.1m |
| Max.Lifting Platform Height | 8.1m |
| Platform Length | 2.27m |
| Platform Length-Extended | 3.17m |
| Platform Extension | 0.9m |
| Platform Width | 1.14m |
| Height -Unfolded | 2.35m |
| Height-folded | 1.82m |
| Wheelbase | 1.87m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Performance | |
| Platform capacity | 320kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Tire | 40.5x12.7cm |
| Power | Hydraulic motor |
| Engine | optional (perkins, Kohler,Deutz,Commins,Yanmar) |
Optional configurations and devices:
1. Platform AC poweroutlets;
2. Compressed air line on the platform;
3. Folding guardrail of the platform;
4. 260Ah batteries ofTrojan;
5. Maintenance-freebattery;
Remark: For the items which will cost extra, please refer to the commercial quotation related.
Warranty: 2 years for the whole aerial work platform machine and 5 years for the main structure.
Service: Engineers door to door service after bulk order delivered. Online technical support and overseas dealer support .
Delivery: Normally 25 working days production,and 40 days shipping by sea.
Packing: Jesh standard package OR wooden box package.
