| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE/ISO |
| Model Number: | TB27J |
| Minimum Order Quantity: | 1 unit |
| Price: | US$80000-US$140000 |
| Packaging Details: | packed as per internaitonal export standard. |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 units per year |
| Feature: | Telescopic Boom Lift | Lift Drive/Actuation: | Hydraulic |
|---|---|---|---|
| Platform Height: | 27m | Platfrom Capacity: | 360kg |
| Power: | Diesel Engine | Weight: | 14500kg |
| Application: | Factory Building, Shipping Building Etc. | Color: | Light Green Gray / As Per Your Demand |
| High Light: | telescopic scissor lift,telescopic platform lift |
||

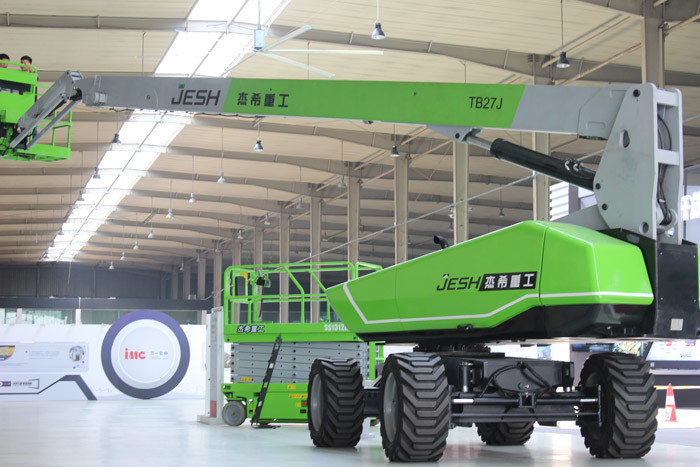

Telescopic boom lift with Working Height 29m For Airport Construction
JESH Telescopic boom lift/ manlift
JESH telescopic boom lift covers working height from 27m-43m, which is suitable for indoor or outdoor use on rough ground.
It is featured with advanced working height and outreach ability beyond the industry, which allow you to locate the working point accurately.
With outstanding gradeability and rough terrain performance, the working efficiency is greatly improved.
Technical Parameters
| Model | TB27J |
| Dimentions | Metric |
| Max Working Height | 29.0m |
| Max Platform Height | 27.0m |
| Max Horizontal Outreach | 21.1m |
| Extendable depth downward | 1.6m |
| Platform Width | 0.91m |
| Platform Length | 2.44m |
| Height-Stowed | 3.01m |
| Length-Stowed | 14.4m |
| Transportation | 11.9m |
| Width | 2.48m |
| Wheelbase | 3.0m |
| Ground Clearance-Center | 0.39m |
| Productivity | |
| Load capacity(unrestricted) | 230kg |
| Load capacity(restricted) | 360kg |
| Tail swing | 1.574m |
| Min. Turning Radius(inside/outside) | 3.7m/6.6m |
| Turntable Swing | 360°continuous |
| Platform Rotation | 160° |
| Jib rotation | -60°~75° |
| Drive Speed(stowed) | 5.4km/h |
| Drive Speed(extended) | 1.1km/h |
| Control | DC12V Proportional |
| Drive type | 4 Wheels |
| Max. Grade ability | 45% |
| Tire-solid foam filled( Dia.×Width) | 1033×450mm |
| Power | |
| Engine | Kohler KDI 2504 TCR(55.4kW) |
| Fuel | Diesel |
| Hydraulic Oil Tank Capacity | 150L |
| Fuel Tank Capacity | 120L |
