Industrial Hydraulic Scissor Lift Platform Height 8.1M

Industrial Hydraulic Scissor Lift Platform Height 8.1M

  • High Light

    hydraulic scissor lift platform 8.1M


    hydraulic platform lift 8.1M


    industrial hydraulic lift 8.1M

  • Control System
    Proportional Control
  • Lifting Mechanism
  • Working Height
  • Warranty
    One Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

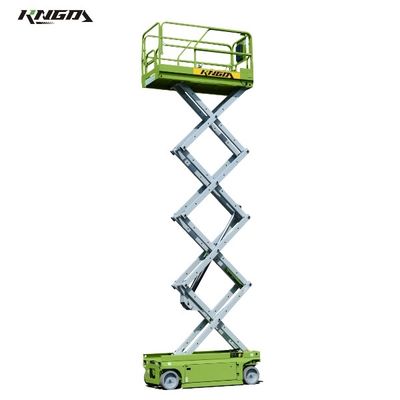

Industrial Hydraulic Scissor Lift Platform Height 8.1M


Self-propelled Scissor Lift Platform Height 8.1M




Product Main Features


1. The electrophoresis treatment applied to the machine's structural components sets it apart, boasting anti-corrosion capabilities that far surpass those of its competitors.

2. Achieving greater working heights while maintaining the same number of fork arms, the hydraulic travel system features a balance valve for exceptionally stable and secure braking during travel.

3. With a dual load system in place, this machine maximizes efficiency by offering standard forklift holes and specialized lifting points for effortless equipment loading and unloading.

4. Enhancing both stability and comfort, the central fork arm design is a standout feature that elevates the overall user experience on the platform.

5. Utilizing high-strength steel in critical areas, this machine enhances its durability and strength to a level that outshines the rest in its class.

Industrial Hydraulic Scissor Lift Platform Height 8.1M 0


Model JDS0808HM
Size Metric
Maximum Working Height 10.1m
A)Maximum Platform Height 8.1m
B)Platform Height-Stowed 1.25m
C) Platform Length 2.29m
Length Extended 3.2m
D) Platform Width 0.8m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.35m
Height-Stowed (Rail folded) 1.82m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 450Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 40s/50s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2200kg
Standards Compliance EN280 GB/T 25849


Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance-bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn

Industrial Hydraulic Scissor Lift Platform Height 8.1M 1





Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
