| Place of Origin: | China |
|---|---|
| Brand Name: | JESH |
| Certification: | CE |
| Model Number: | SS1212HM |
| Minimum Order Quantity: | 1Unit |
| Price: | Negotiation |
| Packaging Details: | Regular factory packing |
| Delivery Time: | 45 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 4000 Units per month |
| Color: | Green | Working Height: | 13.8m |
|---|---|---|---|
| Platform Height: | 11.8m | Width: | 1.14m |
| Length: | 2.48m | Capacity: | 320KG |
| Power: | 3.5kw | Overall Dimensions: | 2.48*1.14*2.6m |
| Material: | High-duty Steel Structure | Engine: | Optional (perkins, Kohler,Deutz,Commins,Yanmar) |
| High Light: | self propelled electric scissor lift,man scissor lift,electrical scissor lift |
||

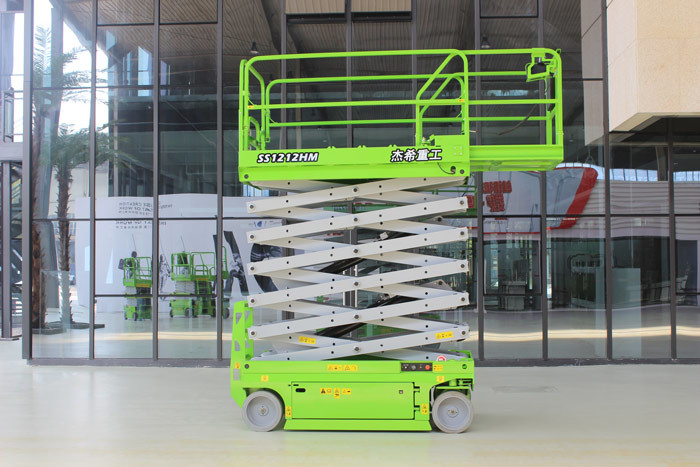

Electrical 12m Self Propelled Scissor Lift for maintenance adopts electric to drive the hydraulic motor,the working height covers 3m to 13.8m,the maximum load is 320kg,using the battery as the electric to drive the motor as the power,energy saving and enviromental protection,it is suitable for indoor flat ground and high altitude operation environment with high environmental requirements such as shoping malls,residential areas,factory or building maintenance and so on.
Chassis:
Technical Parameters
| Model | SS1212HM |
| Dimentions | Metric |
| Working Height | 10.1m |
| Platform Height | 8.1m |
| Platform Length | 2.27m |
| Platform Length-Extended | 3.17m |
| Platform Extension | 0.9m |
| Platform Width | 1.14m |
| Height -Unfolded | 2.35m |
| Height-folded | 1.82m |
| Wheelbase | 1.87m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Platform capacity | 320kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 68/42sec |
| Turning Radius(Inside/outside) | 0/2.1m |
| Tire | 40.5x12.7cm |
| Power | Hydraulic Electric |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Hydraulic Oil Tank Capacity | 25L |
| Machine Total Weight | 2898KG |
| Bettery |
24V/260Ah |
Factory Information:
Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
