26m Platform Height Diesel Articulating Boom Lift 4wd Manlift

26m Platform Height Diesel Articulating Boom Lift 4wd Manlift

  • High Light

    26m Diesel Articulating Boom Lift

    ,

    Diesel Articulating Boom Lift 4wd

    ,

    4wd Manlift

  • Boom Rotation
    360 Degrees
  • Gradeability
    45%
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB26J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

26m Platform Height Diesel Articulating Boom Lift 4wd Manlift



Diesel Articulating Boom Lift Maximum Platform Height 26m





Product Features



1. The Diesel Articulating Boom Lift is a versatile piece of equipment used in construction or maintenance work to reach high places.

2. It has a diesel-powered engine that provides strong and reliable performance.

3. The boom arm can extend and rotate, allowing for precise positioning and access to difficult areas.

4. It also has a spacious platform that can hold multiple workers and their tools.

5. The lift is equipped with safety features like stabilizers, emergency stop buttons, and fall protection systems to ensure the safety of the operators.

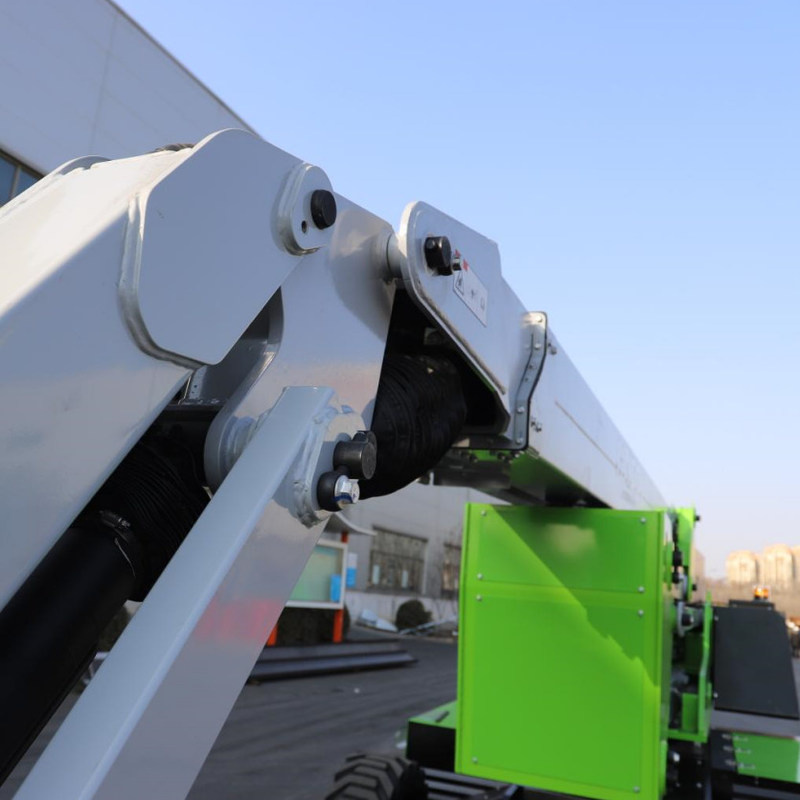

26m Platform Height Diesel Articulating Boom Lift 4wd Manlift 0

Model AB26J
Size Metric
Maximum Working Height 28m
Maximum Platform Height 26m
Maximum Horizontal Outreach 17.28m
Maximum Up & Over Clearance 10.2m
Platform Size 2.44X0.91m
B)Length-Stowed 11.7m
Width-Stowed 2.58m
A)Height-Stowed 2.97m
Wheelbase 3m
Ground Clearance 0.43m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Turntable Tail Swing 0.96m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 40%
Maximum Working Slope
Turning Radius (inside) 2.6m
Turning Radius (outside) 6.1m
Drive & Steer Mode 4X4X2
Tire Size 385X65-22.5
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 17000Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
