Fuel Tank 100L Diesel Articulating Boom Lift Platform Height 16m

Fuel Tank 100L Diesel Articulating Boom Lift Platform Height 16m

  • High Light

    100L Diesel Articulating Boom Lift

    ,

    Diesel Articulating Boom Lift 16m

    ,

    16m Boom Lift

  • Gradeability
    45%
  • Model
    DIESEL ARTICULATING BOOM LIFT AB16J
  • Power Source
    Diesel
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB16J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

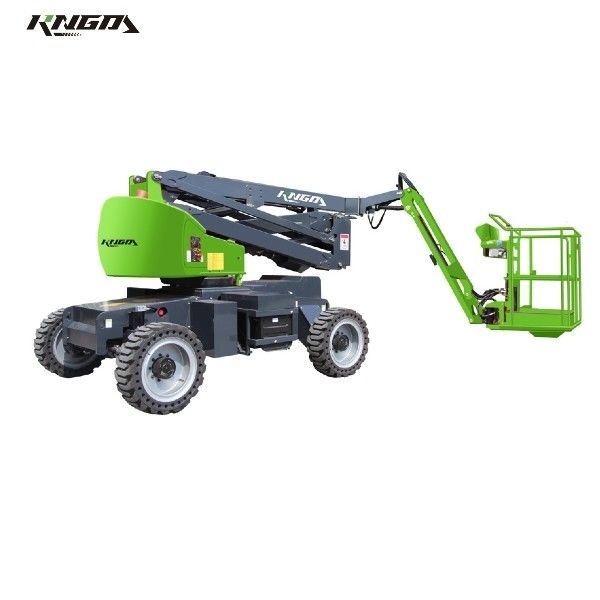

Fuel Tank 100L Diesel Articulating Boom Lift Platform Height 16m



Diesel Articulating Boom Lift Platform Height,16m Fuel Tank Capacity 100L




Product Features



1. Diesel articulating boom lifts offer various features to ensure safety and efficiency.

2. Some models are equipped with four-wheel drive capabilities, allowing them to navigate uneven surfaces and rough terrains.

3. They also have stabilizing outriggers that provide stability while working at higher heights.
4. These lifts are commonly used in industries such as construction, electrical and utility work, tree trimming, painting, and more.

5. They are ideal for tasks that require access to elevated areas, especially when there are obstacles or restricted spaces.
3. Overall, diesel articulating boom lifts are essential equipment for accessing high areas and completing tasks efficiently and safely. Their versatility, reach, and power make them a valuable asset in numerous industries.



Fuel Tank 100L Diesel Articulating Boom Lift Platform Height 16m 0



Model AB16J
Size Metric
Maximum Working Height 18m
Maximum Platform Height 16m
Maximum Horizontal Outreach 9.55m
Maximum Up & Over Clearance 8.25m
Platform Size 1.83X0.76m
B)Length-Stowed 7.26m
Width-Stowed 2.28m
A)Height-Stowed 2.4m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.09m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 0.8Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.8m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8700Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.



Fuel Tank 100L Diesel Articulating Boom Lift Platform Height 16m 1
