STAFF LIFT Working Height 32m Diesel Articulating Boom Lift

STAFF LIFT Working Height 32m Diesel Articulating Boom Lift

  • Max Working Height
    32m
  • Platform Height
    30m
  • Platform Size
    2.44m X 0.91m
  • Weight
    21,000kg
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB30J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

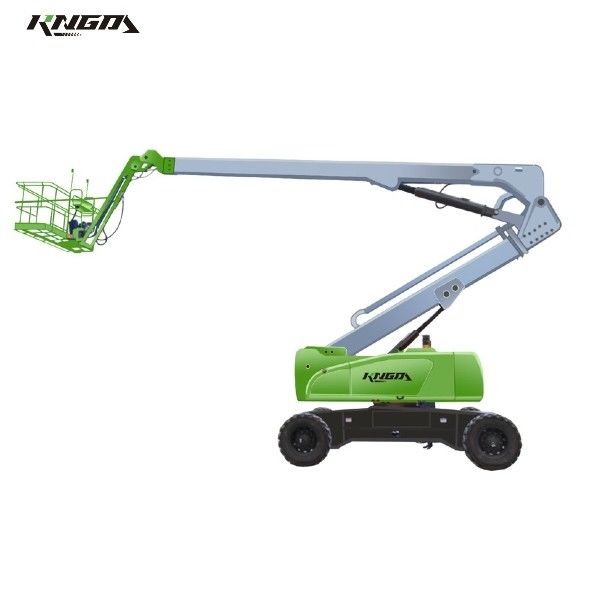

STAFF LIFT Working Height 32m Diesel Articulating Boom Lift


 Diesel Articulating Boom Lift Maximum Working Height 32m

 Product Main Features


  1. The diesel articulating arm aerial work platform has a compact structure design, complete safety devices, and precise control of the crossing height.
  2. Equipment used for accessing heights during construction or maintenance work.
  3. The boom can be extended and bent in all directions for flexible positioning.
  4. Powered by a diesel engine, it provides the necessary power for lifting and moving.
  5. Reach great heights and has a large platform that can accommodate multiple people or heavy objects.
  6. Features safety features like stabilizers and controllers for smooth, precise operation.


STAFF LIFT Working Height 32m Diesel Articulating Boom Lift 0



Model

AB30J

Size

Metric

Maximum Working Height

32m

Maximum Platform Height

30m

Maximum Horizontal Outreach

20.2m

Maximum Up & Over Clearance

12.2m

Platform Size

2.44X0.91m

B)Length-Stowed(jib stowed/extended)

10.33m/12.7m

Width(axle retracted/extended)

2.5m/3.35m

A)Height-Stowed

3.22m

Wheelbase

3.66m

Ground Clearance

0.43m

Performance



Maximum Lifting Capacity/(Non-restricted)

480Kg/230Kg

Maximum Platform Occupancy

2 ppl

Platform Rotation

±90°

Vertical Jib Rotation

140°

Turntable Rotation

360°Continuous

Drive Speed-Stowed

4.4Km/h

Drive Speed-Raised

1.1Km/h

Gradeability

40%

Maximum Working Slope

Turning Radius -inside(axle retracted/extended)

4.14m/2.74m

Turning Radius -outside(axle retracted/extended)

6.56m/5.85m

Drive & Steer Mode

4X4X4

Tyre Size

385/65-22.5

Power



Power Supply

55Kw@2400rpm~2600rpm

Fuel Tank Capacity

151L

Hydraulic Oil Tank Capacity

250L

Control Voltage

12V

Weight



Machine Weight

21000Kg

Standard Compliance



EN280 GB25849





※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
