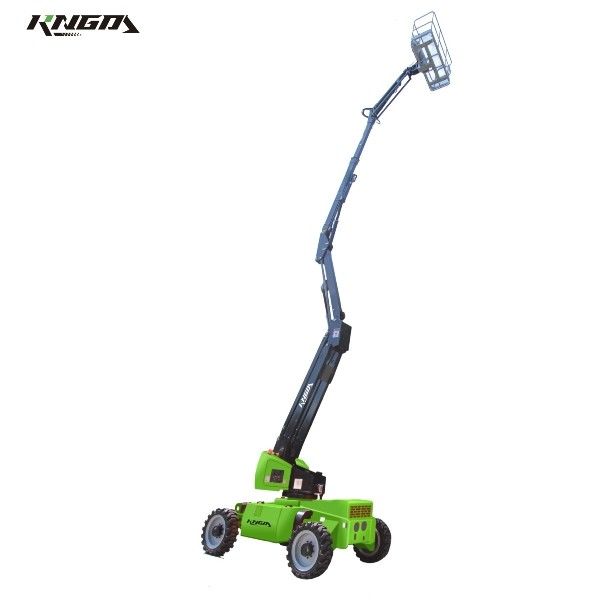

Personnel Lift Working Height 16.7m Diesel Articulating Boom Lift

Personnel Lift Working Height 16.7m Diesel Articulating Boom Lift

  • Drive Model
    2WD/4WD
  • Gradeability
    45%
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB14J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Personnel Lift Working Height 16.7m Diesel Articulating Boom Lift



Diesel Articulating Boom Lift Maximum Working Height 16.7m




Product Features



1. Diesel articulating boom lifts are another type of equipment used in construction or maintenance work to lift people or objects to higher places.

2. Unlike self-propelled scissor lifts, boom lifts have an extendable arm, or boom, that can reach higher and further distances.

3. This arm can be articulated, meaning it can bend or move in different directions, allowing for greater flexibility and access to hard-to-reach areas.





Personnel Lift Working Height 16.7m Diesel Articulating Boom Lift 0



Model AB14J
Size Metric
Maximum Working Height 16.7m
Maximum Platform Height 14.7m
Maximum Horizontal Outreach 8.1m
Maximum Up & Over Clearance 8.25m
Platform Size 1.83X0.76m
B)Length-Stowed 6.72m
Width-Stowed 2.28m
A)Height-Stowed 2.47m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 0.8Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.8m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8070Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.









The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
