AWP Working Height 18mDiesel Articulating Boom Lift 8700Kg

AWP Working Height 18mDiesel Articulating Boom Lift 8700Kg

  • Fuel Tank Capacity
    100L
  • Platform Height
    16m
  • Platform Size
    1.83m X 0.76m
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB16J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

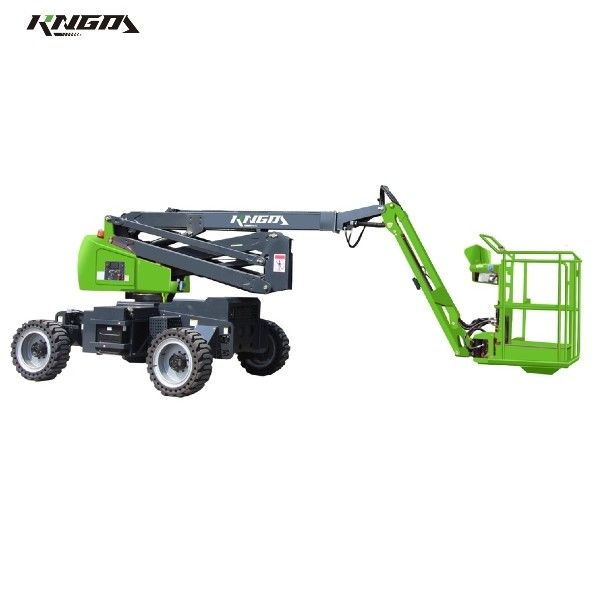

AWP Working Height 18mDiesel Articulating Boom Lift 8700Kg



Small Size Diesel Articulating Boom Lift Working Height 18m





Product Features



1. Diesel Engine: The diesel-powered engine provides ample power and torque, making it suitable for heavy-duty applications. It ensures consistent performance, even in demanding conditions.
2. Strong Lifting Capacity: Diesel articulating boom lifts can typically lift loads ranging from 500 to 1,000 pounds. This allows operators to carry tools, materials, and multiple workers to the desired height.
3. Operator Safety: These lifts include sturdy guardrails, emergency stop buttons, and non-slip platforms. This ensures a safe working environment for operators at height.



AWP Working Height 18mDiesel Articulating Boom Lift 8700Kg 0

Model AB16J
Size Metric
Maximum Working Height 18m
Maximum Platform Height 16m
Maximum Horizontal Outreach 9.55m
Maximum Up & Over Clearance 8.25m
Platform Size 1.83X0.76m
B)Length-Stowed 7.26m
Width-Stowed 2.28m
A)Height-Stowed 2.4m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.09m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 0.8Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.8m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8700Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
