AWP MANLIFT Diesel Articulating Boom Lift Platform Height 16m

AWP MANLIFT Diesel Articulating Boom Lift Platform Height 16m

  • Gradeability
    45%
  • Maximum Lifting Capacity
    230kg
  • Power Source
    Diesel Engine
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB16J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

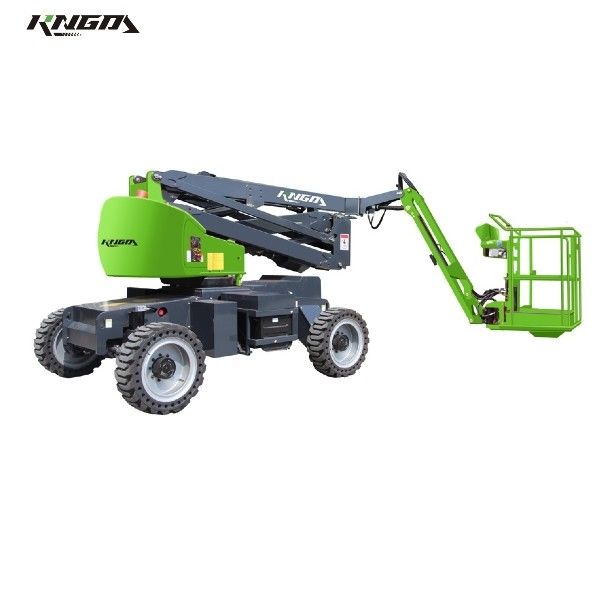

AWP MANLIFT Diesel Articulating Boom Lift Platform Height 16m



Diesel Articulating Boom Lift Maximum Platform Height 16m





Product Features

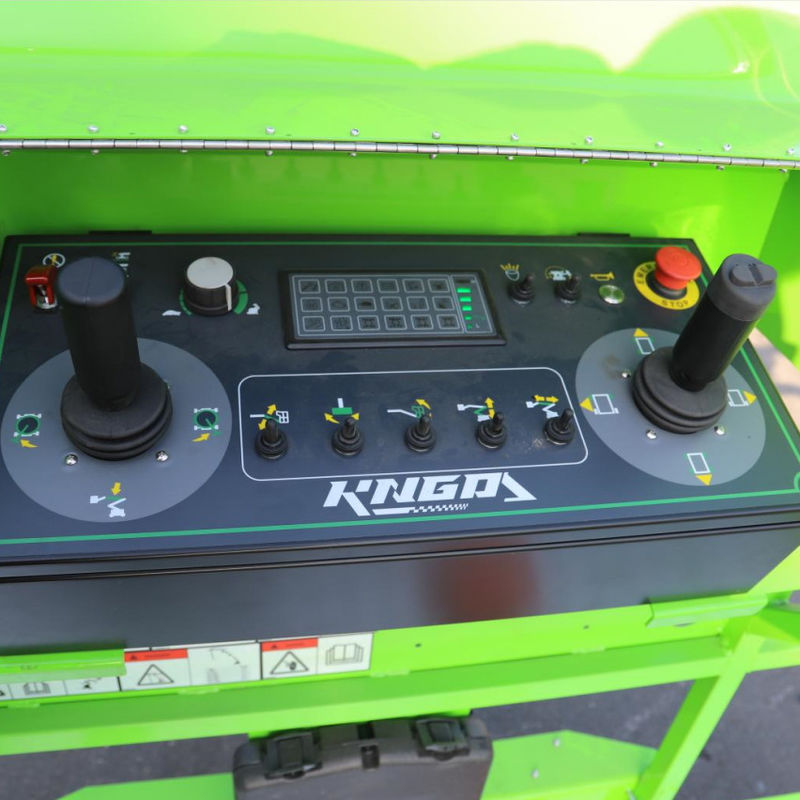

1. Easy Operation: Diesel articulating boom lifts are designed to be user-friendly, with intuitive controls and smooth operation. Some models may also have advanced features like automatic levelling and outreach capabilities.
2. Versatility: These lifts can be used in various industries and applications, including construction, maintenance, warehousing, and event management. They offer a flexible solution for accessing elevated work areas.
3. When considering a diesel articulating boom lift, it is important to assess the specific requirements of your project, such as maximum reach, lifting capacity, and terrain conditions.

4.  Additionally, ensure that operators are appropriately trained and follow all safety guidelines for operating the equipment.

AWP MANLIFT Diesel Articulating Boom Lift Platform Height 16m 0

Model AB16J
Size Metric
Maximum Working Height 18m
Maximum Platform Height 16m
Maximum Horizontal Outreach 9.55m
Maximum Up & Over Clearance 8.25m
Platform Size 1.83X0.76m
B)Length-Stowed 7.26m
Width-Stowed 2.28m
A)Height-Stowed 2.4m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.09m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 0.8Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.8m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8700Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
