Fuel Articulating Boom Lift Platform Height 18.2m MEWP

Fuel Articulating Boom Lift Platform Height 18.2m MEWP

  • High Light

    Fuel Articulating Boom Lift Platform

    ,

    Fuel Articulating Boom Lift 18.2m

    ,

    MEWP Boom Lift

  • Drive System
    4-wheel Drive
  • Platform Height
    18.2m
  • Power Source
    Diesel Engine
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB18J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Fuel Articulating Boom Lift Platform Height 18.2m MEWP



Diesel Articulating Boom Lift Maximum Platform Height 18.2m




Product Features




1. The Diesel Articulating Boom Lift is a powerful machine that can go fast with two speeds and has four-wheel drive.

2. It can handle steep slopes up to 45% and has a floating front axle for stability.

3. It comes with a strong motor, a gearbox for smooth driving, and safety features like load sensing and fault diagnosis systems.

4. It runs on a 12V battery, has full-size controls, and a thumb joystick for easy operation.

5. It has safety features like tilt alarms, descent alerts, and emergency pump for quick lowering.

6. The swivel platform has a locking mechanism for stability.

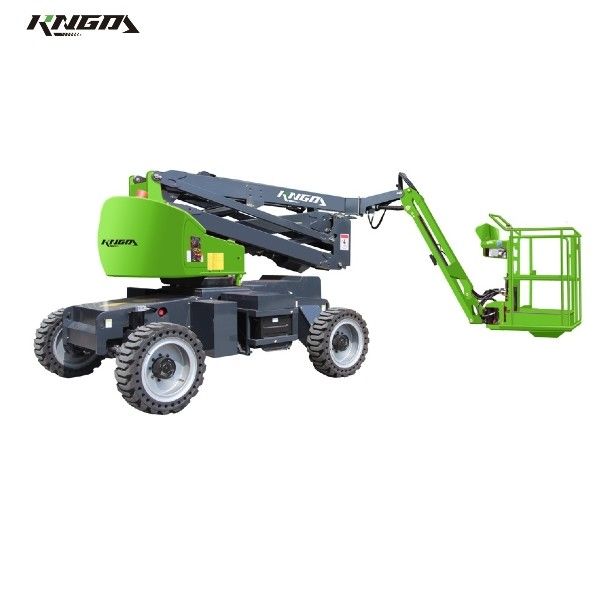

Fuel Articulating Boom Lift Platform Height 18.2m MEWP 0

Model AB18J
Size Metric
Maximum Working Height 20.2m
Maximum Platform Height 18.2m
Maximum Horizontal Outreach 11.6m
Maximum Up & Over Clearance 8.3m
Platform Size 1.83X0.76m
B)Length-Stowed 8.23m
Width-Stowed 2.38m
A)Height-Stowed 2.5m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.04m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.82m
Turning Radius (outside) 4.85m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8800Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
