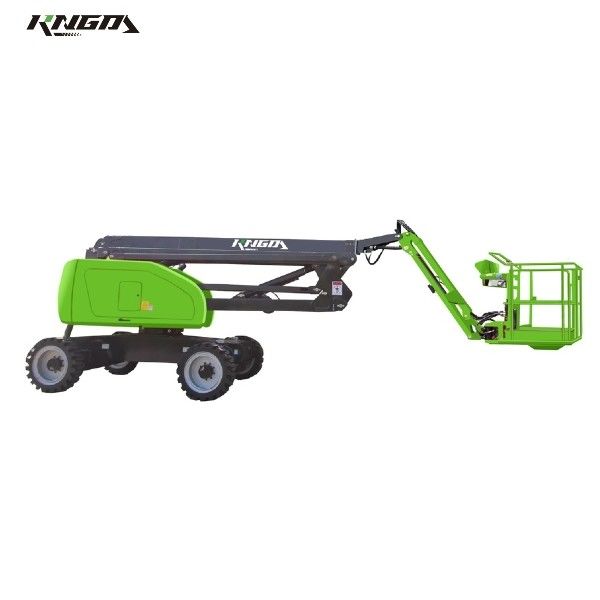

Capacity 230Kg Diesel Articulating Boom Lift Platform Height 18.2m 20m

Capacity 230Kg Diesel Articulating Boom Lift Platform Height 18.2m 20m

  • High Light

    230Kg Diesel Articulating Boom Lift

    ,

    Diesel Articulating Boom Lift 18.2m

    ,

    20m boom lift

  • Gradeability
    45%
  • Swing
    360° Continuous
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB18J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Capacity 230Kg Diesel Articulating Boom Lift Platform Height 18.2m 20m



Diesel Articulating Boom Lift Platform Height 18.2m,Lifting Capacity 230Kg




Product Features



The Small Size Diesel Articulating Boom Lift is a versatile and efficient piece of equipment used in construction and maintenance work. Here are some key product features explained in simple words:
1. Compact and Maneuverable;
2. Diesel Powered;
3. Articulating Boom;
4. Elevated Platform;
5. Easy Controls;
6. Safety Features;
7. Versatile Applications;
Overall, the Small Size Diesel Articulating Boom Lift is a reliable and efficient equipment that offers flexibility, safety, and ease of use for working at heights.

Capacity 230Kg Diesel Articulating Boom Lift Platform Height 18.2m 20m 0

Model AB18J
Size Metric
Maximum Working Height 20.2m
Maximum Platform Height 18.2m
Maximum Horizontal Outreach 11.6m
Maximum Up & Over Clearance 8.3m
Platform Size 1.83X0.76m
B)Length-Stowed 8.23m
Width-Stowed 2.38m
A)Height-Stowed 2.5m
Wheelbase 2.5m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.04m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.82m
Turning Radius (outside) 4.85m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Weight
Machine Weight 8800Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.



Capacity 230Kg Diesel Articulating Boom Lift Platform Height 18.2m 20m 1
