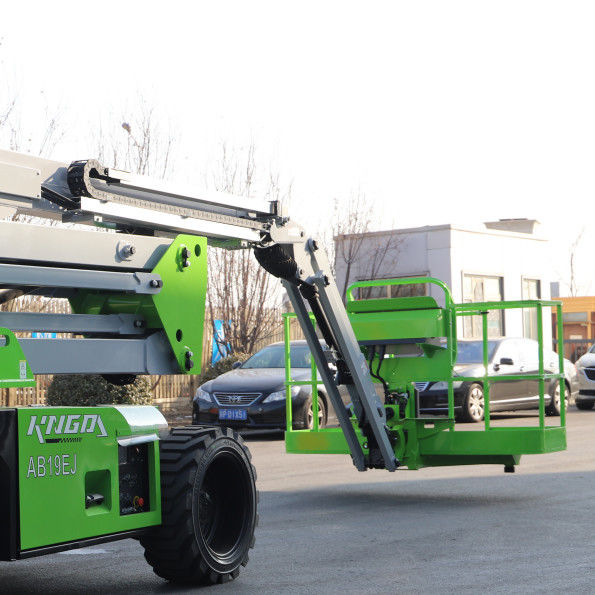

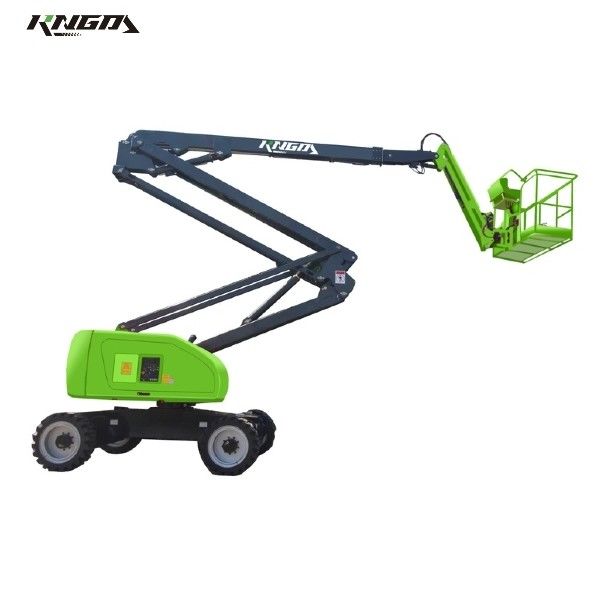

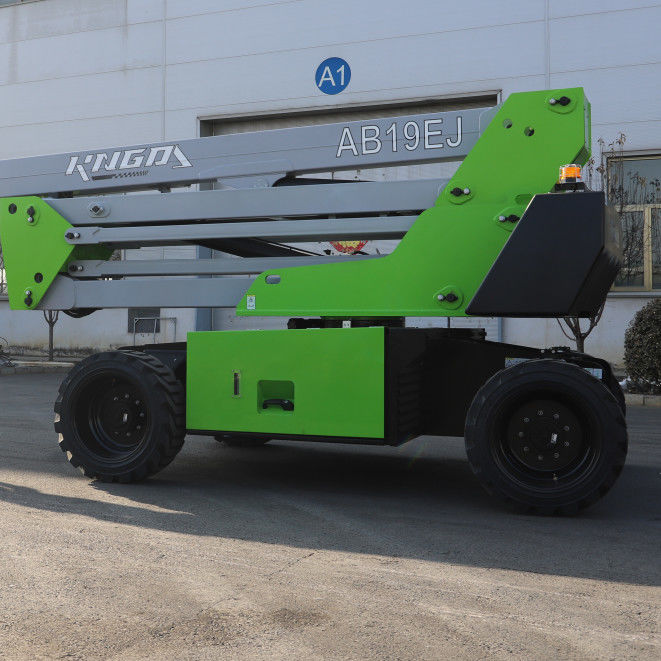

4WD Diesel Articulating Boom Lift Working Height 20.2m


Diesel Articulating Boom Lift Working Height 20.2m,Working Slope 5°


Product Features

1. The Small Size Diesel Articulating Boom Lift is designed to be small in size, allowing it to easily navigate through tight spaces and confined areas.
2. It runs on diesel fuel, providing a reliable and powerful source of energy to operate the lift.
3. The boom is designed with multiple sections that can articulate or bend, allowing for greater flexibility and reach when working at heights.
4. It has a durable platform that can be raised to different heights.
5. The boom lift comes with user-friendly controls that are easy to understand and operate, ensuring smooth and precise movements.

4WD Diesel Articulating Boom Lift Working Height 20.2m 0

Model AB18J
Size Metric
Maximum Working Height 20.2m
Maximum Platform Height 18.2m
Maximum Horizontal Outreach 11.6m
Maximum Up & Over Clearance 8.3m
Platform Size 1.83X0.76m
B)Length-Stowed 8.23m
Width-Stowed 2.38m
A)Height-Stowed 2.5m
Wheelbase 2.5m
Ground Clearance 0.4m
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Turntable Tail Swing 0.04m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.82m
Turning Radius (outside) 4.85m
Drive & Steer Mode 4X4X2
Tire Size 33X12-20
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Machine Weight 8800Kg
Standard Compliance
EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.




The Aerial Work Platform Production Line

1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
