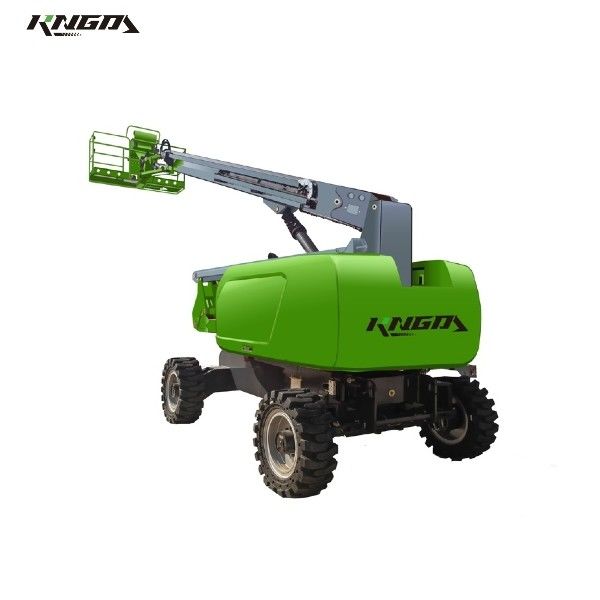

85 Foot MEWP Diesel Articulating Boom Lift Working 26.2m Capacity 230Kg

85 Foot MEWP Diesel Articulating Boom Lift Working 26.2m Capacity 230Kg

  • High Light

    Diesel Articulating Boom Lift 230Kg

    ,

    Diesel Articulating Boom Lift 26.2m

    ,

    85 foot boom lift

  • Boom Type
    Articulating
  • Power Source
    Diesel
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB24J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

85 Foot MEWP Diesel Articulating Boom Lift Working 26.2m Capacity 230Kg



Diesel Articulating Boom Lift Working Height 26.2m, Lifting Capacity 230Kg





Product Features



1. The Small Size Diesel Articulating Boom Lift is a compact and versatile piece of equipment used in construction or maintenance work.

2. It is powered by a diesel engine and has an articulating boom that can extend and manoeuvre in multiple directions.
3. This boom lift is designed to reach high and difficult-to-access areas with ease.

4. It has a small size, making it suitable for confined spaces or areas with limited manoeuvrability.
5. The lift is equipped with a platform that can hold one or two people, along with their tools or materials.

6. It also has safety features like guardrails and emergency stop buttons to ensure the safety of the operators.
7. With its powerful engine and flexible boom, this boom lift is ideal for tasks that require working at heights, such as construction, painting, or tree trimming.

8. It provides a stable and secure platform for workers to perform their tasks efficiently and safely.

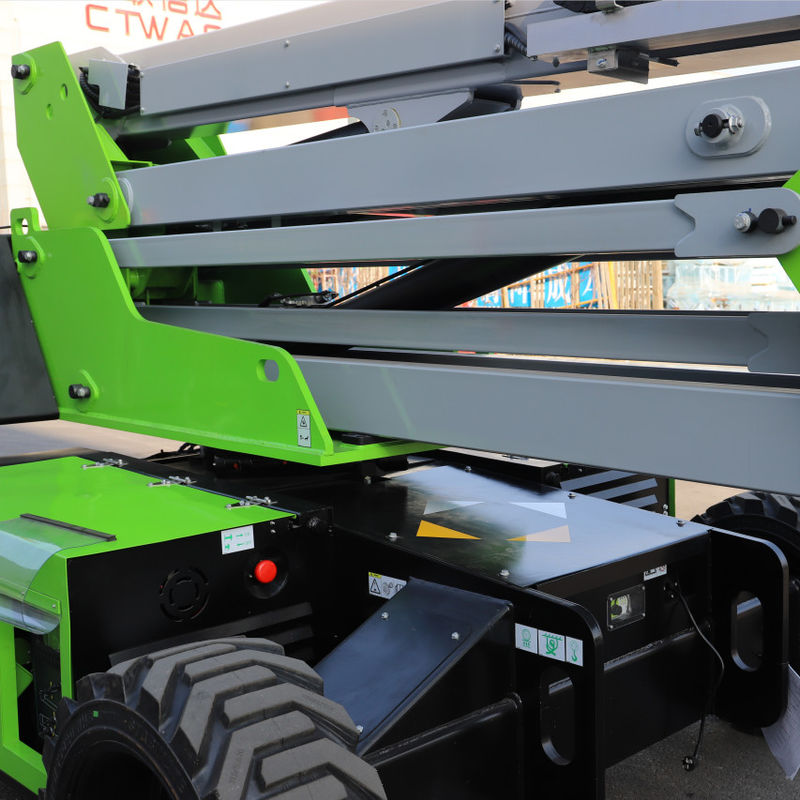

85 Foot MEWP Diesel Articulating Boom Lift Working 26.2m Capacity 230Kg 0

Model AB24J
Size Metric
Maximum Working Height 26.2m
Maximum Platform Height 24.2m
Maximum Horizontal Outreach 15.4m
Maximum Up & Over Clearance 10.2m
Platform Size 2.44X0.91m
B)Length-Stowed 10.65m
Width-Stowed 2.48m
A)Height-Stowed 2.85m
Wheelbase 3m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Turntable Tail Swing 1.01m
Drive Speed-Stowed 5Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 1.75m
Turning Radius (outside) 4.87m
Drive & Steer Mode 4X4X2

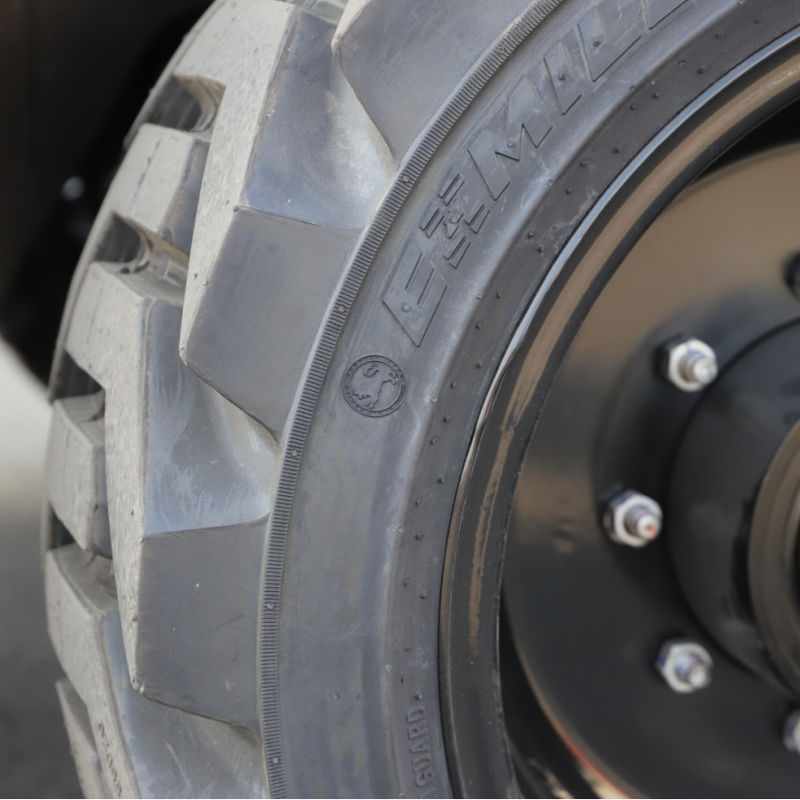

Tire Size 33X14-20
Power
Power Supply 36Kw@2200rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 16300Kg
Standard Compliance
EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.







The Aerial Work Platform Production Line



1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.



85 Foot MEWP Diesel Articulating Boom Lift Working 26.2m Capacity 230Kg 1
