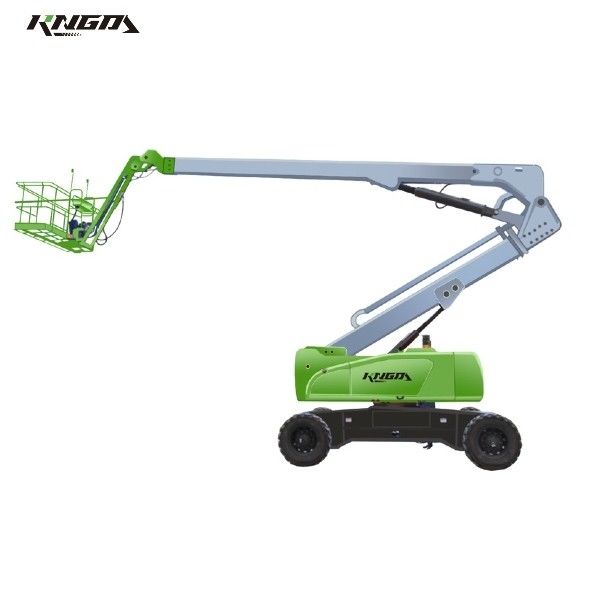

30m Platform Diesel Articulating Boom Lift MEWP Hydraulic

30m Platform Diesel Articulating Boom Lift MEWP Hydraulic

  • Drive Model
    2WD/4WD
  • Gradeability
    45%
  • Load Capacity
    250kg
  • Model
    Articulating Boom Lift
  • Platform Capacity
    227kg
  • Platform Height
    30m
  • Power Source
    Diesel Engine
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    AB30J
  • Minimum Order Quantity
    1 UNIT
  • Price
    (TBD)USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

30m Platform Diesel Articulating Boom Lift MEWP Hydraulic



 Diesel Articulating Boom Lift 32m Working height Platform-30m

  Product Main Features


  1. The Diesel Articulating Boom Lift is a versatile equipment used in construction or maintenance work.
  2. It has a diesel engine that provides power and allows it to work in outdoor or rough terrain environments.
  3. The boom arm can be articulated, which can bend or extend in different directions, providing flexibility and access to hard-to-reach areas.
  4. The lift has a platform that can hold workers and tools and can be raised or lowered to various heights.
  5. It also has safety features like guardrails and emergency stop buttons to ensure the safety of the users.
  6. Overall, it is a reliable and efficient machine for high-elevation tasks.


30m Platform Diesel Articulating Boom Lift MEWP Hydraulic 0


Model

AB30J

Size

Metric

Maximum Working Height

32m

Maximum Platform Height

30m

Maximum Horizontal Outreach

20.2m

Maximum Up & Over Clearance

12.2m

Platform Size

2.44X0.91m

B)Length-Stowed(jib stowed/extended)

10.33m/12.7m

Width(axle retracted/extended)

2.5m/3.35m

A)Height-Stowed

3.22m

Wheelbase

3.66m

Ground Clearance

0.43m

Performance



Maximum Lifting Capacity/(Non-restricted)

480Kg/230Kg

Maximum Platform Occupancy

2 ppl

Platform Rotation

±90°

Vertical Jib Rotation

140°

Turntable Rotation

360°Continuous

Drive Speed-Stowed

4.4Km/h

Drive Speed-Raised

1.1Km/h

Gradeability

40%

Maximum Working Slope

Turning Radius -inside(axle retracted/extended)

4.14m/2.74m

Turning Radius -outside(axle retracted/extended)

6.56m/5.85m

Drive & Steer Mode

4X4X4

Tyre Size

385/65-22.5

Power



Power Supply

55Kw@2400rpm~2600rpm

Fuel Tank Capacity

151L

Hydraulic Oil Tank Capacity

250L

Control Voltage

12V

Weight



Machine Weight

21000Kg

Standard Compliance



EN280 GB25849




※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
