135 Foot 125 Foot 40m Boom Lift Diesel Bendable Boom Staff Lift Hydraulic 4WD
-
High Light
125 foot boom lift
,135 foot boom lift
,boom lift diesel
-
Gradeability40%
-
Power SourceDiesel
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberAB38J
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED
135 Foot 125 Foot 40m Boom Lift Diesel Bendable Boom Staff Lift Hydraulic 4WD

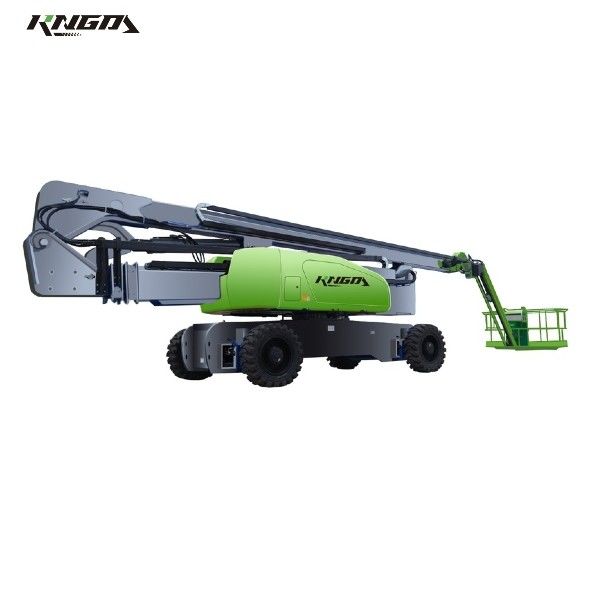

Diesel Articulating Boom Lift Working Height 40.1m,Control Voltage 12V
Product Features
The Medium-Large Size Diesel Articulating Boom Lift has the following product features:
1. Size: This boom lift is designed to handle medium to large-sized tasks, making it suitable for a wide range of applications.
2. Reach and height: With an extended reach and impressive working height, this boom lift can access tall structures or reach distant locations easily.
3. Platform capacity: It has a high weight-carrying capacity, allowing multiple workers or heavy materials to be lifted safely.
4. Easy controls: It features user-friendly controls that enable precise movements and adjustments, ensuring safe and efficient operation.
| Model | AB38J |
| Size | Metric |
| Maximum Working Height | 40.1m |
| Maximum Platform Height | 38.1m |
| Maximum Horizontal Outreach | 21.6m |
| Maximum Up & Over Clearance | 19.5m |
| Platform Size | 2.44X0.91m |
| B)Length-Stowed(jib stowed/extended) | 11.46m/14.2m |
| Width(axle retracted/extended) | 2.5m/4.1m |
| A)Height-Stowed | 3.17m |
| Wheelbase | 3.96m |
| Ground Clearance | 0.43m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/230Kg |
| Maximum Platform Occupancy | 2ppls |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 140° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 4.4Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 40% |
| Maximum Working Slope | 5° |
| Turning Radius -inside(axle retracted/extended) | 3.83m/2.69m |
| Turning Radius -outside(axle retracted/extended) | 6.24m/6.5m |
| Drive & Steer Mode | 4X4X4 |

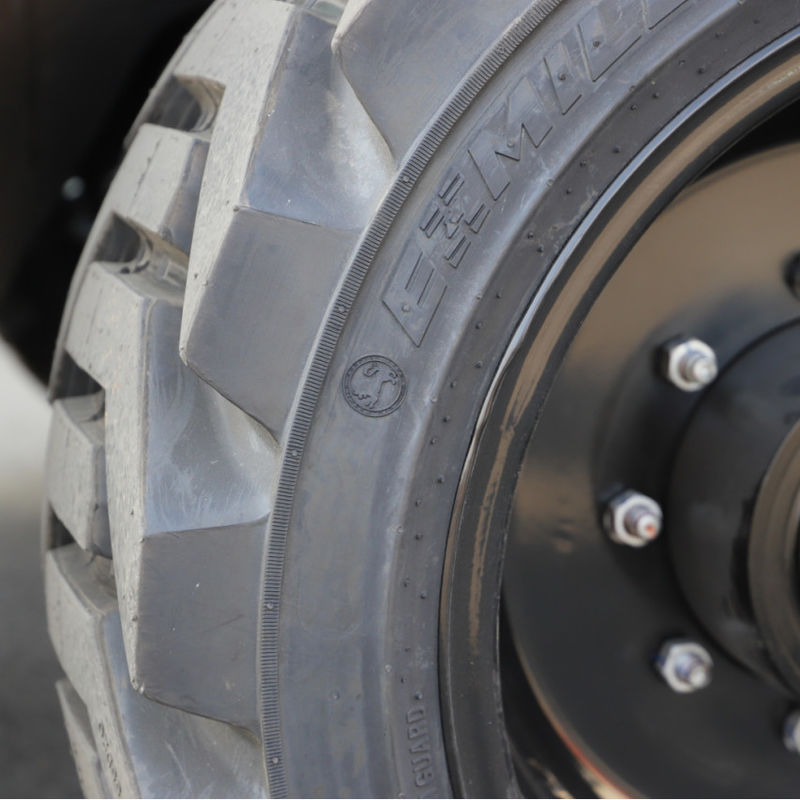

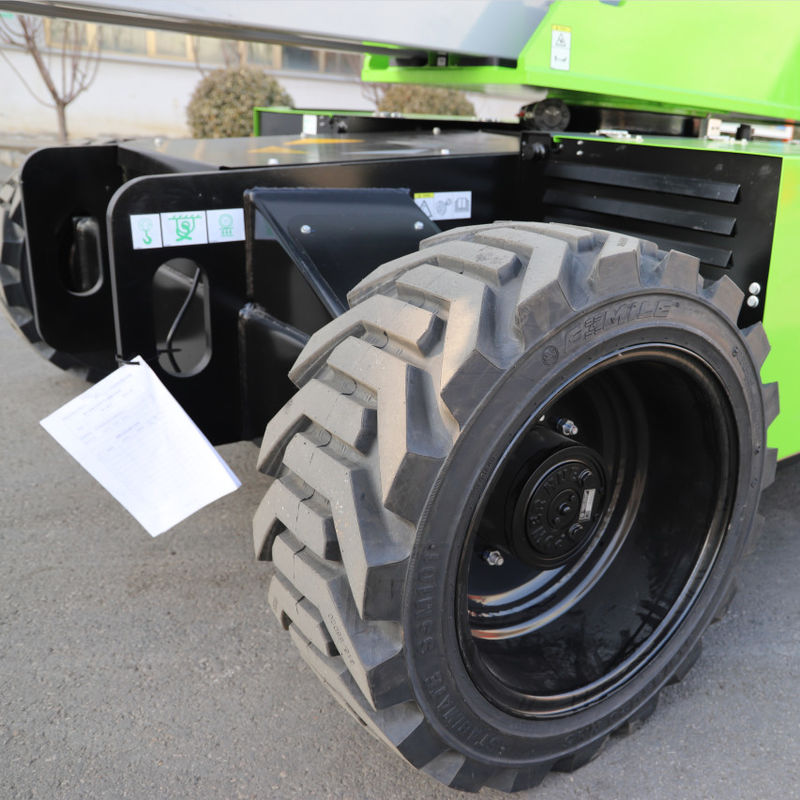

| Tire Size | 385/65-22.5 |
| Power | |
| Power Supply | 55Kw@2400rpm~2600rpm |
| Fuel Tank Capacity | 151L |
| Hydraulic Oil Tank Capacity | 250L |
| Control Voltage | 12V |
| Weight | |
| Machine Weight | 25400Kg |
| Standard Compliance | |
| EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
The Aerial Work Platform Production Line
1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics
3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
Our products are sold all over the world, you can rest assured.
