150 Foot 47.1m Diesel Articulating Boom Lift Hydraulic MEWP
-
High Light
150 foot boom lift
,150 ft boom lift
,Articulating Boom Lift MEWP
-
Rotation360 Degrees Continuous
-
TypeArticulating Boom Lift
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberAB45J
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED

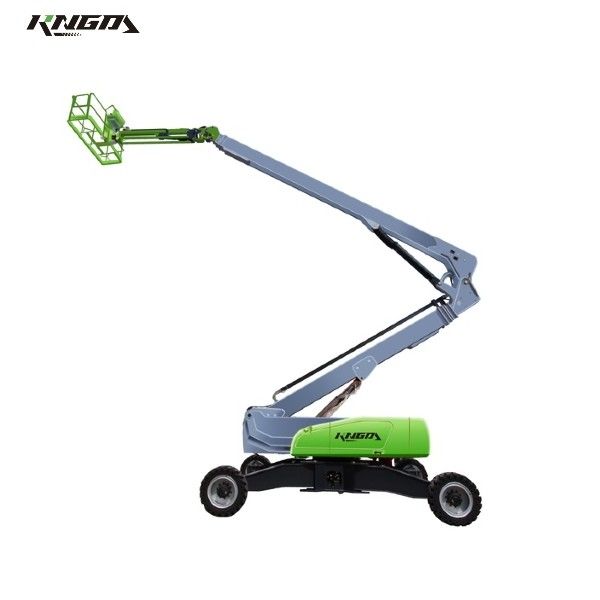

150 Foot 47.1m Diesel Articulating Boom Lift Hydraulic MEWP
Diesel Articulating Boom Lift Maximum Working Height 47.1m
Product Features
The Medium-Large Size Diesel Articulating Boom Lift is a versatile piece of equipment used in construction or maintenance work.
●Height and Reach: This boom lift can reach high places, allowing workers to access areas that are difficult to reach otherwise. It has a long boom that can extend horizontally and vertically.
●Articulating Arm: The boom lift has an articulating arm that can bend or rotate, making it easier to reach obstacles or work in tight spaces.
●Diesel Engine: It is powered by a diesel engine, which provides the necessary power to lift heavy loads and operate for extended periods.
| Model | AB45J |
| Size | Metric |
| Maximum Working Height | 47.1m |
| Maximum Platform Height | 45.1m |
| Maximum Horizontal Outreach | 23m |
| Maximum Up & Over Clearance | 19.5m |
| Platform Size | 2.44X0.91m |
| B)Length-Stowed(jib stowed/extended) | 11.6m/14.7m |
| Width(axle retracted/extended) | 2.5m/5.1m |
| A)Height-Stowed | 3.17m |
| Wheelbase | 5.6m |
| Ground Clearance | 0.4m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/230Kg |
| Maximum Platform Occupancy | 2ppls |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 140° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 4.4Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 40% |
| Maximum Working Slope | 5° |
| Turning Radius -inside(axle retracted/extended) | 7.6m/2.69m |
| Turning Radius -outside(axle retracted/extended) | 10m/7.07m |
| Drive & Steer Mode | 4X4X4 |
| Tire Size | 445/65-24 |
| Power | |
| Power Supply | 55Kw@2400rpm~2600rpm |
| Fuel Tank Capacity | 200L |
| Hydraulic Oil Tank Capacity | 250L |
| Control Voltage | 24V |
| Weight | |
| Machine Weight | 26110Kg |
| Standard Compliance | |
| EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
