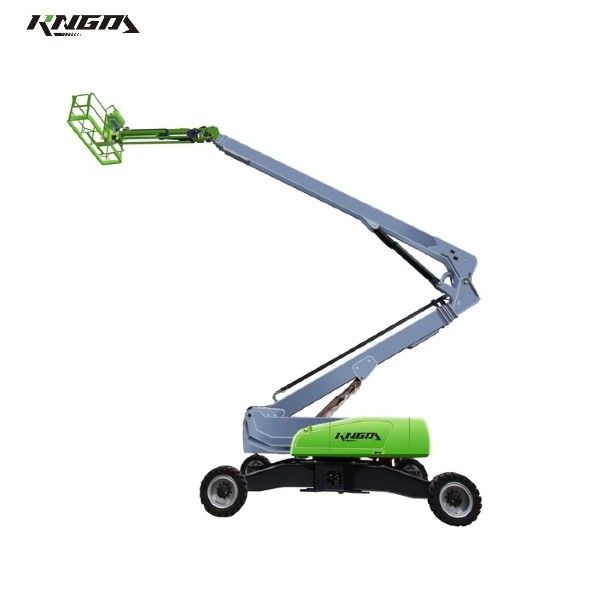

Diesel Articulating Boom Lift Platform Height 45.1m,Control Voltage 24V
Product Features
1. The Medium-Large Size Diesel Articulating Boom Lift is a versatile piece of equipment used in construction or maintenance projects.
2. It has a diesel engine, which provides power and ensures it can operate for extended periods.

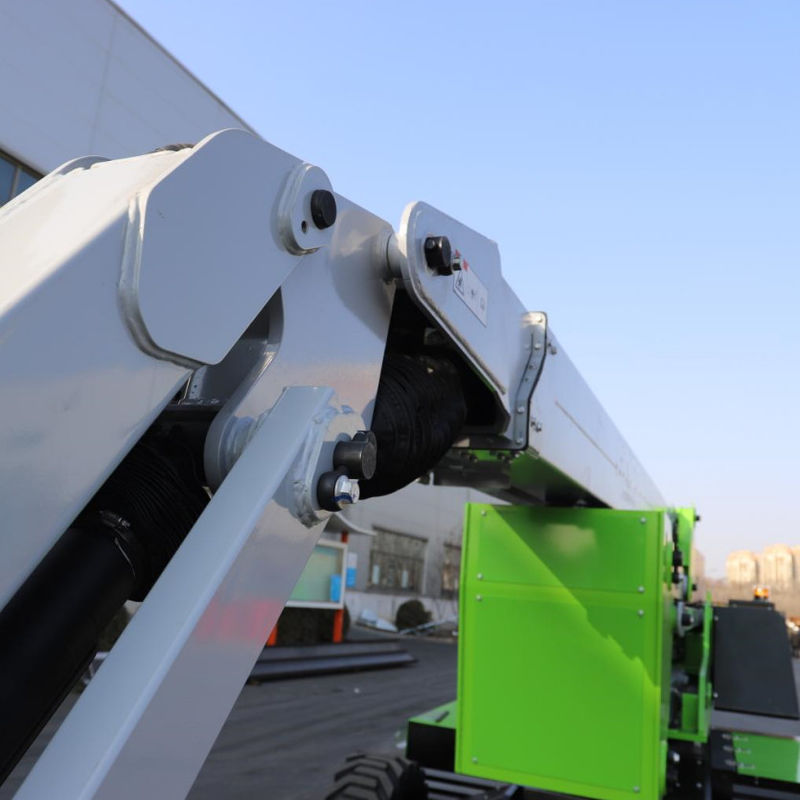

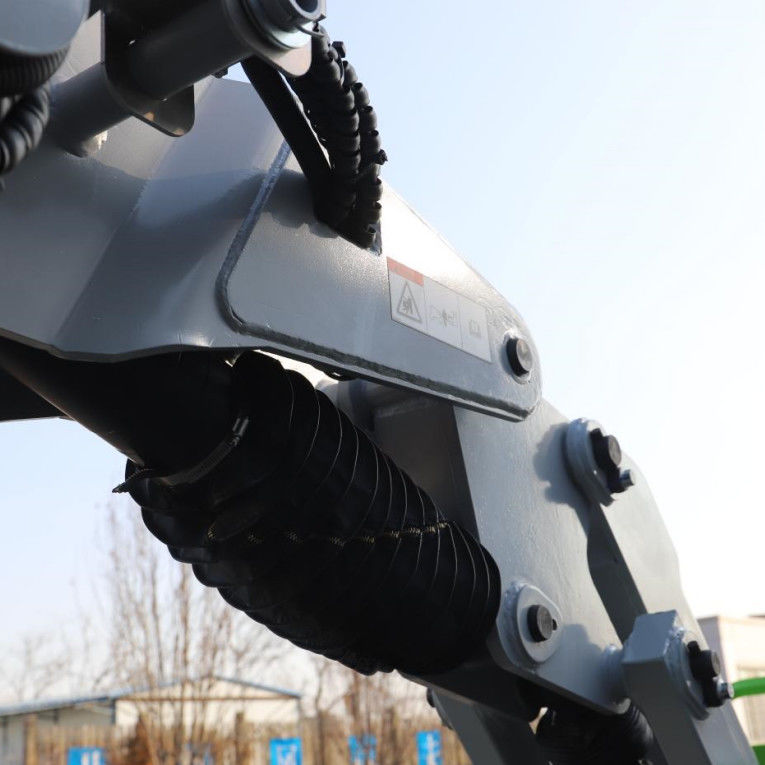

3. The boom lift has an articulating arm, allowing it to reach high and hard-to-reach areas with flexibility.
4. It also has a large platform that can accommodate multiple workers and their tools, providing a spacious and safe working environment.
5. The lift is equipped with controls that are easy to operate, allowing precise positioning and manoeuvrability.
6. Additionally, it has safety features such as guardrails and emergency stop buttons to ensure the well-being of the operators.
Model | AB45J |
Size | Metric |
Maximum Working Height | 47.1m |
Maximum Platform Height | 45.1m |
Maximum Horizontal Outreach | 23m |
Maximum Up & Over Clearance | 19.5m |
Platform Size | 2.44X0.91m |
B)Length-Stowed(jib stowed/extended) | 11.6m/14.7m |
Width(axle retracted/extended) | 2.5m/5.1m |
A)Height-Stowed | 3.17m |
Wheelbase | 5.6m |
Ground Clearance | 0.4m |
Performance | |
Maximum Lifting Capacity/(Non-restricted) | 480Kg/230Kg |
Maximum Platform Occupancy | 2ppls |
Platform Rotation | ±90° |
Vertical Jib Rotation | 140° |
Turntable Rotation | 360°Continuous |
Drive Speed-Stowed | 4.4Km/h |
Drive Speed-Raised | 1.1Km/h |
Gradeability | 40% |
Maximum Working Slope | 5° |
Turning Radius -inside(axle retracted/extended) | 7.6m/2.69m |
Turning Radius -outside(axle retracted/extended) | 10m/7.07m |
Drive & Steer Mode | 4X4X4 |
Tire Size | 445/65-24 |
Power | |
Power Supply | 55Kw@2400rpm~2600rpm |
Fuel Tank Capacity | 200L |
Hydraulic Oil Tank Capacity | 250L |
Control Voltage | 24V |
Weight | |
Machine Weight | 26110Kg |
Standard Compliance | |
EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
