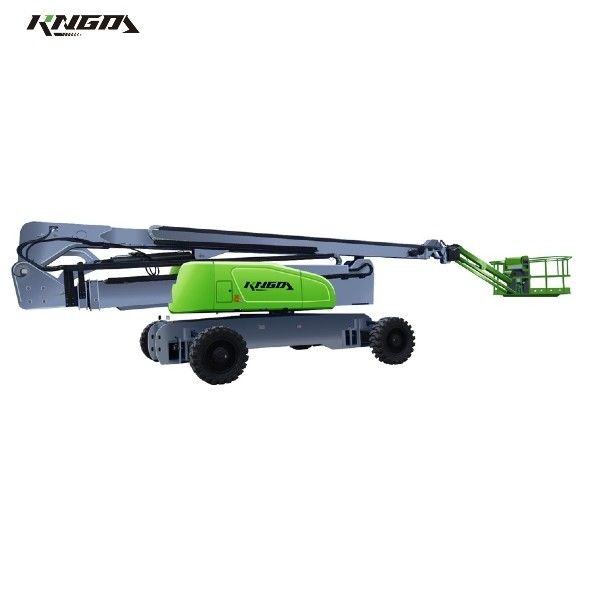

Diesel Articulating Boom Lift Platform Height 45.1m
Product Features
1. A medium to large-size diesel articulating boom lift is a piece of equipment used in construction or maintenance work to lift people or objects to higher places.

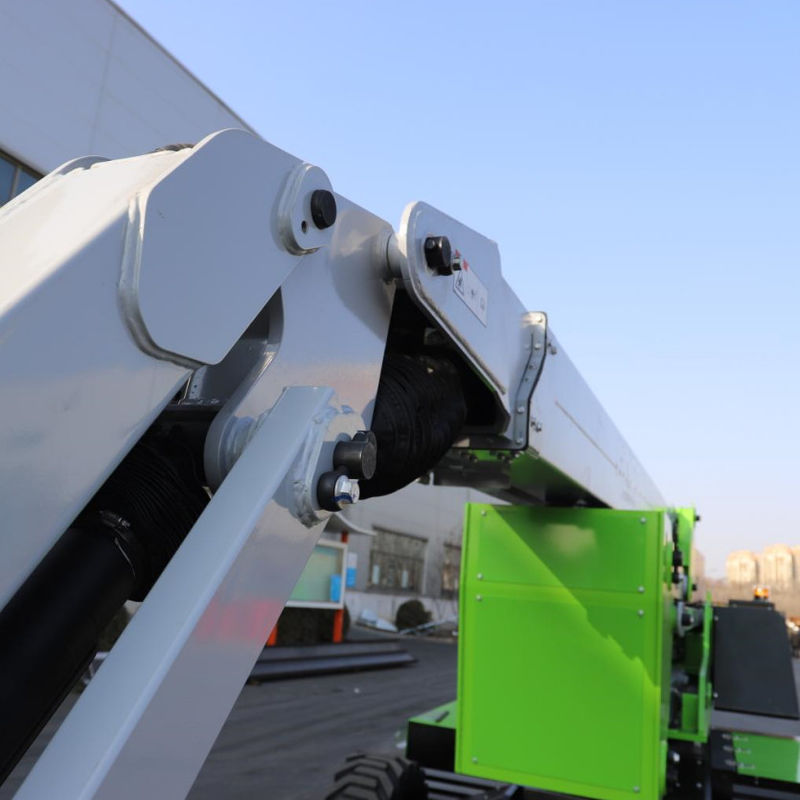

2. It is powered by a diesel engine and has a boom arm that can extend and rotate in different directions.
3. This allows for more flexibility and reach when working at heights.

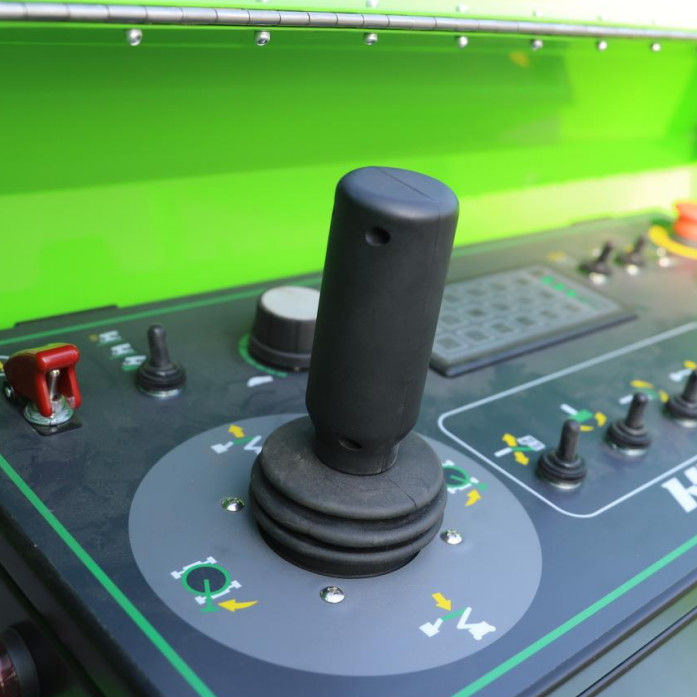

4. The lift also has a spacious platform with guardrails for safety, and it is equipped with various controls for easy operation.
5. It is designed to handle heavier loads and can be used in outdoor environments.
Model | AB45J |
Size | Metric |
Maximum Working Height | 47.1m |
Maximum Platform Height | 45.1m |
Maximum Horizontal Outreach | 23m |
Maximum Up & Over Clearance | 19.5m |
Platform Size | 2.44X0.91m |
B)Length-Stowed(jib stowed/extended) | 11.6m/14.7m |
Width(axle retracted/extended) | 2.5m/5.1m |
A)Height-Stowed | 3.17m |
Wheelbase | 5.6m |
Ground Clearance | 0.4m |
Performance | |
Maximum Lifting Capacity/(Non-restricted) | 480Kg/230Kg |
Maximum Platform Occupancy | 2ppls |
Platform Rotation | ±90° |
Vertical Jib Rotation | 140° |
Turntable Rotation | 360°Continuous |
Drive Speed-Stowed | 4.4Km/h |
Drive Speed-Raised | 1.1Km/h |
Gradeability | 40% |
Maximum Working Slope | 5° |
Turning Radius -inside(axle retracted/extended) | 7.6m/2.69m |
Turning Radius -outside(axle retracted/extended) | 10m/7.07m |
Drive & Steer Mode | 4X4X4 |
Tire Size | 445/65-24 |
Power | |
Power Supply | 55Kw@2400rpm~2600rpm |
Fuel Tank Capacity | 200L |
Hydraulic Oil Tank Capacity | 250L |
Control Voltage | 24V |
Weight | |
Machine Weight | 26110Kg |
Standard Compliance | |
EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
The Aerial Work Platform Production Line
1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics
3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
