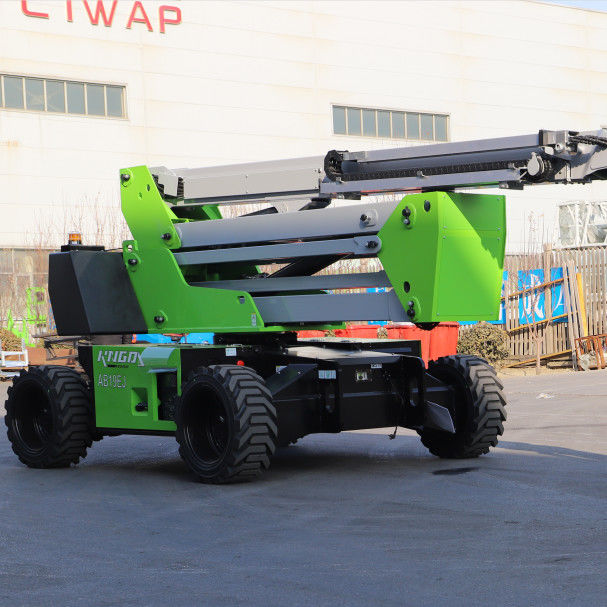

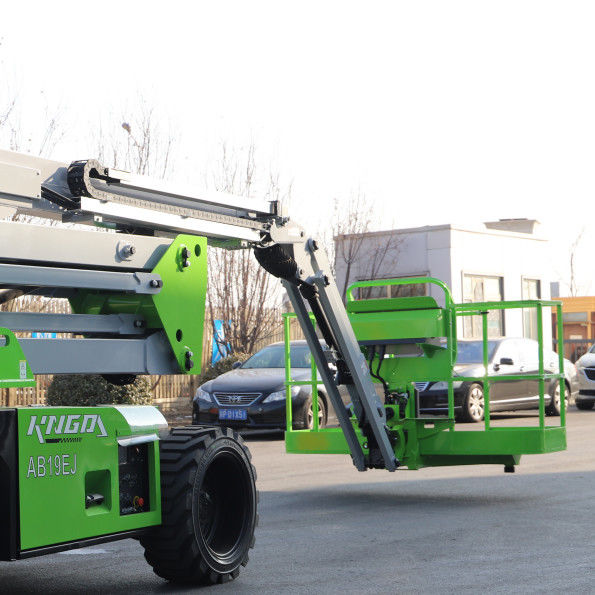

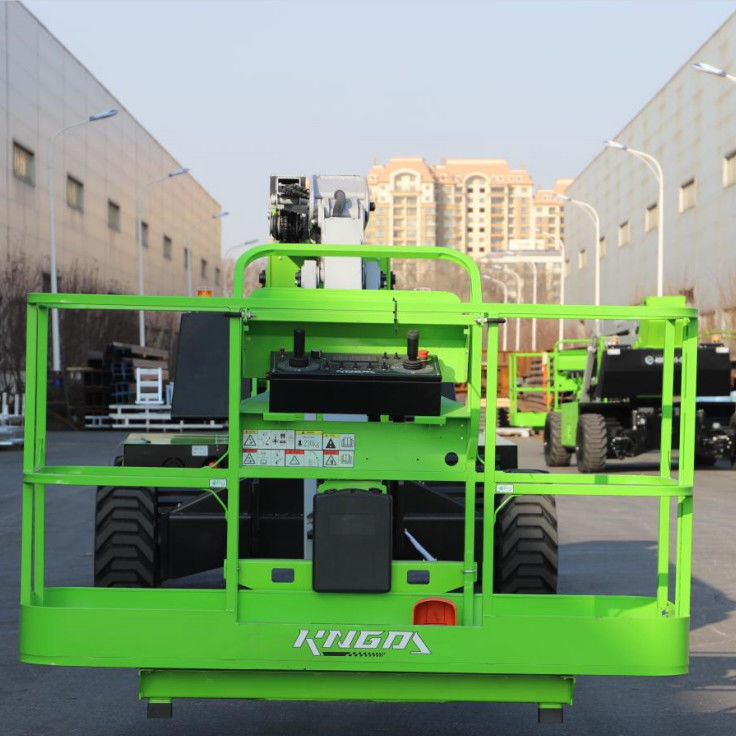

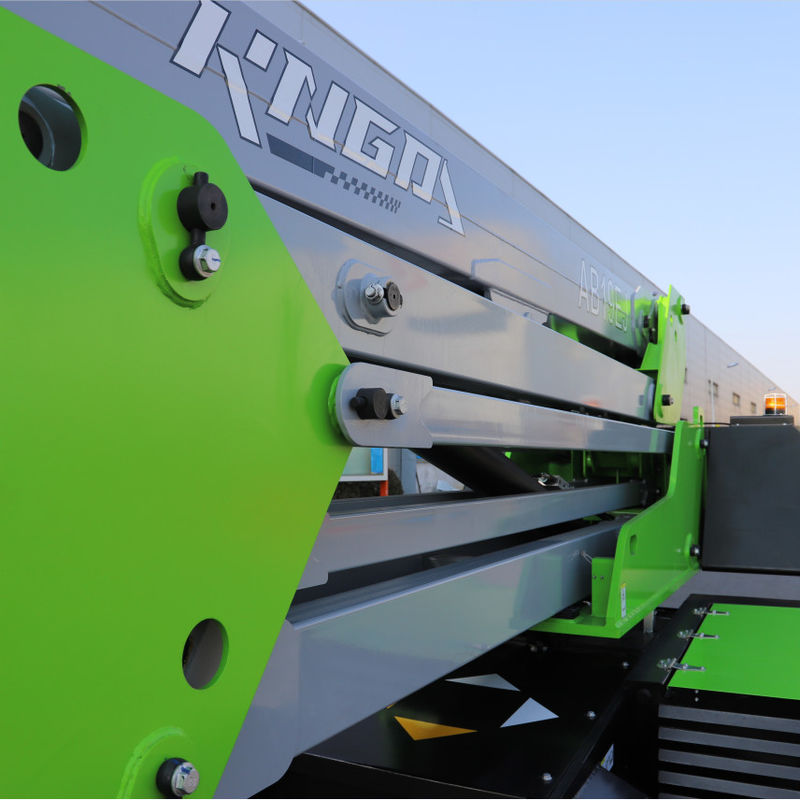

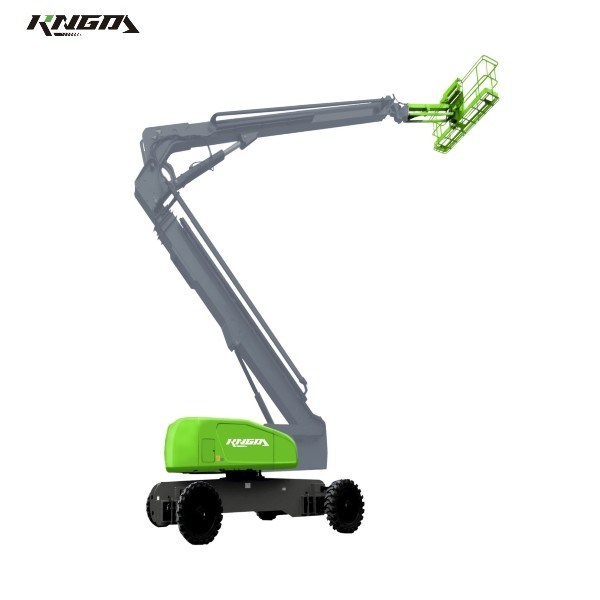

KINGDA Diesel Articulating Boom Lift 55.8m

KINGDA Diesel Articulating Boom Lift 55.8m

  • High Light

    Diesel Articulating Boom Lift 55.8m


    KINGDA Diesel Articulating Boom Lift


    55.8m Boom Lift

  • Platform Height
  • Weight
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

KINGDA Diesel Articulating Boom Lift 55.8m


Diesel Articulating Boom Lift Maximum Working Height 55.8m



Product Features

1. The Medium - Large Size Diesel Articulating Boom Lift is a powerful piece of equipment used in construction or maintenance work. It has a diesel engine that provides the necessary power for lifting and moving.
2. One of its main features is its articulating boom, which can extend and bend in different directions. This allows the lift to reach high and difficult-to-access areas.
3. The lift also has a spacious and sturdy platform where workers can stand comfortably and safely. It is equipped with guardrails to prevent falls and an emergency stop button for immediate safety.
4. With its large size, the lift can handle heavier loads and reach greater heights. It is designed to be durable and reliable, making it suitable for various demanding tasks.
5. Overall, the Medium - Large Size Diesel Articulating Boom Lift offers versatility, power, and safety for efficient and effective work at elevated heights.


KINGDA Diesel Articulating Boom Lift 55.8m 0

Model AB54J
Size Metric
Maximum Working Height 55.8m
Maximum Platform Height 53.8m
Maximum Horizontal Outreach 25m
Maximum Up & Over Clearance 20m
Platform Size 2.44X0.91m
B)Length-Stowed(jib stowed/extended) 12m/15.06m
Width(axle retracted/extended) 2.5m/5.1m
A)Height-Stowed 3.4m
Wheelbase 5.6m
Ground Clearance 0.4m
Maximum Lifting Capacity/(Non-restricted) 480Kg/230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 140°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.6Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 40%
Maximum Working Slope
Turning Radius -inside(axle retracted/extended) 7.6m/2.69m
Turning Radius -outside(axle retracted/extended) 10m/7.07m
Drive & Steer Mode 4X4X4
Tire Size 445/65-24
Power Supply 74Kw@2200rpm
Fuel Tank Capacity 200L
Hydraulic Oil Tank Capacity 250L
Control Voltage 24V
Machine Weight 29800Kg
Standard Compliance
EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.




The Aerial Work Platform Production Line

1. Full Capacity for Production Processing: Professional Manufacturing Equipments to ensure customers one-stop cooperation
2. High Quality & Efficiency: High consistency of processing quality, to ensure efficiency and high precision machining characteristics

3. It plays a crucial role in providing safe and efficient equipment for various industries, such as construction, maintenance, and utilities. The production line's commitment to quality and innovation ensures that customers receive reliable and high-performing aerial work platforms for their specific needs.
