53.8m Platform Height Hydraulic Boom Lift Hydraulic Man Lift 4WD Diesel


Diesel Articulating Boom Lift Platform Height 53.8m, Gradeability 40%



Product Features

1. A Diesel Articulating Boom Lift is a type of equipment used in construction or maintenance work to lift people or objects to high and difficult-to-reach places. It is powered by a diesel engine, which allows it to operate outdoors and in areas without electrical power sources.

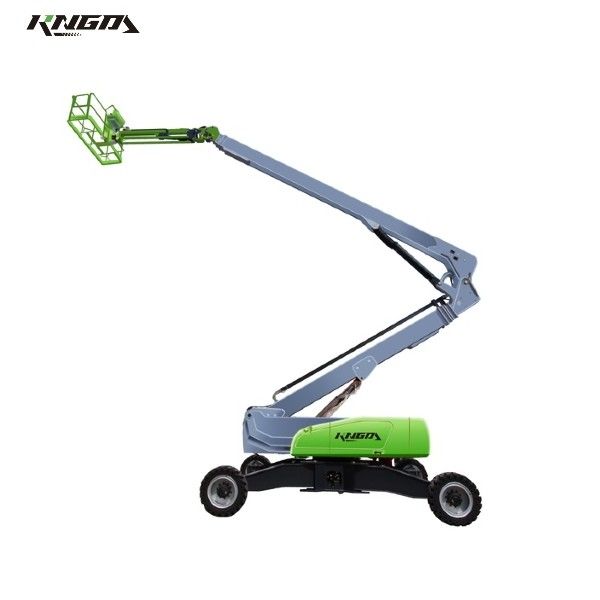

2. The main feature of a Diesel Articulating Boom Lift is its ability to articulate or bend in multiple directions. This allows the operator to reach over obstacles or access areas with limited space. It has a telescopic boom that can extend vertically and horizontally, providing a wide range of movement.
3. The lift is mounted on a chassis with wheels or tracks, making it easy to move around the job site. It has a control panel with intuitive buttons and switches, allowing the operator to raise, lower, and manoeuvre the lift with precision.

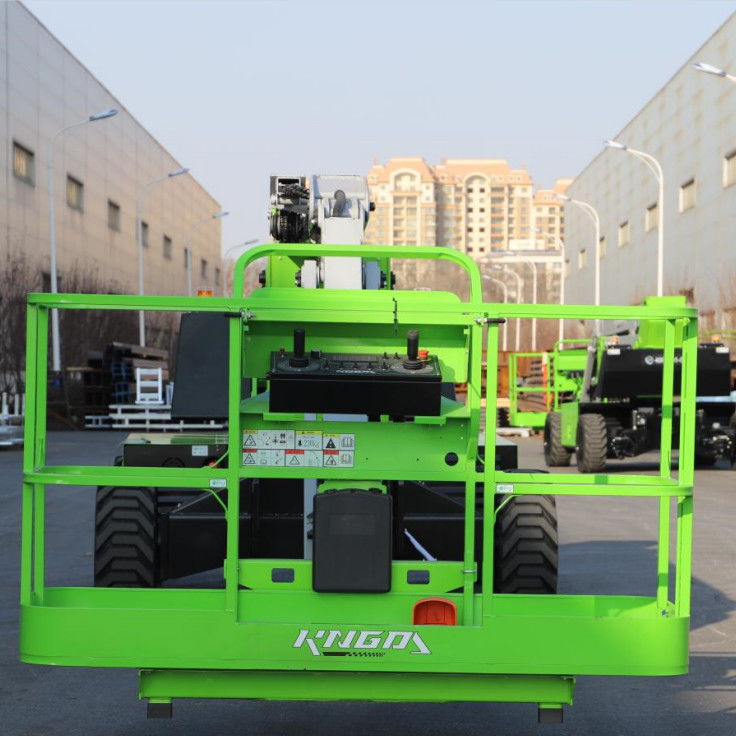

4. Safety is also a key feature of a Diesel Articulating Boom Lift. It is equipped with stabilizers or outriggers to keep it steady during operation. It has a spacious platform with guardrails to provide a secure working area. Emergency stop buttons are installed for immediate shutdown in case of any danger.


53.8m Platform Height Hydraulic Boom Lift Hydraulic Man Lift 4WD Diesel 0

Model AB54J
Size Metric
Maximum Working Height 55.8m
Maximum Platform Height 53.8m
Maximum Horizontal Outreach 25m
Maximum Up & Over Clearance 20m
Platform Size 2.44X0.91m
B)Length-Stowed(jib stowed/extended) 12m/15.06m
Width(axle retracted/extended) 2.5m/5.1m
A)Height-Stowed 3.4m
Wheelbase 5.6m
Ground Clearance 0.4m
Maximum Lifting Capacity/(Non-restricted) 480Kg/230Kg
Maximum Platform Occupancy 2ppls
Platform Rotation ±90°
Vertical Jib Rotation 140°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.6Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 40%
Maximum Working Slope
Turning Radius -inside(axle retracted/extended) 7.6m/2.69m
Turning Radius -outside(axle retracted/extended) 10m/7.07m
Drive & Steer Mode 4X4X4

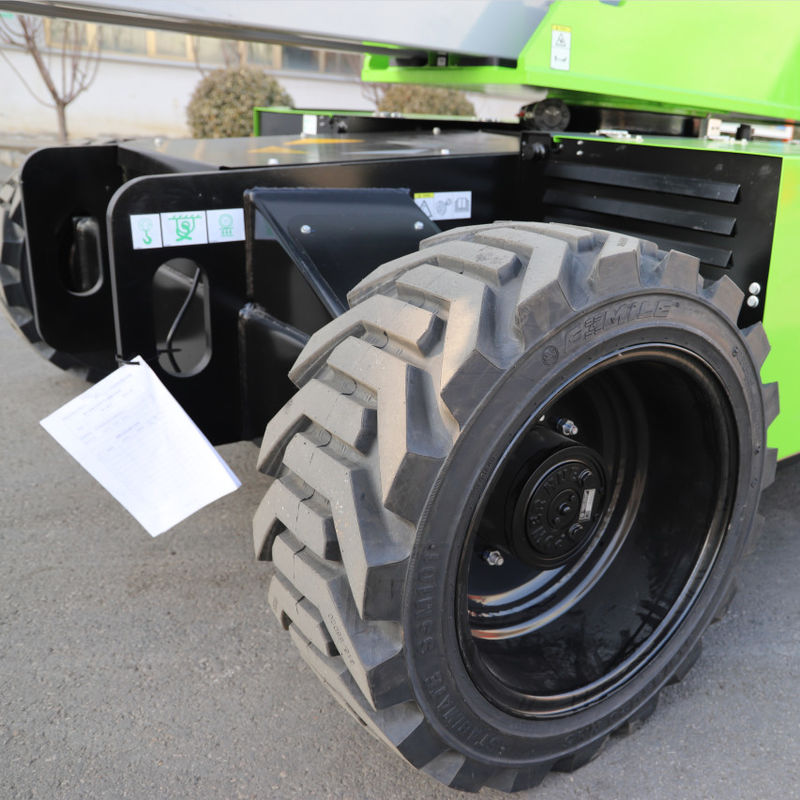

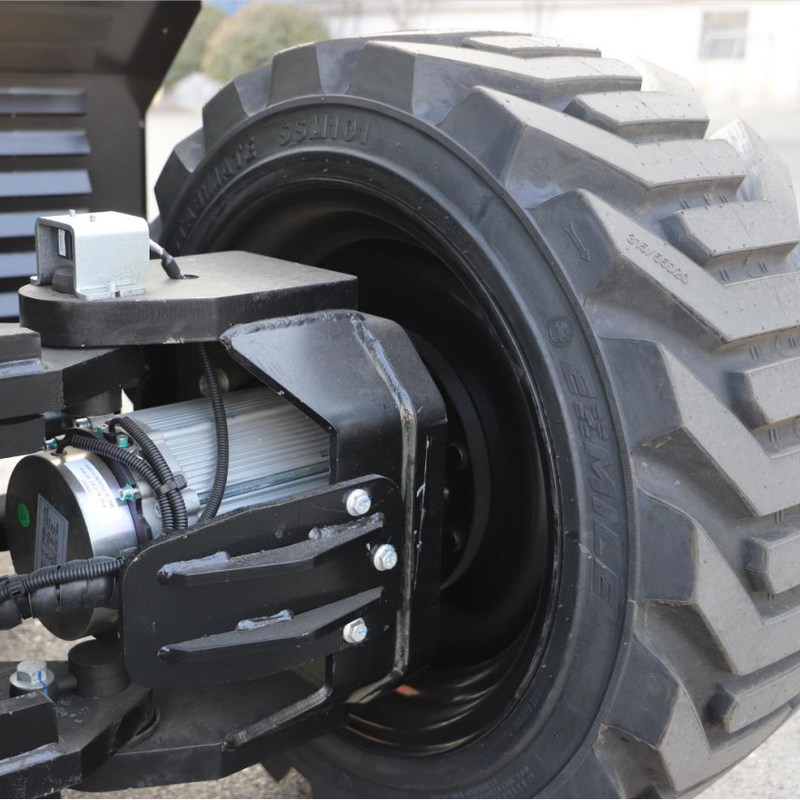

Tire Size 445/65-24
Power Supply 74Kw@2200rpm
Fuel Tank Capacity 200L
Hydraulic Oil Tank Capacity 250L
Control Voltage 24V
Machine Weight 29800Kg
Standard Compliance
EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
