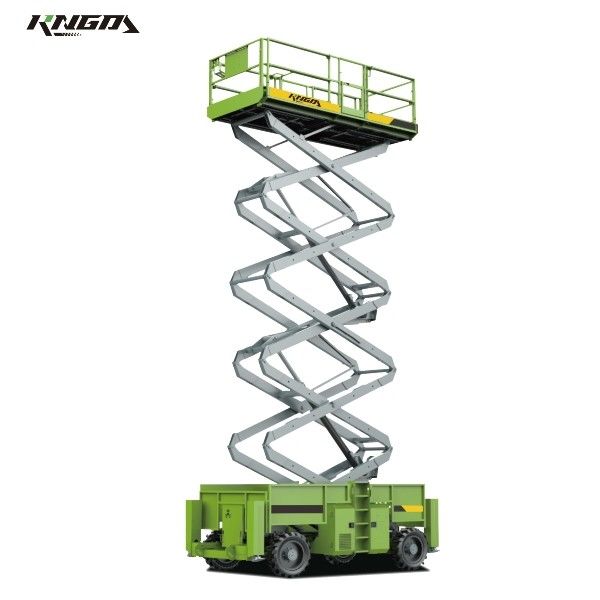

Rough Terrain Scissor Lift Max Working Height 12.0m
Product Features
● Electrophoresis treatment is adopted on the structural parts of the whole machine, and the anti-corrosion performance is way better than that of similar products.
●Having a higher working height with the same number of fork arms allows for increased productivity and efficiency in various applications.
●The balance valve ensures a more stable travel braking, enhancing the overall safety of the lift during operation.
●The double load system is a great addition as it maximizes the equipment's efficiency, enabling it to handle heavier loads effectively. The inclusion of standard forklift side holes and special lifting points makes equipment loading and unloading much easier and more convenient.
●The design of the central fork arm is a smart choice as it improves the stability and comfort of the platform. This ensures a smooth and secure working experience for the operator.
●Overall, these features make the lift a reliable and efficient choice for various outdoor applications, providing operators with a safe and comfortable working environment while maximizing productivity.
Model | RS1023DS |
Size | Metric |
Maximum Working Height | 12.0m |
Maximum Platform Height | 10.0m |
C)Platform Length | 3.98m |
D)Platform Extended Length | 6.57m |
G)Platform Width | 1.83m |
B)Height-Stowed | 2.75m |
F/E)Platform Extension(front/rear) | 1.52m/1.22m |
A)Width | 2.27m |
Length | 4.88m/3.98m |
Wheelbase | 2.86m |
H)Ground Clearance | 0.36m |
Performance | |
Platform Capacity | 1000Kg |
Capacity on Extension | 230Kg |
Drive Speed | 5.6km/h |
Grade ability | 50% |
Raise/Lower Speed | 45/29sec |
Turning Radius (inside &outside) | 2.16m/5.33m |
Tyre Size | 84X30cm |
Power | |
Power Supply | Diesel Engine |
Fuel Tank Capacity | 110L |
d Oil Tank Capacity | 110L |
Weight | |
Weight Machine | 5913Kg |
Standard Configuration | ||
Proportional control | Emergency descent system | Smart charger |
Bidirectional extension platform | Stopwatch | Action buzzer |
Folding fence platform | Safety maintenance-bracing piece | Emergency stop system |
Platform self-locking door | 4X2 Double frontal wheel electric drive | Automatic braking system |
Charging protection system | Maintenance Free battery | Horn |
Fault diagnosis system | Standard transport forklift holes | Stroboscope light |
Oil tube explosion-proof system | Solid traceless tyres | Tilt protection system |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
