Working Height 12.0m Hydraulic Rough Terrain Scissor Lift Load 1000kg AWP
-
High Light
12.0m Hydraulic Rough Terrain Scissor Lift
,Rough Terrain Scissor Lift 1000kg
,1000kg Scissor Lift
-
Load Capacity1000KG
-
Gradeability50%
-
Platform Height10m
-
Tire TypeRough
-
Place of OriginCHINA
-
Brand NameKINGDA
-
CertificationCE
-
Model NumberRS1023DS
-
Minimum Order Quantity1 UNIT
-
Price（TBD）USD
-
Packaging DetailsExport packing
-
Delivery Time60 Days
-
Payment TermsT/T
-
Supply AbilityNO LIMITED

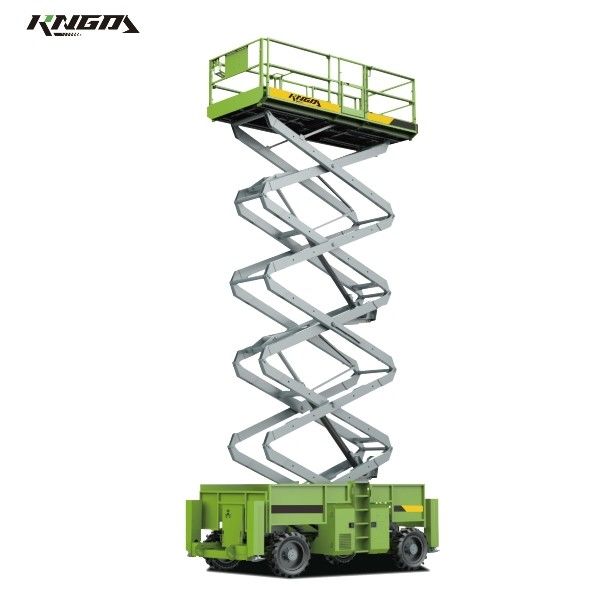

Working Height 12.0m Hydraulic Rough Terrain Scissor Lift Load 1000kg AWP
Rough Terrain Scissor Lift Working Height 12.0m Load 1000kg
Product Features
● Equipped with large, rugged tyres for excellent all-terrain capability
● Extended working height allows for reaching higher areas
● Enhanced safety features such as emergency stop buttons and safety rails
● Excellent manoeuvrability with a tight turning radius
● Operator comfort is prioritized with ergonomic controls and adjustable seating
● Environmentally friendly with low emissions and noise levels
● Durable construction for long-lasting performance
● Easy to maintain with accessible components and service points
● Can be equipped with versatile attachments for additional functionality in various applications.
| Model | RS1023DS |
| Size | Metric |
| Maximum Working Height | 12.0m |
| Maximum Platform Height | 10.0m |
| C)Platform Length | 3.98m |
| D)Platform Extended Length | 6.57m |
| G)Platform Width | 1.83m |
| B)Height-Stowed | 2.75m |
| F/E)Platform Extension(front/rear) | 1.52m/1.22m |
| A)Width | 2.27m |
| Length | 4.88m/3.98m |
| Wheelbase | 2.86m |
| H)Ground Clearance | 0.36m |
| Performance | |
| Platform Capacity | 1000Kg |
| Capacity on Extension | 230Kg |
| Drive Speed | 5.6km/h |
| Grade ability | 50% |
| Raise/Lower Speed | 45/29sec |
| Turning Radius (inside &outside) | 2.16m/5.33m |
| Tyre Size | 84X30cm |
| Power | |
| Power Supply | Diesel Engine |
| Fuel Tank Capacity | 110L |
| Hydraulic Oil Tank Capacity | 110L |
| Weight | |
| Weight Machine | 5913Kg |
| Standard Configuration | ||
| Proportional control | Emergency descent system | Smart charger |
| Bidirectional extension platform | Stopwatch | Action buzzer |
| Folding fence platform | Safety maintenance-bracing piece | Emergency stop system |
| Platform self-locking door | 4X2 Double frontal wheel electric drive | Automatic braking system |
| Charging protection system | Maintenance Free battery | Horn |
| Fault diagnosis system | Standard transport forklift holes | Stroboscope light |
| Oil tube explosion-proof system | Solid traceless tyres | Tilt protection system |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
