Platform Working Height 8m Self-Propelled Scissor Raise 24V DC

Products - Self-propelled Scissor Lift

High Light

8m Self-Propelled Scissor Raise
,
Self-Propelled Scissor Raise 24V DC
,
8m Scissor Lift
Place of Origin

CHINA
Brand Name

KINDA
Certification

CE
Model Number

JDS0607HM
Minimum Order Quantity

1 UNIT
Price

Negotiation
Packaging Details

EXPORT PACKING
Delivery Time

60 DAYS
Payment Terms

T/T
Supply Ability

NO LIMITED

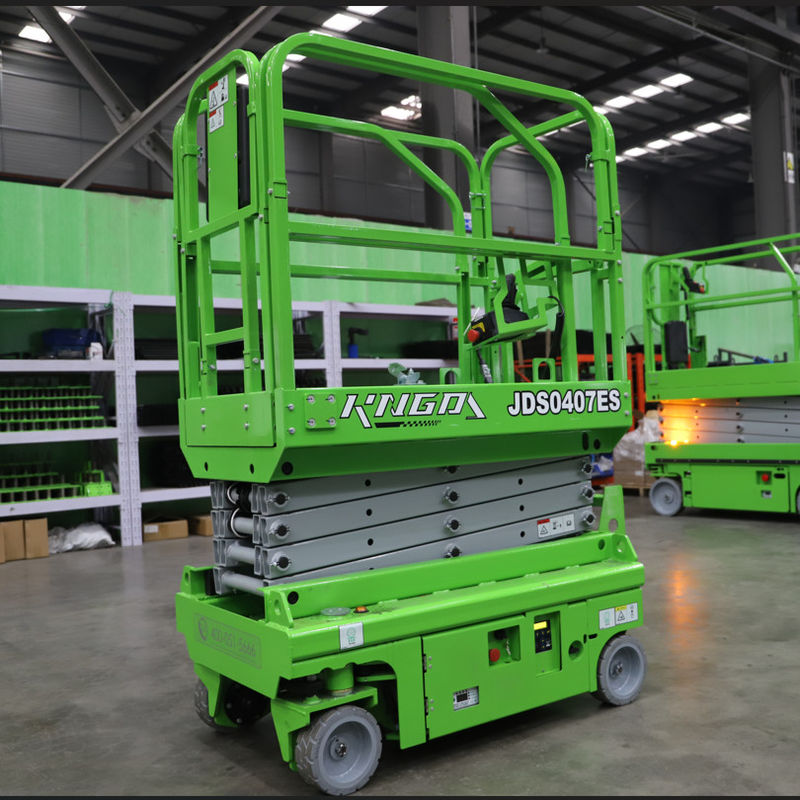

Platform Working Height 8m Self-Propelled Scissor Raise 24V DC

button button

Get Price Contact Now

Self-propelled Scissor Lift platform working height 8m 24V DC

Product Main Features

● Electrophoresis treatment is adopted on the structural parts of the whole machine, and the anti-corrosion performance is way better than that of similar products.
● Higher working height with the same number of fork arms.
● Electrically driven walking, more stable travel braking.
● Double load system to maximize the efficiency of equipment.
● Standard forklift holes and special lifting points for ease of equipment loading and unloading.
● The design of the central fork arm can effectively improve the stability and comfort of the platform.
● High-strength steel is used in key parts to improve the overall strength.

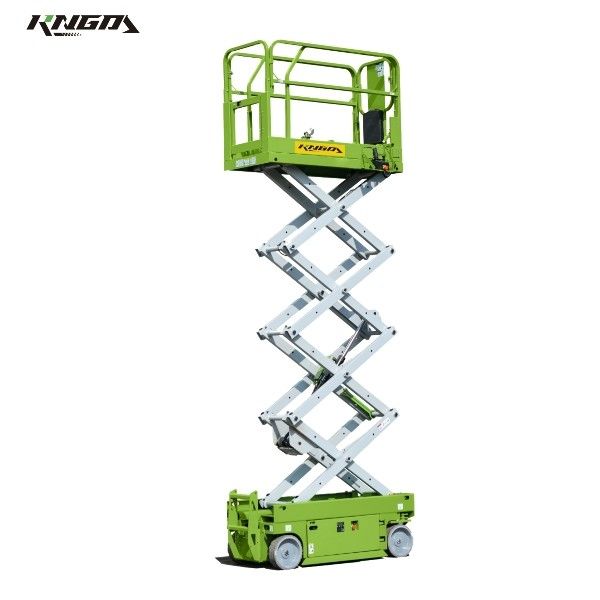

Platform Working Height 8m Self-Propelled Scissor Raise 24V DC 0

Model	JDS0607HM
Size	Metric
A) Maximum Working Height	7.9m
B) Maximum Platform Height	5.9m
Platform Height-Stowed	1.1m
C) Platform Length	1.7m
Length Extended	2.56m
D) Platform Width	0.76m
Rail Height	1.1m
E) Height-Stowed (Rail unfolded)	2.2m
Height-Stowed (Rail folded)	1.78m
F) Length-Stowed	1.84m
Width	0.81m
Wheelbase	1.32m
Ground Clearance (Pothole protection lay down)	0.02m
Ground Clearance Center	0.08m
Performance
Platform Occupancy(indoor/outdoor)	2/1
Wind Speed	12.5m/s
Platform Capacity	230Kg
Extension Platform Capacity	100Kg
Drive Speed-Stowed	3.5Km/h
Drive Speed-Raised	0.8Km/h
Grade ability-Stowed	25%
Min Turning Radius-inside	0m
Min Turning Radius-outside	1.5m
Raise/Lower Speed	25s/35s
Controls	Proportional control
Drive	2-Front wheels
Tyre Size	0.323mx0.1m
Power
Power Supply	24V DC 4x6V Battery
Hydraulic Reservoir Capacity	8L
Sound &Vibration
Sound Pressure Level(ground)	<70dB
Sound Pressure Level(platform)	<70dB
Vibration	2.5m/s²
Machine Weight	1290kg
Standards Compliance	EN280 GB/T 25849

Standard Configuration
Proportional control	Emergency descent system	Action buzzer
Bidirectional extension platform	Automatic braking system	Solid traceless tyres
Folding fence platform	Safety maintenance-bracing piece	Smart charger
Platform self-locking door	4X2 Double frontal wheel electric drive	Horn
Charging protection system	Maintenance Free battery	Stroboscope light
Fault diagnosis system	Standard transport forklift holes	Tilt protection system
Oil tube explosion-proof system	Emergency stop system

Platform Working Height 8m Self-Propelled Scissor Raise 24V DC 1

※ The picture and technical information may vary by the update policy, the changes will be without prior notice.

Company Profile

JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.

HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
