2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP

2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP

Products - Self-propelled Scissor Lift
  • High Light

    2 Front-wheel Steering Scissor Lift

    ,

    Steering Scissor Lift 8.1M

    ,

    8.1M Scissor Lift

  • Platform Size
    2.29m X 1.14m
  • Steering
    Front-wheel Steering
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    JDS0812HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP

  • 2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP
  • 2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP
  • 2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP
  • 2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP
  • 2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP
Get Price Contact Now

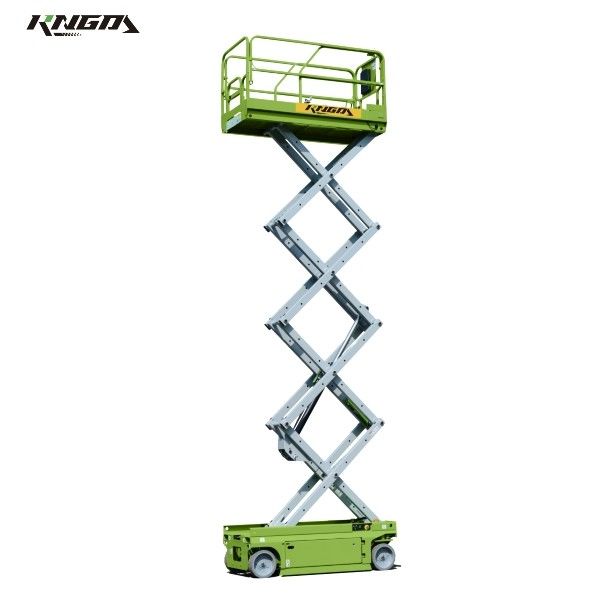

Self-propelled Scissor Lift Platform Height 8.1M 24V DC





Product Main Features



●A self-propelled scissor lift has a platform that can be raised or lowered using a scissor-like mechanism.
●The self-propelled feature means that it can move on its own without being pushed or pulled by another vehicle. It has wheels or tracks that allow it to be driven around easily, making it convenient for moving from one location to another.
●a self-propelled scissor lift has sturdy guardrails and non-slip surfaces to prevent accidents and ensure the safety of the workers.
●The controls of a self-propelled scissor lift typically include buttons or switches to raise or lower the platform, as well as a steering mechanism to move the lift in different directions.
●Overall, a self-propelled scissor lift combines mobility with stability, making it a valuable asset in construction, maintenance, and other industries.





2 Front-wheel Steering Scissor Lift Platform Height 8.1M 24V DC MEWP 0



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery



Model JDS0812HM
Size Metric
Maximum Working Height 10.1m
A)Maximum Platform Height 8.1m
B)Platform Height-Stowed 1.25m
C) Platform Length 2.29m
Length Extended 3.2m
D) Platform Width 1.14m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.35m
Height-Stowed (Rail folded) 1.82m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Performance
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 450Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 40s/50s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2440kg
Standards Compliance EN280 GB/T 25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
