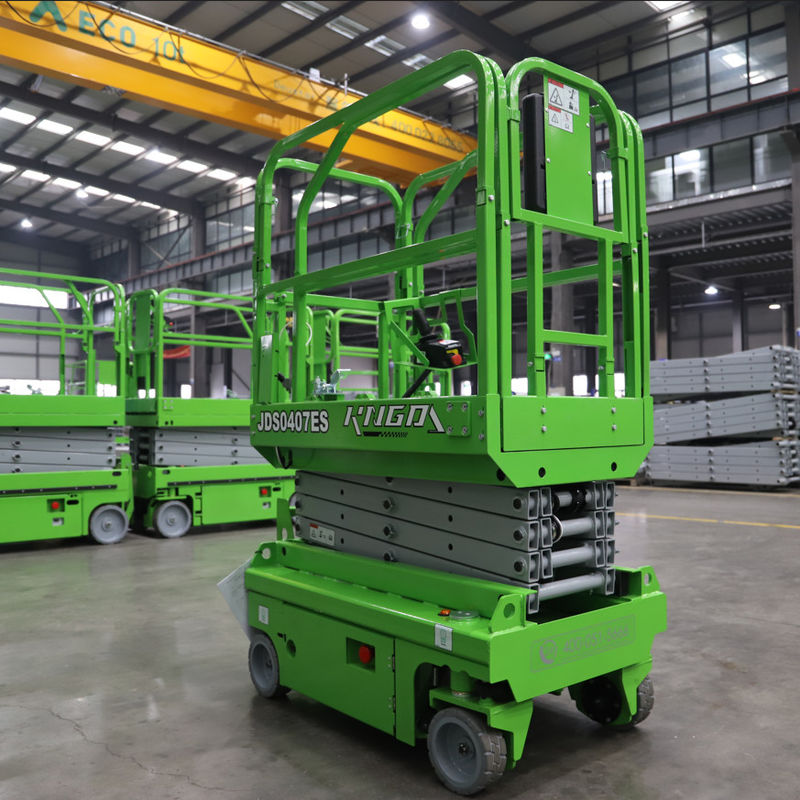

Personnel Lift Platform Height 4M Wheelbase 1M Self-Propelled Scissor Lift

Personnel Lift Platform Height 4M Wheelbase 1M Self-Propelled Scissor Lift

  • High Light

    4M Wheelbase Scissor Lift


    4M Wheelbase Self-propelled Scissor Lift


    1M Self-propelled Scissor Lift

  • Drive System
  • Lifting System
  • Power Source
  • Warranty
    One Year
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
  • Delivery Time
    60 DAYS
  • Payment Terms
  • Supply Ability

Personnel Lift Platform Height 4M Wheelbase 1M Self-Propelled Scissor Lift


Platform Height-4M Wheelbase-1M Self-propelled Scissor Lift





Product Main Features

1. Employing advanced electrophoresis treatment on its structural components, this machine boasts superior anti-corrosion performance compared to similar products in the market.
2. Achieving a heightened working capacity without compromising on the number of fork arms, providing enhanced versatility and efficiency.
3. Utilizing electrically driven walking for a smoother and more stable travel experience, coupled with reliable braking mechanisms.
4. Incorporating a double load system to optimize equipment efficiency, ensuring maximum productivity during operation.
5. Featuring standard forklift holes and specialized lifting points, facilitating effortless loading and unloading of equipment.
6. The central fork arm's innovative design significantly enhances platform stability and user comfort, making it an ideal choice for various applications.
7. Employing high-strength steel in crucial components to bolster overall strength, ensuring durability and longevity in demanding working conditions.

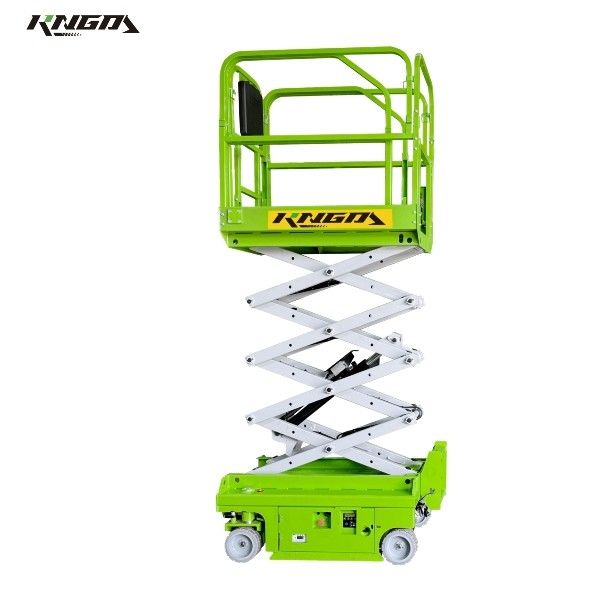

Personnel Lift Platform Height 4M Wheelbase 1M Self-Propelled Scissor Lift 0


Size Metric
Maximum Working Height 5.9m
Maximum Platform Height 3.9m
Platform Height-Stowed 0.94m
Platform Length 1.3m
Length Extended 1.9m
Platform Width 0.72m
Rail Height 1.1m
Height-Stowed (Rail unfolded) 1.9m
Height-Stowed (Rail folded) /
Length-Stowed 1.43m
Width 0.76m
Wheelbase 1m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center /
Performance /
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 240Kg
Extension Platform Capacity 100Kg
Drive Speed-Stowed 4.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0.4m
Min Turning Radius-outside 1.55m
Raise/Lower Speed 20s/24s
Controls Proportional control
Drive 2-Rear wheels
Tyre Size 0.23mx0.08m
Power Supply 24V DC 2×12V Battery
Hydraulic Reservoir Capacity 6L
Sound & Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 830kg
Standards Compliance EN280 GB/T 25849


Standard Configuration
Proportional control Emergency descent system
Bidirectional extension platform Automatic braking system
Emergency stop system Safety maintenance bracing piece
Platform self-locking door 4X2 Double frontal wheel electric drive
Smart charger Maintenance Free battery
Action buzzer Standard transport forklift holes
Oil tube explosion-proof system Solid traceless tyres
Stroboscope light Horn


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.





Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.

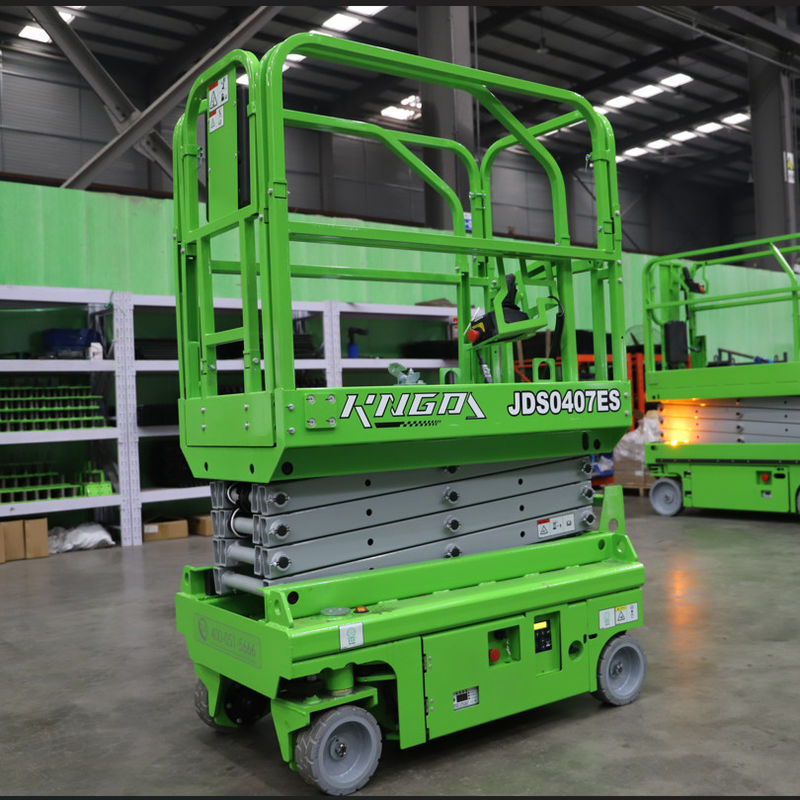

Personnel Lift Platform Height 4M Wheelbase 1M Self-Propelled Scissor Lift 1
