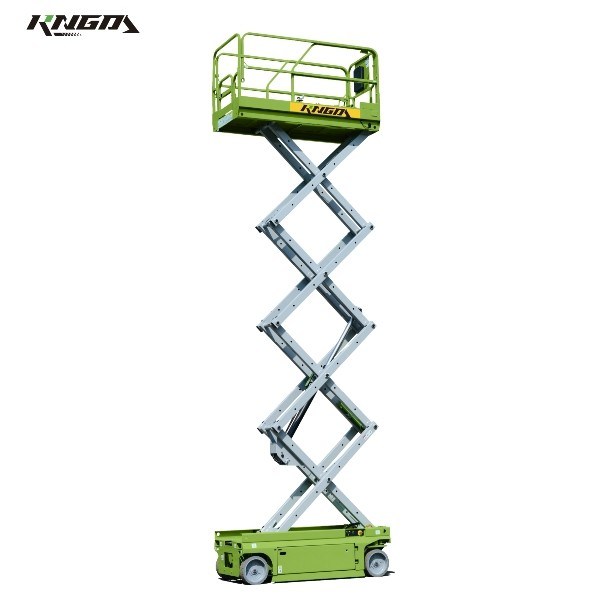

2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise

2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise

Products - Self-propelled Scissor Lift
  • High Light

    2200kg Scissor Lift

    ,

    2200kg Self-Propelled Scissor Raise

    ,

    10.1M Self-Propelled Scissor Raise

  • Gradeability
    25%
  • Warranty
    One Year
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    JDS0808HM
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise

  • 2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise
  • 2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise
  • 2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise
Get Price Contact Now



Self-propelled Scissor Lift Platform Height 8.1M







Product Main Features



1. Picture this: a cutting-edge self-propelled scissor lift, a marvel of machinery designed to hoist both individuals and hefty materials to dizzying heights with unparalleled efficiency.

2. Behold its robust platform, capable of seamless vertical movement, all powered by its mighty engine. No hand-holding is required, as it autonomously navigates its way around, a true beacon of independence.

3. With wheels at its disposal, this powerhouse of a lift glides effortlessly from one locale to another, a symbol of mobility and adaptability.

4. Safety first is the mantra of this technological wonder, boasting sturdy guardrails and a fail-safe safety brake, ensuring peace of mind for all who dare to ascend.

5. From bustling construction sites to bustling warehouses, this versatile scissor lift reigns supreme in environments where the sky's the limit and toil takes place at soaring altitudes.

2200kg Working Height 10.1M Staff Lift Self-Propelled Scissor Lift Raise 0



Model JDS0808HM
Size Metric
Maximum Working Height 10.1m
A)Maximum Platform Height 8.1m
B)Platform Height-Stowed 1.25m
C) Platform Length 2.29m
Length Extended 3.2m
D) Platform Width 0.8m
Rail Height 1.1m
E) Height-Stowed (Rail unfolded) 2.35m
Height-Stowed (Rail folded) 1.82m
F) Length-Stowed 2.47m
Width 1.15m
Wheelbase 1.87m
Ground Clearance (Pothole protection lay down) 0.02m
Ground Clearance Center 0.09m
Performance
Platform Occupancy(indoor/outdoor) 2/1
Wind Speed 12.5m/s
Platform Capacity 450Kg
Extension Platform Capacity 120Kg
Drive Speed-Stowed 3.5Km/h
Drive Speed-Raised 0.8Km/h
Grade ability-Stowed 25%
Min Turning Radius-inside 0m
Min Turning Radius-outside 2.1m
Raise/Lower Speed 40s/50s
Controls Proportional control
Drive 2-Front wheels
Tyre Size 0.381mx0.127m
Power
Power Supply 24V DC 4x6V Battery
Hydraulic Reservoir Capacity 20L
Sound &Vibration
Sound Pressure Level(ground) <70dB
Sound Pressure Level(platform) <70dB
Vibration 2.5m/s²
Machine Weight 2200kg
Standards Compliance EN280 GB/T 25849



Standard Configuration
Proportional control Emergency descent system Action buzzer
Bidirectional extension platform Safety maintenance-bracing piece Emergency stop system
Folding fence platform 4X2 Double frontal wheel electric drive Automatic braking system
Platform self-locking door Smart charger Charging protection system
Fault diagnosis system Standard transport forklift holes Stroboscope light
Oil tube explosion-proof system Solid traceless tyres Tilt protection system
Maintenance Free battery Horn



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.











Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products, and our mission is to terminate hazardous aerial work company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
