Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M

Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M

Products - Diesel Telescopic Boom Lift
  • High Light

    1.83X0.76m Diesel telescoping boom lift

    ,

    Diesel telescoping boom lift 16M

    ,

    1.83X0.76m boom lift

  • Drive Speed
    4.8km/h
  • Working Height
    16m
  • Place of Origin
    CHINA
  • Brand Name
    KINGDA
  • Certification
    CE
  • Model Number
    TB14J
  • Minimum Order Quantity
    1 UNIT
  • Price
    （TBD）USD
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
    T/T
  • Supply Ability
    NO LIMITED

Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M

  • Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M
  • Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M
  • Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M
Get Price Contact Now

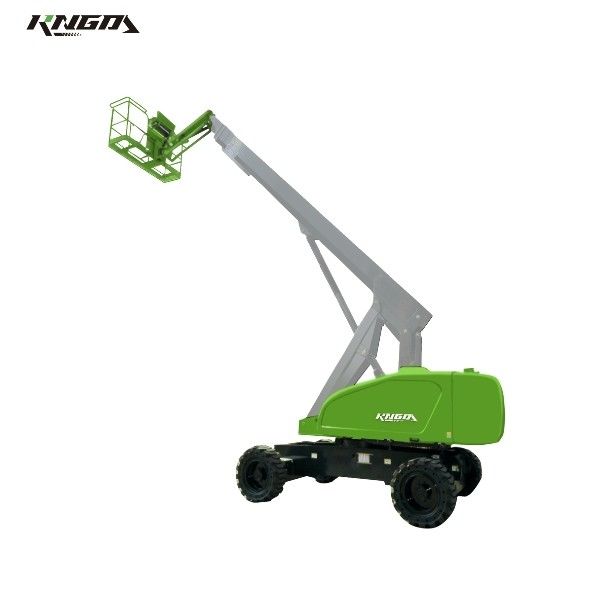

Diesel Telescopic Boom Lift Working16M Platform Size1.83X0.76m




Product Features



1. The compact design of the small-sized diesel telescopic boom lift allows for easy transportation and storage on job sites.

2. Its powerful diesel engine provides reliable and consistent performance, even in challenging work conditions.

3. The user-friendly controls of the telescopic boom lift make it simple for operators to adjust the height and reach of the platform.

4. With its versatile nature, the boom lift can be used for tasks such as painting, maintenance, and installation work with precision.

Platform Size 1.83X0.76m Diesel Telescoping Boom Lift Working 16M 0

Model TB14J
Size Metric
Maximum Working Height 16m
Maximum Platform Height 14m
Maximum Horizontal Outreach 12.6m
Platform Size 1.83X0.76m
B)Length-Stowed 8.55m
Width-Stowed 2.38m
A)Height-Stowed 2.63m
Wheelbase 2.4m
Ground Clearance(Center) 0.42m
Performance
Maximum Lifting Capacity 230Kg
Maximum Platform Occupancy 2 ppl
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 355°
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius (inside) 1.87m
Turning Radius (outside) 4.9m
Drive &Steer Mode 4X4X2Tyre
e Size 33X12-20
Power
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 160L
Control Voltage 12V
Weight
Machine Weight 7500Kg
Standard Compliance EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.









Company Profile



JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
