Mewp Diesel Telescopic Lift Max Platform Height 61m boom platform

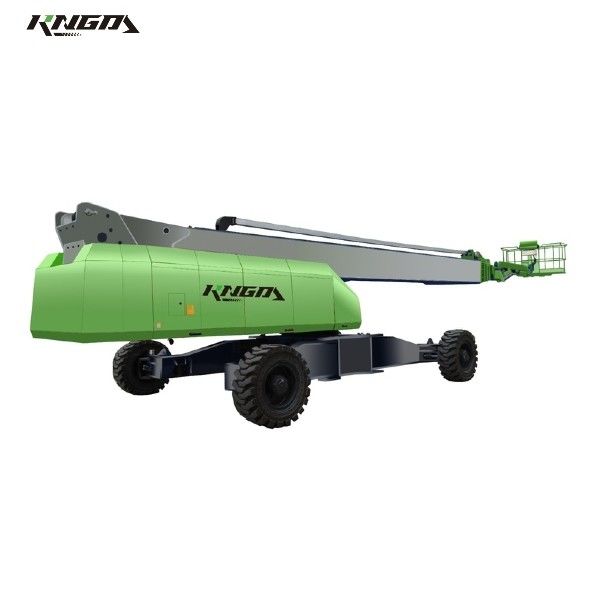

Diesel Telescopic Boom Lift Max Platform Height 61m
Product Features
●A medium and large diesel telescopic boom lift is a medium to large-sized machine, meaning it is bigger and more powerful than smaller boom lifts. This makes it suitable for tasks that require lifting heavy loads or reaching greater heights.
●This boom lift runs on diesel fuel. This provides it with a strong and reliable source of power, making it suitable for outdoor use or in areas with limited access to electricity.
●Telescopic boom: The boom of this lift can be extended and retracted, allowing it to reach various heights and distances.
●Lift capacity: This type of boom lift has a higher load capacity compared to smaller models. It can lift heavier objects or accommodate multiple workers and their equipment at once.
●Stability and manoeuvrability: Despite its larger size, this boom lift is designed to be stable and easy to manoeuvre. It is equipped with sturdy outriggers to provide stability while working at height, and it has a rotating base that allows it to move in different directions.
| Model | TB61J |
| Size | Metric |
| Maximum Working Height | 63m |
| Maximum Platform Height | 61m |
| Maximum Horizontal Outreach | 26m |

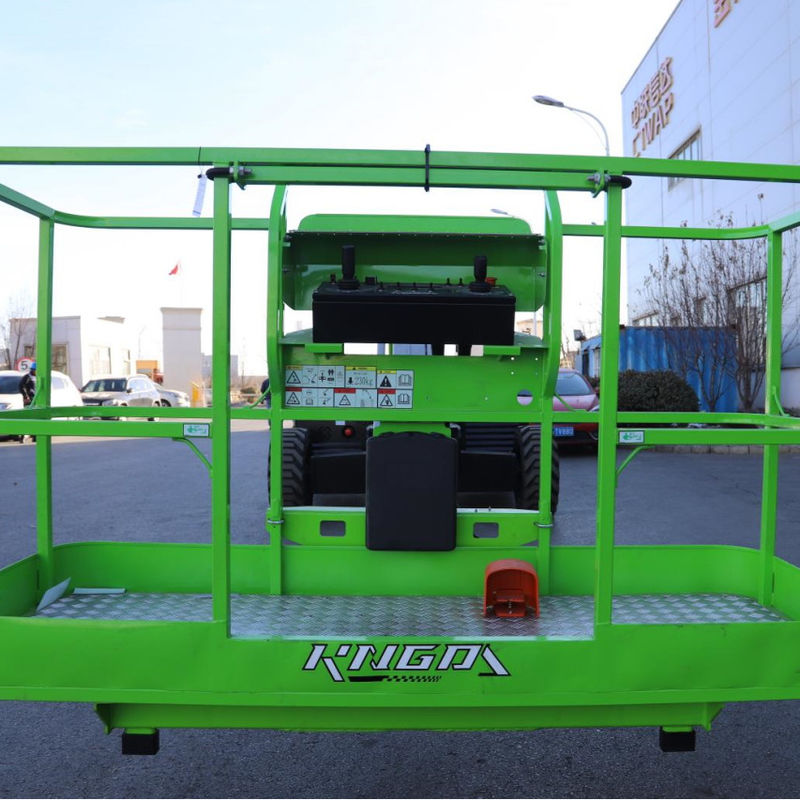

| Platform Size | 2.44X0.91m |
| Length-Stowed(jib stowed/extended) | 16.1m/21.65m |
| Width(axle retracted/extended) | 2.5m/5.1m |
| Height-Stowed | 3.4m |
| Wheelbase | 5.6m |
| Ground Clearance | 0.38m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/300Kg |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 135° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 4.2Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 45% |
| Maximum Working Slope | 5° |
| Turning Radius-inside(axle retracted/extended) | 7.6m/2.69m |
| Turning Radius-outside(axle retracted/extended) | 10m/7.07m |
| Drive &Steer Mode | 4×4×4 |

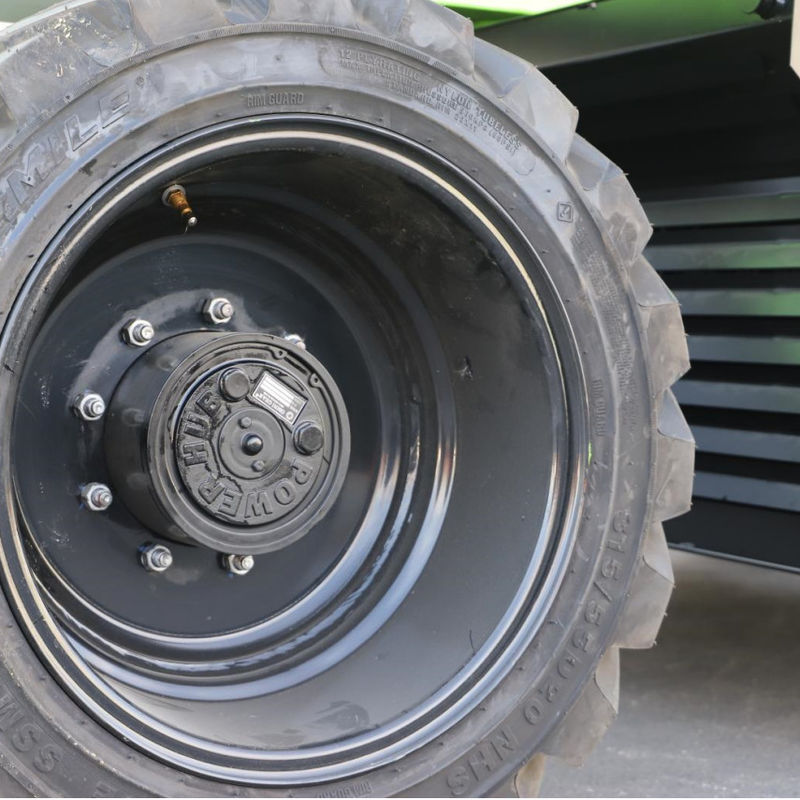

| Tyre Size | 445/65-24 |
| Power | |
| Power Supply | 74Kw@2200rpm |
| Fuel Tank Capacity | 200L |
| Hydraulic Oil Tank Capacity | 300L |
| Control Voltage | 24V |
| Weight | |
| Machine Weight | 28500Kg |
| Standard Compliance | |
| EN280 GB25849 |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
