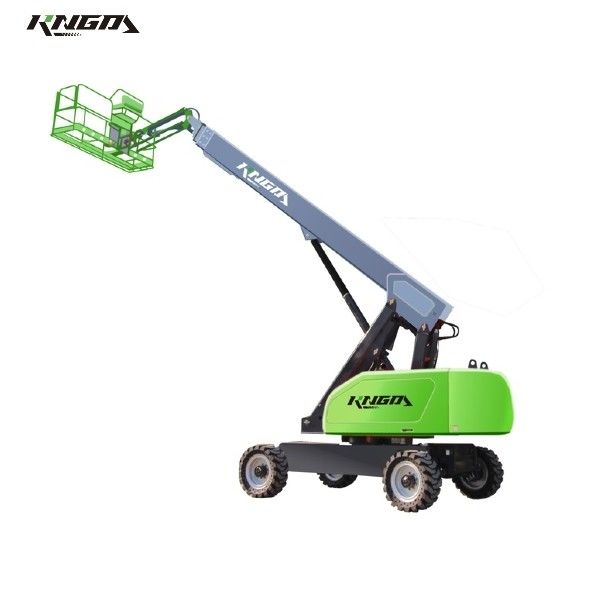

MEWP 21.7m Platform Height Diesel Telescopic Boom Lift

MEWP 21.7m Platform Height Diesel Telescopic Boom Lift

  • High Light

    MEWP Diesel Telescopic Boom Lift


    21.7m Diesel Telescopic Boom Lift


    MEWP Telescopic Boom

  • Working Height
  • Swing
    360 Degrees
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
  • Packaging Details
    Export packing
  • Delivery Time
    60 Days
  • Payment Terms
  • Supply Ability

MEWP 21.7m Platform Height Diesel Telescopic Boom Lift


Platform Height 21.7m Diesel Telescopic Boom Lift



Product Features


1. The compact and robust small-sized diesel telescopic boom lift stands out as a versatile powerhouse, offering a plethora of cutting-edge features.

2. Boasting a seamless telescopic mechanism, this lift sets itself apart by providing effortless and pinpoint height adjustments, guaranteeing unparalleled precision.

3. Setting new standards in safety, it is outfitted with an array of state-of-the-art safety features, prioritizing the operator's well-being above all else.

4. Elevating efficiency to new heights, this lift's larger height and expansive working range make it a top choice for a multitude of job environments, showcasing its unmatched adaptability.

5. Crafted with a winning combination of compactness and unwavering power, this lift excels in completing tasks swiftly and flawlessly, setting a benchmark for efficiency in the industry.

MEWP 21.7m Platform Height Diesel Telescopic Boom Lift 0


Model TB22J
Size Metric
Maximum Working Height 23.7m
Maximum Platform Height 21.7m
Maximum Horizontal Outreach 15.8m
Platform Size 2.44X0.91m
Length-Stowed 9.1m
Width-Stowed 2.5m
Height-Stowed 2.85m
Wheelbase 2.5m
Ground Clearance(Center) 0.41m
Maximum Lifting Capacity 480Kg
Maximum Platform Occupancy 2 pls
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 5km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope
Turning Radius (inside) 2.1m
Turning Radius (outside) 5.4m
Drive &Steer Mode 4X4X2
Tyre Size 36X14-20
Power Supply 36Kw@2400rpm~2600rpm
Fuel Tank Capacity 100L
Hydraulic Oil Tank Capacity 110L
Control Voltage 12V
Machine Weight 10400Kg
Standard Compliance
EN280 GB25849


※ The picture and technical information may vary by the update policy, the changes will be without prior notice.




Company Profile


JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
