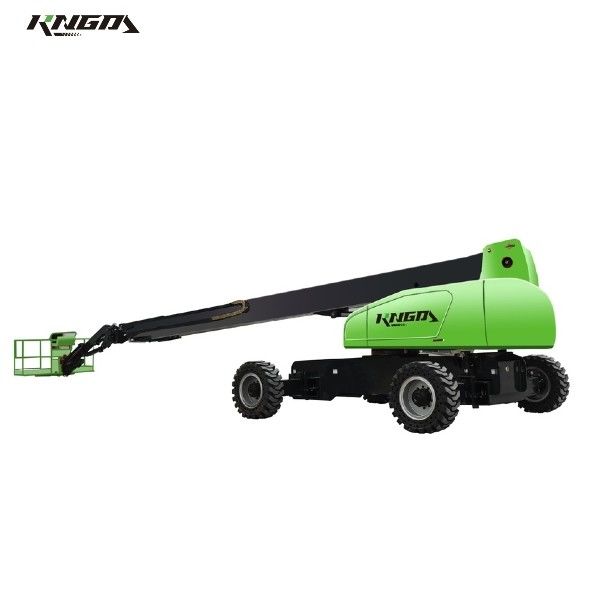

Diesel Telescopic Boom Lift Working Height 48m





Product Features

1. A medium and large diesel telescopic boom lift is a type of machinery used to lift people and equipment to higher levels.

2. It has a telescopic boom that can extend and retract, allowing it to reach different heights.

3. This boom lift is powered by diesel fuel, which provides the necessary energy to operate it.

4. It is designed to be medium to large, making it suitable for tasks that require higher lifting capacities.

5. With its sturdy construction and powerful engine, it can handle heavy loads and provide a stable platform for workers.

6. Overall, this boom lift is a reliable and efficient tool for various construction and maintenance projects.



platform man lift elevator 48m Working Height Hydraulic 0

Model TB46J
Size Metric
Maximum Working Height 48m
Maximum Platform Height 46m
Maximum Horizontal Outreach 24m
Platform Size 2.44X0.91m
Length-Stowed(jib stowed/extended) 13.66m/17.8m
Width(axle retracted/extended) 2.5m/4.21m
Height-Stowed 3.14m
Wheelbase 3.96m
Ground Clearance 0.4m
Performance
Maximum Lifting Capacity/(Non-restricted) 480Kg/300Kg
Platform Rotation ±90°
Vertical Jib Rotation 135°
Turntable Rotation 360°Continuous
Drive Speed-Stowed 4.2Km/h
Drive Speed-Raised 1.1Km/h
Gradeability 45%
Maximum Working Slope 5°
Turning Radius-inside(axle retracted/extended) 3.83m/2.69m
Turning Radius-outside(axle retracted/extended) 6.24m/6.5m
Drive &Steer Mode 4×4×4

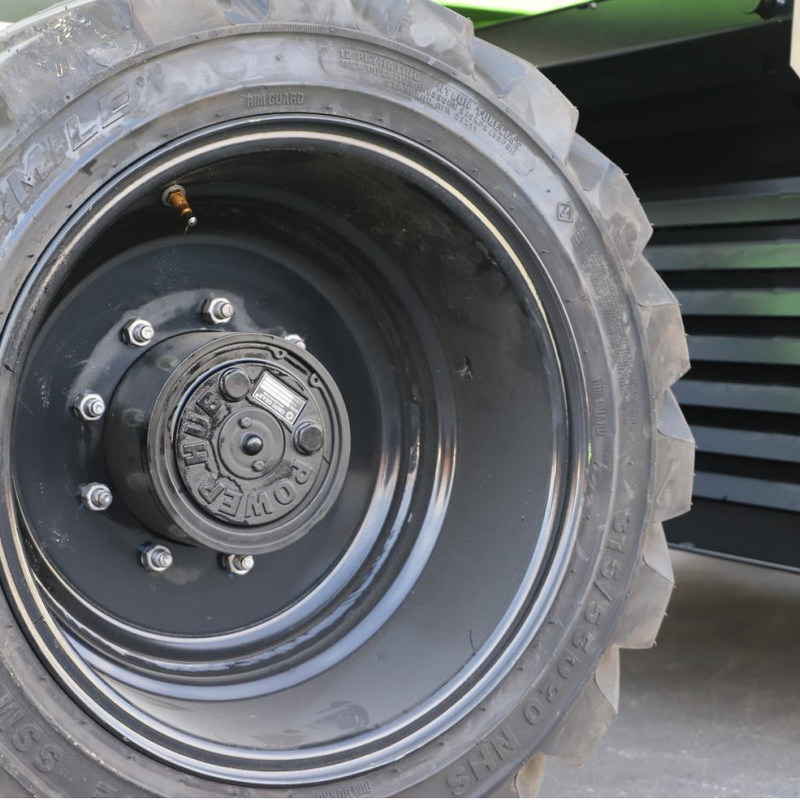

Tyre Size 445/65-24
Power
Power Supply 55Kw@2400rpm~2600rpn
Fuel Tank Capacity 151L
Hydraulic Oil Tank Capacity 250L
Control Voltage 12V
Weight
Machine Weight 23110Kg
Standard Compliance EN280 GB25849



※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
