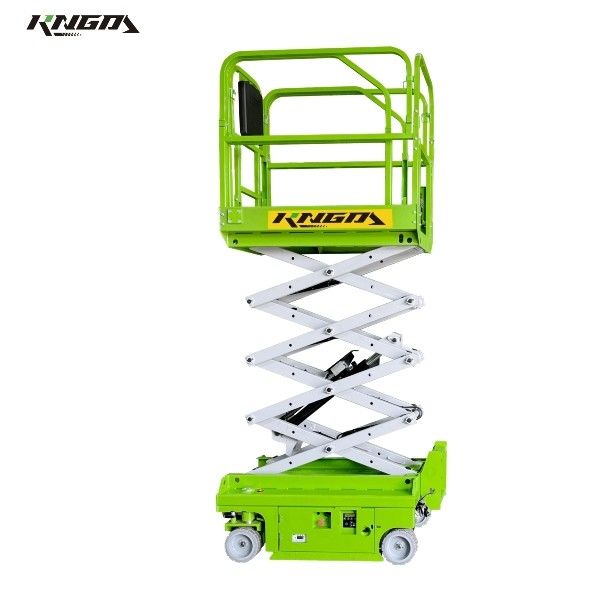

Self-propelled Scissor Lift Working Height 6M Weight 830KG
Product Main Features
- Our machine boasts advanced electrophoresis treatment on its structural components, providing unparalleled anti-corrosion performance that surpasses industry standards.
- Experience elevated efficiency with a heightened working height using several fork arms.
- Embrace the future with electrically driven walking, ensuring a smoother travel experience and enhanced braking stability.
- Achieve maximum equipment efficiency through the innovative double-load system.
- Streamline your operations with standard forklift holes and specially designed lifting points, facilitating effortless equipment loading and unloading.
- The central fork arm's ingeniously crafted design significantly enhances platform stability and comfort.
- Reinforced with high-strength steel in key areas, our product guarantees improved overall strength, ensuring durability and reliability in every application.

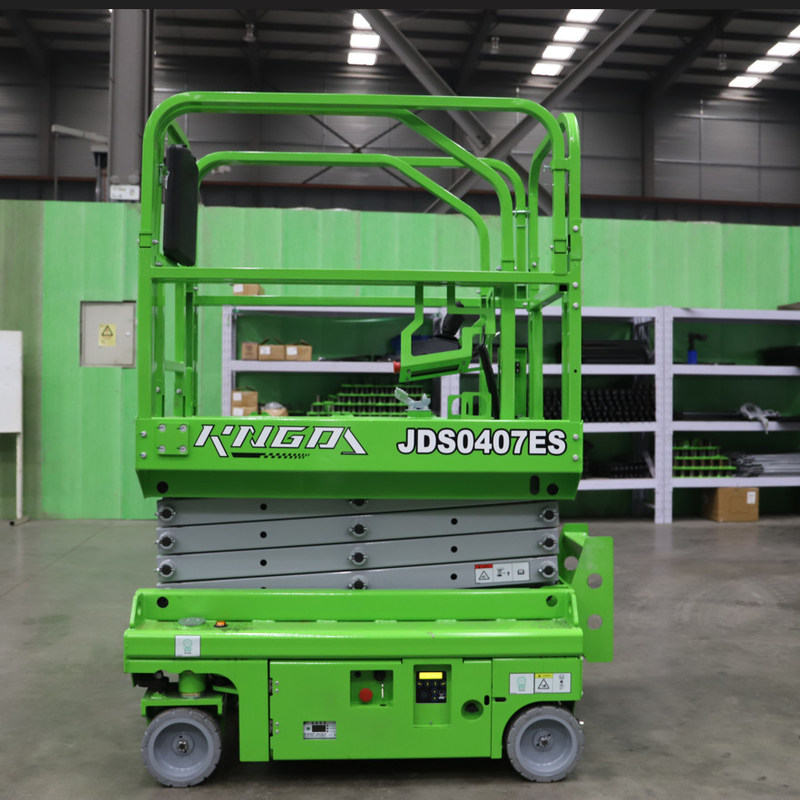

MODEL | JDS0407ES |
Size | Metric |
Maximum Working Height | 5.9m |
Maximum Platform Height | 3.9m |
Platform Height-Stowed | 0.94m |
Platform Length | 1.3m |
Length Extended | 1.9m |
Platform Width | 0.72m |
Rail Height | 1.1m |
Height-Stowed (Rail unfolded) | 1.9m |
Height-Stowed (Rail folded) | / |
Length-Stowed | 1.43m |
Width | 0.76m |
Wheelbase | 1m |
Ground Clearance (Pothole protection lay down) | 0.02m |
Ground Clearance Center | / |
Performance | / |
Platform Occupancy(indoor/outdoor) | 2/1 |
Wind Speed | 12.5m/s |
Platform Capacity | 240Kg |
Extension Platform Capacity | 100Kg |
Drive Speed-Stowed | 4.5Km/h |
Drive Speed-Raised | 0.8Km/h |
Grade ability-Stowed | 25% |
Min Turning Radius-inside | 0.4m |
Min Turning Radius-outside | 1.55m |
Raise/Lower Speed | 20s/24s |
Controls | Proportional control |
Drive | 2-Rear wheels |
Tyre Size | 0.23mx0.08m |
Power | |
Power Supply | 24V DC 2×12V Battery |
Hydraulic Reservoir Capacity | 6L |
Sound & Vibration | |
Sound Pressure Level(ground) | <70dB |
Sound Pressure Level(platform) | <70dB |
Vibration | 2.5m/s² |
Machine Weight | 830kg |
Standards Compliance | EN280 GB/T 25849 |
Standard Configuration | |
Proportional control | Emergency descent system |
Bidirectional extension platform | Automatic braking system |
Emergency stop system | Safety maintenance bracing piece |
Platform self-locking door | 4X2 Double frontal wheel electric drive |
Smart charger | Maintenance Free battery |
Action buzzer | Standard transport forklift holes |
Oil tube explosion-proof system | Solid traceless tyres |
Stroboscope light | Horn |
