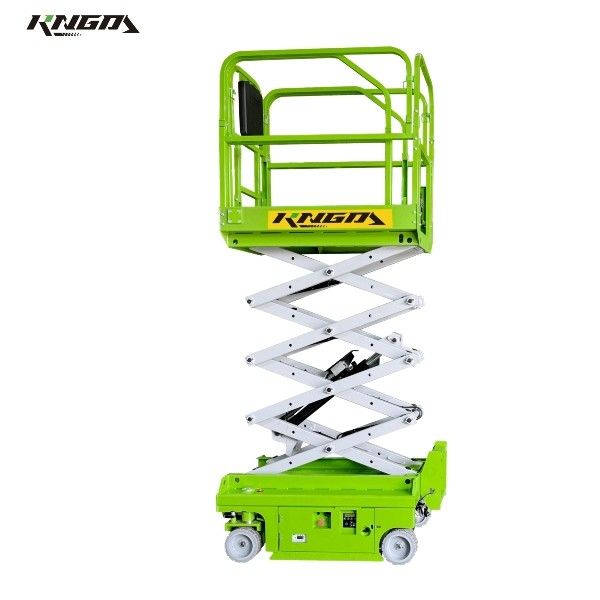

Platform Height 4M Capacity 240kg Self-propelled Scissor Lift
Product Main Features
1. Advanced Corrosion Protection:
- The structural components of the entire machine undergo electrophoresis treatment, providing superior anti-corrosion performance compared to similar products.
2. Enhanced Vertical Reach:
- Achieve a greater working height without increasing the number of fork arms.
3. Efficient and Stable Mobility:
- Experience electrically driven walking for consistently stable travel and reliable braking.
4. Optimized Load Handling:
- Maximize equipment efficiency with a double-load system.
5. Versatile Loading and Unloading:
- Equipped with standard forklift holes and specialized lifting points to facilitate easy equipment loading and unloading.
6. Improved Stability and Comfort:
- The central fork arm design is strategically crafted to enhance both stability and comfort on the platform.
7. High-strength Construction:
- Key components are crafted from high-strength steel, enhancing the overall strength and longevity of the product. application.
![]()

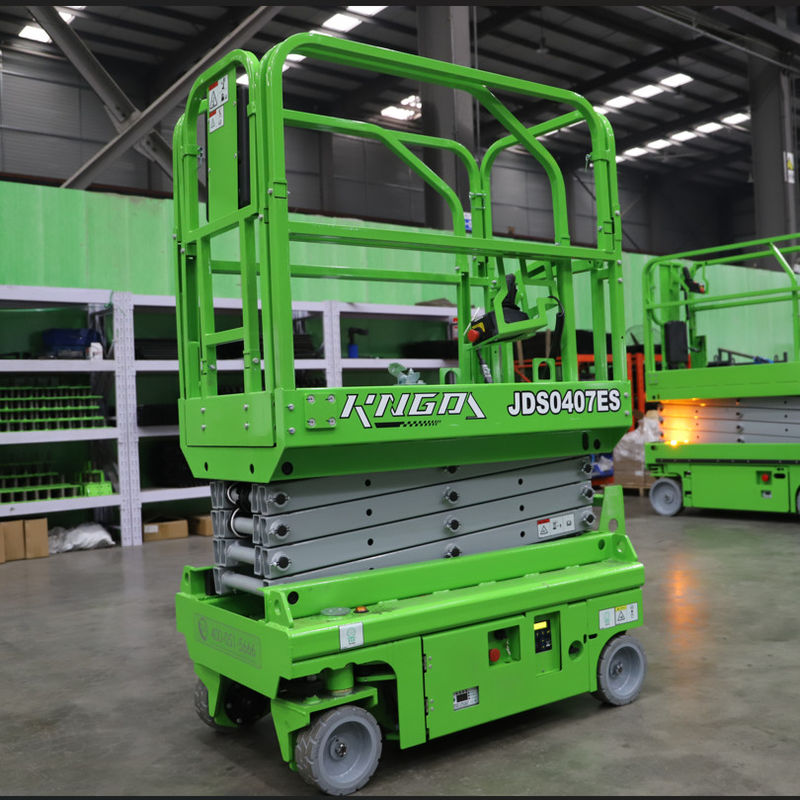

| MODEL | JDS0407ES |
| Size | Metric |
| Maximum Working Height | 5.9m |
| Maximum Platform Height | 3.9m |
| Platform Height-Stowed | 0.94m |
| Platform Length | 1.3m |
| Length Extended | 1.9m |
| Platform Width | 0.72m |
| Rail Height | 1.1m |
| Height-Stowed (Rail unfolded) | 1.9m |
| Height-Stowed (Rail folded) | / |
| Length-Stowed | 1.43m |
| Width | 0.76m |
| Wheelbase | 1m |
| Ground Clearance (Pothole protection lay down) | 0.02m |
| Ground Clearance Center | / |
| Performance | / |
| Platform Occupancy(indoor/outdoor) | 2/1 |
| Wind Speed | 12.5m/s |

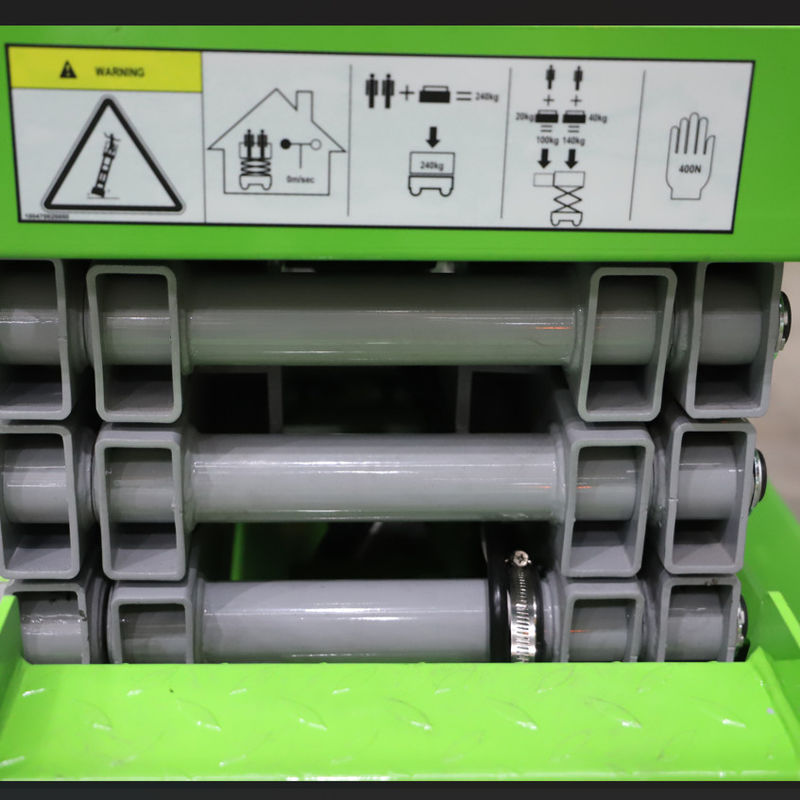

| Platform Capacity | 240Kg |
| Extension Platform Capacity | 100Kg |
| Drive Speed-Stowed | 4.5Km/h |
| Drive Speed-Raised | 0.8Km/h |
| Grade ability-Stowed | 25% |
| Min Turning Radius-inside | 0.4m |
| Min Turning Radius-outside | 1.55m |
| Raise/Lower Speed | 20s/24s |

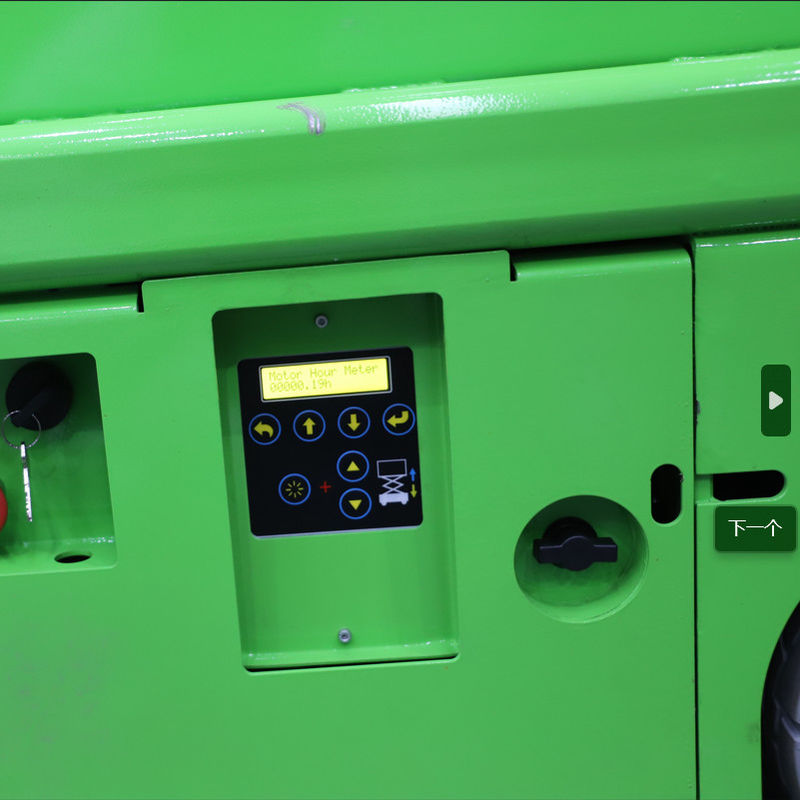

| Controls | Proportional control |
| Drive | 2-Rear wheels |
| Tyre Size | 0.23mx0.08m |
| Power | |
| Power Supply | 24V DC 2×12V Battery |
| Hydraulic Reservoir Capacity | 6L |
| Sound & Vibration | |
| Sound Pressure Level(ground) | <70dB |
| Sound Pressure Level(platform) | <70dB |
| Vibration | 2.5m/s² |
| Machine Weight | 830kg |
| Standards Compliance | EN280 GB/T 25849 |
| Standard Configuration | |
| Proportional control | Emergency descent system |
| Bidirectional extension platform | Automatic braking system |
| Emergency stop system | Safety maintenance bracing piece |
| Platform self-locking door | 4X2 Double frontal wheel electric drive |
| Smart charger | Maintenance Free battery |
| Action buzzer | Standard transport forklift holes |
| Oil tube explosion-proof system | Solid traceless tyres |
| Stroboscope light | Horn |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
